Dissociating mechanisms of heart-voice coupling

Extended results: Heart-expiration coupling

Authors

Affiliations

Marijn Hafkamp

Radboud University Nijmegen, Donders Institute for Brain, Cognition, and Behaviour

Raphael Werner

Donders Institute for Brain, Cognition, and Behaviour

Linda Drijvers

Donders Institute for Brain, Cognition, and Behaviour

Luc Selen

Donders Institute for Brain, Cognition, and Behaviour

Wim Pouw

Tilburg University, Department of Computational Cognitive Science

This is a fully computationally reproducible manuscript written in Rmarkdown. It contains the extended results and supplementary information of “Dissociating mechanisms of heart-voice coupling”. For clarity, the section of the paper corresponding to the code chunks is indicated in the right. Code chunks are hidden by default, but can be made visible by clicking “Show code”. The full dataset is available at the Donders Repository and forms the input for these scripts https://data.ru.nl/collections/di/dcc/DSC_2023.00002_259.

Code

#Local data
localfolder <- "D:/Research_projects/veni_data_local/expire/exp100/"#"This points to your local data that you have downloaded from SURF"

#lets set all the data folders
rawd      <- paste0(localfolder, 'Trials/')    #raw trial level data
procd     <- paste0(localfolder, 'Processed/triallevel/') #processed data folder
procdtot  <- paste0(localfolder, 'Processed/complete_datasets/') #processed data folder
daset     <- paste0(localfolder, 'Dataset/')   #dataset folder
meta      <- paste0(localfolder, 'Meta/')   #Meta and trial data

#load in the trialinfo data (containing info like condition order, trial number etc)
trialf    <- list.files(meta, pattern = 'triallist*')
triallist <- data.frame()
for(i in trialf)
{
  tr        <- read.csv(paste0(meta, i), sep = ';')
  tr$ppn    <- parse_number(i)
  triallist <- rbind.data.frame(triallist,tr)
}

#make corrections to trial list due to experimenter errors
  # p10 trial 21 run with a weight
triallist$weight_condition[triallist$ppn==10 & triallist$trial=="21"] <- 'weight' #triallist$trialindex[triallist$ppn==10 & triallist$trial=="21"]
  # p14 double check trial "51", "52", "53" were all weight condition
triallist$weight_condition[triallist$ppn==14 & triallist$trial%in% c("51", "52", "53")] <- 'weight' #triallist$trialindex[triallist$ppn==14 & triallist$trial%in% c("51", "52", "53")]


#load in the metainfo data (containing info like gender, handedness, etc)
mtf     <- list.files(meta, pattern = 'bodymeta*')
mtlist  <- data.frame()
for(i in mtf)
{
  tr      <- read.csv(paste0(meta, i), sep = ';')
  mtlist  <- rbind.data.frame(mtlist,tr)
}
mtlist$ppn <- parse_number(as.character(mtlist$ppn))

# triallist combines all trial-related CSVs into a single dataframe.
# mtlist combines all metadata from multiple files into a single dataframe
# triallist and mtlist are now in memory and ready to be analyzed in later chunks.

Signal preparation

EMG pre-processing

Rather than filtering the four sEMG signals (erector spinae, infraspinatus, pectoralis major and rectus abdominis) to reduce heart rate artifacts (Drake and Callaghan 2006), we were interested in the reflection of heart rate as present in the sEMG signals. Accordingly, we removed any higher-frequency components from the signal and retained low-frequency bands, while removing the very low components to avoid baseline drift. This was done by high-pass filtering the signal at 0.75 Hz using a zero-phase 4th order Butterworth filter. We then full-wave rectified the EMG signal and applied a zero-phase low-pass 4th order Butterworth filter at 3 Hz. We padded the signals upon filtering to avoid edge effects.

In other words, the pass-band from 0.75 to 3 Hz allowed us to cover any heart rates from 45 to 180 beats per minute.

Code

# load in the data and save it
library(signal)
library(ggrepel)

# preprocessing functions
butter.it <- function(x, samplingrate, order, cutoff, type = "low")
{
  nyquist <- samplingrate/2
  xpad <- c(rep(0, 1000), x, rep(0,1000)) #add some padding
  bf <- butter(order,cutoff/nyquist, type=type)
  xpad <- as.numeric(signal::filtfilt(bf, xpad))
  x <- xpad[1000:(1000+length(x)-1)] #remove the padding
}

#rectify and high and low pass EMG signals
reclow.it <- function(emgsignal, samplingrate, cutoffhigh, cutofflow)
  {
    #high pass filter
    output <- butter.it(emgsignal, samplingrate=samplingrate, order=4, cutoff = cutoffhigh,
                        type = "high")
    #rectify and low pass
    output <<- butter.it(abs(output), samplingrate=samplingrate,  order=4, cutoff= cutofflow,
                        type = "low")
}
###########################################

####################################LOAD IN EMG DATA
EMGdata <- list.files(rawd, pattern = '*Dev_1.csv')
####################################SET common colors for muscles
col_pectoralis    <- '#e7298a'
col_infraspinatus <- '#7570b3'
col_rectus        <- '#d95f02'
col_erector       <- '#1b9e77'
colors_mus <- c("pectoralis major" = col_pectoralis, "infraspinatus" = col_infraspinatus, "rectus abdominis" = col_rectus, "erector spinae" = col_erector)

#show an example
emgd <- read.csv(paste0(rawd, EMGdata[822]))
colnames(emgd) <- c('time_s', 'infraspinatus', 'rectus_abdominis', 'pectoralis_major', 'erector_spinae', 'empty1', 'empty2', 'empty3', 'empty4', 'respiration_belt', 'button_box')
samplingrate <- 1/mean(diff(emgd$time_s))
nyquistemg <- samplingrate/2

When applying the filter as specified above, this is what the sEMG signal looked like for a participant in the no movement condition.

Code

#show another example, now from no movement condition
#we use p18, trial 73
#grep("p18_trial_73_BrainAmpSeries-Dev_1.csv", EMGdata)

emgdnomov <- read.csv(paste0(rawd, EMGdata[824]))
colnames(emgdnomov) <- c('time_s', 'infraspinatus', 'rectus_abdominis', 'pectoralis_major', 'erector_spinae', 'empty1', 'empty2', 'empty3', 'empty4', 'respiration_belt', 'button_box')
samplingrate <- 1/mean(diff(emgdnomov$time_s))
nyquistemg <- samplingrate/2

emgdnomov$time_s <- emgdnomov$time_s-min(emgdnomov$time_s) # normalize time

#example with high-pass filter at 0.75 and low-pass filter 3 Hz
# cutoffhigh = high-pass filter, cutofflow = low-pass filter
emgdnomov$pectoralis_major_sm_h <- reclow.it(emgdnomov$pectoralis_major, samplingrate= samplingrate, cutoffhigh = 0.75, cutofflow = 3)
emgdnomov$infraspinatus_sm_h  <- reclow.it(emgdnomov$infraspinatus, samplingrate= samplingrate, cutoffhigh = 0.75, cutofflow = 3)
emgdnomov$erector_spinae_sm_h  <- reclow.it(emgdnomov$erector_spinae, samplingrate= samplingrate, cutoffhigh = 0.75, cutofflow = 3)
emgdnomov$rectus_abdominis_sm_h  <- reclow.it(emgdnomov$rectus_abdominis, samplingrate= samplingrate, cutoffhigh = 0.75, cutofflow = 3)

#example trial
filteredEMGnomov <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) +
  geom_path(aes(y=infraspinatus_sm_h, color = 'infraspinatus')) +
  geom_path(aes(y=pectoralis_major_sm_h, color = 'pectoralis major')) +
  geom_path(aes(y=rectus_abdominis_sm_h, color = 'rectus abdominis')) +
  geom_path(aes(y=erector_spinae_sm_h, color = 'erector spinae')) +
  ggtitle('Filtered EMG, 0.75-3 Hz') +
  scale_color_manual(values = colors_mus)
filteredEMGnomov <- filteredEMGnomov +
  labs(x = "time in seconds", y = "EMG rectified", color = "Legend") +
  xlab('time in seconds') +
  ylab('EMG rectified') +
  theme_cowplot(12) +
    theme(legend.position = "right")


filteredEMGnomovinfra <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) +
  geom_path(aes(y=infraspinatus_sm_h, color = 'infraspinatus')) +
  ggtitle('infraspinatus') +
  scale_color_manual(values = colors_mus) +
  labs(x = "time in seconds", y = "EMG rectified", color = "Legend") +
  xlab('time in seconds') +
  ylab('EMG rectified') +
  ylim(0, 150) +
  theme_cowplot(12) +
  theme(legend.position = "none")

filteredEMGnomovpec <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) +
  geom_path(aes(y=pectoralis_major_sm_h, color = 'pectoralis major')) +
  ggtitle('pectoralis major') +
  scale_color_manual(values = colors_mus) +
  labs(x = "time in seconds", y = "EMG rectified", color = "Legend") +
  xlab('time in seconds') +
  ylab('EMG rectified') +
  ylim(0, 150) +
  theme_cowplot(12) +
  theme(legend.position = "none")

filteredEMGnomovrectus <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) +
  geom_path(aes(y=rectus_abdominis_sm_h, color = 'rectus abdominis')) +
  ggtitle('rectus abdominis') +
  scale_color_manual(values = colors_mus) +
  labs(x = "time in seconds", y = "EMG rectified", color = "Legend") +
  xlab('time in seconds') +
  ylab('EMG rectified') +
  ylim(0, 150) +
  theme_cowplot(12) +
  theme(legend.position = "none")

filteredEMGnomoverector <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) +
  geom_path(aes(y=erector_spinae_sm_h, color = 'erector spinae')) +
  ggtitle('erector spinae') +
  scale_color_manual(values = colors_mus) +
  labs(x = "time in seconds", y = "EMG rectified", color = "Legend") +
  xlab('time in seconds') +
  ylab('EMG rectified') +
  ylim(0, 150) +
  theme_cowplot(12) +
    theme(legend.position = "none")

Example of heart rate/ECG signal’s presence in the four different sEMG signals. This example is from the no movement condition.

Fig.@ref(fig:EMGnomovsmoothing) shows the four different, filtered sEMG signals in one plot. To further inspect, which ones are more apt for studying heart rate, we have separated the signals in Fig.@ref(fig:EMGnomovsmoothingseparate).As becomes clear from these graphs, both the pectoralis major and rectus abdominis signals clearly reflect the cardiac activity.

Warning: Removed 128 rows containing missing values or values outside the scale range
(`geom_path()`).

Example of heart rate/ECG signal’s presence in the sEMG signals. The plot shows the raw rectified high-pass filtered EMG. This example shows a no movement. The heart rate peaks are especially visible in the sEMG of the pectoralis major and the rectus abdominis, and less strongly in erector spinae and infraspinatus. The latter are attached on the participant’s back and more distant to the heart.

Acoustics pre-processing

For acoustics we extracted the smoothed amplitude envelope. For the envelope we applied a Hilbert transform to the waveform signal of the vocal intensity, then took the complex modulus to create a 1D time series, which we then resampled at 2,500 Hz, and smoothed with a Hann filter based on a Hanning Window of 12 Hz. We normalized the amplitude envelope signals within participants before submitting to analyses.

Code

library(rPraat) #for reading in sounds
library(dplR)   #for applying Hanning
library(seewave) #for signal processing general
library(wrassp) #for acoustic processing

##################### MAIN FUNCTION TO EXTRACT SMOOTHED ENVELOPE ###############################
amplitude_envelope.extract <- function(locationsound, smoothingHz, resampledHz)
{
  #read the sound file into R
  snd <- rPraat::snd.read(locationsound)
  #apply the hilbert on the signal
  hilb <- seewave::hilbert(snd$sig, f = snd$fs, fftw =FALSE)
  #apply complex modulus
  env <- as.vector(abs(hilb))
  #smooth with a hanning window
  env_smoothed <- dplR::hanning(x= env, n = snd$fs/smoothingHz)
  #set undeterminable at beginning and end NA's to 0
  env_smoothed[is.na(env_smoothed)] <- 0
  #resample settings at desired sampling rate
  f <- approxfun(1:(snd$duration*snd$fs),env_smoothed)
  #resample apply
  downsampled <- f(seq(from=0,to=snd$duration*snd$fs,by=snd$fs/resampledHz))
  #let function return the downsampled smoothed amplitude envelope
  return(downsampled[!is.na(downsampled)])
}

Data aggregation

All signals were sampled at, or upsampled to, 2,500 Hz. Then we aggregated the data by aligning time series in a combined by-trial format to increase ease of combined analyses. We linearly interpolated signals when sample times did not align perfectly.

Code

library(pracma)
library(zoo)

overwrite = FALSE

#lets loop through the triallist and extract the files
triallist$uniquetrial <- paste0(triallist$trialindex, '_', triallist$ppn)
  #remove duplicates so that we ignore repeated trials
howmany_repeated <- sum(duplicated(triallist$uniquetrial))
triallist <- triallist[!duplicated(triallist$uniquetrial),]


for(ID in triallist$uniquetrial)
{
  #print(paste0('working on ', ID))
  #debugging
  #ID <- triallist$uniquetrial[27] #I commented that out bc it was so many lines

  triallist_s <- triallist[triallist$uniquetrial==ID,]
  ##load in row triallist
  pp <- triallist_s$ppn
  pps <- triallist_s$ppn
  if((pp == '41') | (pp == '42')){pps <- '4'}
  gender <- mtlist$sex[mtlist$ppn==pps]
  hand   <- mtlist$handedness[mtlist$ppn==pps]
  triali <- triallist_s$trialindex

  if(!file.exists(paste0(procd, 'pp_', pp, '_trial_', triali, '_aligned.csv')) | overwrite == TRUE)
  {
  ######load in EMG and resp belt
    EMGr <- read.csv(paste0(rawd, 'p', pp, '_trial_',triali, '_BrainAmpSeries-Dev_1.csv'))
    channels <- c('time_s', 'infraspinatus', 'rectus_abdominis', 'pectoralis_major', 'erector_spinae', 'empty1', 'empty2', 'empty3', 'empty4', 'respiration_belt', 'button_box')
    colnames(EMGr) <- channels
    #only keep the relevant vectors
    EMGr <- cbind.data.frame(EMGr$time_s,EMGr$respiration_belt, EMGr$infraspinatus,
                             EMGr$rectus_abdominis,EMGr$pectoralis_major, EMGr$erector_spinae)
    colnames(EMGr) <- channels[c(1, 10, 2, 3, 4, 5)] #rename
    EMGsamp <- 1/mean(diff(EMGr$time_s-min(EMGr$time_s)))
    #smooth
      #note the respiration belt is not installed now, but if we resolve technical issues we might add it
    EMGr$respiration_belt <- butter.it(EMGr$respiration_belt, samplingrate = EMGsamp, order = 2, cutoff = 30)
      #smooth EMG with described settings
    EMGr[,3:6] <- apply(EMGr[,3:6], 2, function(x) reclow.it(scale(x, scale = FALSE, center =TRUE), samplingrate= EMGsamp, cutoffhigh = 0.75, cutofflow = 3))#this was changed for getting heart from EMG; used to be high = 30, low = 20

#CHANGECONF we center before we smooth now
#########load in acoustics
  locsound <- paste0(rawd, 'p', pp, '_trial_',triali, '_Micdenoised.wav')
  if(!file.exists(locsound)){print(paste0('this mic file does not exist: ', locsound))}
  if(file.exists(locsound)){


  env <- amplitude_envelope.extract(locationsound=locsound, smoothingHz =  12, resampledHz = 2500)
  acoustics <- cbind.data.frame(env)
  acoustics$f0 <- NA
  acoustics$time_s <- seq(0, (nrow(acoustics)-1)*1/2500, 1/2500)
  duration_time <- (max(acoustics$time_s)-min(acoustics$time_s)) #note down duration time of this trial
  #########load in motion
  mt <- read.csv(paste0(rawd, 'p', pp, '_trial_',triali, '_video_raw_body.csv'))
  if(hand == 'r'){mov <- cbind.data.frame(mt$X_RIGHT_WRIST, mt$Y_RIGHT_WRIST, mt$Z_RIGHT_WRIST)}  #CHANGECONF change we also take depth
  if(hand == 'l'){mov <- cbind.data.frame(mt$X_LEFT_WRIST, mt$Y_LEFT_WRIST, mt$Z_RIGHT_WRIST)}    #CHANGECONF we also take depth
  colnames(mov) <- c('x_wrist', 'y_wrist', 'z_wrist')
  mov$y_wrist <- mov$y_wrist*-1 #flip axes so that higher up means higher values (check)
  #filter movements
  mov[,1:3] <- apply(mov[,1:3], 2, FUN=function(x) butter.it(x, order=4, samplingrate = 60, cutoff = 10, type='low'))

  #########load in balanceboard
  bb <- read.csv(paste0(rawd, 'p', pp, '_trial_',triali, '_BalanceBoard_stream.csv'))
  colnames(bb) <- c('time_s', 'left_back', 'right_forward', 'right_back', 'left_forward')
  bbsamp <- 1/mean(diff(bb$time_s - min(bb$time_s)))
  bb[,2:5] <- apply(bb[,2:5], 2, function(x) sgolayfilt(x, 5, 51))
  COPX  <- (bb$right_forward+bb$right_back)-(bb$left_forward+bb$left_back)
  COPY  <- (bb$right_forward+bb$left_forward)-(bb$left_back+bb$left_back)
  bb$COPXc <- sgolayfilt(c(0, diff(COPX)), 5, 51)
  bb$COPYc <-  sgolayfilt(c(0, diff(COPY)), 5, 51)
  bb$COPc <- sqrt(bb$COPXc^2 + bb$COPYc^2)
  #########combine everything
    #combined acoustics and EMG(+resp)
  EMGr$time_ss <- EMGr$time_s-min(EMGr$time_s)
  ac_emg <- merge(acoustics, EMGr, by.x = 'time_s', by.y = 'time_ss', all=TRUE)
  ac_emg[,4:ncol(ac_emg)] <- apply(ac_emg[,4:ncol(ac_emg)], 2, function(y) na.approx(y, x=ac_emg$time_s, na.rm = FALSE))
  #do this only for 4 EMG, name them
  ac_emg <- ac_emg[!is.na(ac_emg$env),]
  ac_emg$time_s <- ac_emg$time_s + min(ac_emg[,4],na.rm=TRUE) #get the original time
  ac_emg <- ac_emg[!is.na(ac_emg$time_s),-4] #remove the centered time variable, and remove time NA at the end
    #now add balance board
  ac_emg_bb <- merge(ac_emg, bb[,c(1, 6:8)], by.x='time_s', by.y='time_s', all= TRUE)
  ac_emg_bb[,9:11] <- apply(ac_emg_bb[,9:11], 2, function(y) na.approx(y, x=ac_emg_bb$time_s, na.rm = FALSE))
  ac_emg_bb <- ac_emg_bb[!is.na(ac_emg_bb$env), ]
  ac_emg_bb <- ac_emg_bb[!is.na(ac_emg_bb$time_s),-4]
    #now add the final motion (which is thereby upsampled to 2500 hertz)
  start_time <- min(ac_emg_bb$time_s,na.rm=TRUE)
  mov$time_s <-   start_time+seq(0, duration_time-(duration_time /nrow(mov)), by= duration_time /nrow(mov))
  ac_emg_bb_m <- merge(ac_emg_bb, mov, by.x='time_s', by.y='time_s', all = TRUE)
  ac_emg_bb_m[,11:13] <- apply(ac_emg_bb_m[,11:13], 2, function(y) na.approx(y, x=ac_emg_bb_m$time_s, na.rm = FALSE))
  ac_emg_bb_m <- ac_emg_bb_m[!is.na(ac_emg_bb_m$env), ]
  #now write the files away to a processed folder
  write.csv(ac_emg_bb_m, paste0(procd, 'pp_', pp, '_trial_', triali, '_heartrate', '_aligned.csv')) #added heartrate to the name, so it doesn't create problems with the other files
    }
  }
}

Detrending and normalization

Note that there is a general decline in the amplitude of the vocalization during a trial (see Fig. @ref(fig:combinedtimeseries), top panel). This is to be expected, as the subglottal pressure falls when the lungs deflate. To quantify deviations from stable vocalizations, we therefore detrended the amplitude envelope time series, so as to assess positive or negative peaks relative to this trend line.

Moreover, we normalized the amplitude and the two sEMG signals using the mean and standard deviation from the middle section, i.e. 1 to 6 s, which we also used in most of the analyses here. This provides a better scaling, as the times outside of that range can have quite high/low values.

Code

#We have to do some within participant scaling, such that
  #all EMG's are rescaled within trials
fs <-  list.files(procd)
fs <- fs[!fs%in%list.files(procd, pattern = 'zscal_*')]
fs <- fs[fs%in%list.files(procd, pattern = "heartrate")]

#set to true if you want to overwrite files (to check [modified] code)
overwrite = FALSE

if((length(list.files(procd, pattern = 'zscal_*')) == 0) | (overwrite==TRUE))
{
  mr <- data.frame()
  for(f in fs)
  {
    temp <- read.csv(paste0(procd, f))
    temp$pp <- parse_number(f)
    temp$tr <- f
    mr <- rbind.data.frame(mr, temp)
  }

  #set ppn to 4
  temp$pp[temp$pp==41 | temp$pp==42] <- 4

  # #center the muscle measurements for each trial (due to drift)
  # mr$infraspinatus <- ave(mr$infraspinatus, mr$tr, FUN = function(x){x<-x-mean(x, na.rm=TRUE)})
  # mr$rectus_abdominis <- ave(mr$rectus_abdominis, mr$tr, FUN = function(x){x<-x-mean(x, na.rm=TRUE)})
  # mr$pectoralis_major <- ave(mr$pectoralis_major, mr$tr, FUN = function(x){x<-x-mean(x, na.rm=TRUE)})
  # mr$erector_spinae <- ave(mr$erector_spinae, mr$tr, FUN = function(x){x<-x-mean(x, na.rm=TRUE)})

  #we normalize signals by trial and detrend the 2 EMG signals; we will normalize them by the part from 1 to 6 s, for which we first need the time


  #save the scaled variables in new objects
  for(f in unique(mr$tr))
  {
    sb <- mr[mr$tr==f, ]
    sb$time_s  <- sb$time_s #this is the time
    sb$time_s_c <- sb$time_s-min(sb$time_s)# accumulating at trial start (resyncing) resynced with the psychopy  software

  #detrend
  sb$rectus_abdominis <- ave(sb$rectus_abdominis, sb$tr, FUN = function(x){pracma::detrend(x, tt = 'linear')})
  sb$pectoralis_major <- ave(sb$pectoralis_major, sb$tr, FUN = function(x){pracma::detrend(x, tt = 'linear')})

  #use mean and sd from 1 to 6 s for scaling
  sbscale <- sb %>%
     dplyr::filter(time_s_c > 1 & time_s_c < 6)
  rectus_mean <- mean(sbscale$rectus_abdominis)
  rectus_sd <- sd(sbscale$rectus_abdominis)
  pectoralis_mean <- mean(sbscale$pectoralis_major)
  pectoralis_sd <- sd(sbscale$pectoralis_major)

  #now scale & center the 2 EMG signals by using these values
  sb$rectus_abdominis <- ave(sb$rectus_abdominis, sb$tr, FUN = function(x){x <- (x - rectus_mean) / rectus_sd})
  sb$pectoralis_major <- ave(sb$pectoralis_major, sb$tr, FUN = function(x){x <- (x - pectoralis_mean) / pectoralis_sd})
  # scale env
  sb$env_z <- ave(sb$env, sb$tr, FUN = function(x)scale(x, center = T))
  # write away
  write.csv(sb, paste0(procd, 'zscal_', f))
  }
}

Fig.@ref(fig:combinedtimeseriesnomov) shows the vocal amplitude and two EMG signals (pectoralis major, rectus abdominis) for participant 8 in the no movement condition.

Code

#ptest=8
ex3 <- triallist %>%
  dplyr::filter(vocal_condition == "expire") %>%
  dplyr::filter(movement_condition == "no_movement") %>%
  dplyr::filter(ppn == 8)
ex3 <- ex3[2, ]

if (file.exists(paste0(procd, 'zscal_pp_', ex3$ppn, '_trial_', ex3$trialindex, '_heartrate_aligned.csv')))
{
  exts3 <- read.csv(paste0(procd, 'zscal_pp_', ex3$ppn, '_trial_', ex3$trialindex, '_heartrate_aligned.csv'))
  exts3 <- subset(exts3, time_s_c > 1 & time_s_c < 6)
  exts3 <- exts3[seq(1, nrow(exts3), by = 5), ]
  exts3$time_ms <- round(exts3$time_s_c*1000)

  # Compute detrended and scaled envelope
  env_detrended <- pracma::detrend(exts3$env_z, tt = 'linear')
  exts3$env_z_detrend_scaled <- scale(env_detrended)

  # PLOT 1: Time series - NON-DETRENDED
  examplenomov <- ggplot(exts3, aes(x=time_ms)) +
    geom_path(aes(y=scale(pectoralis_major), color = 'pectoralis major')) +
    geom_path(aes(y=scale(env_z)), color="black") +
    geom_smooth(aes(y=scale(env_z)), method='lm', linetype = 'dashed',color = 'black') +
    scale_color_manual(values = colors_mus) +
    scale_y_continuous(
      name = "EMG",
      sec.axis = sec_axis(~., name="Vocal amplitude")
    ) +
    theme_cowplot(12) +
    theme(legend.position = "none") +
    geom_hline(yintercept= 0) +
    xlab('Time (ms)') +
    ggtitle('Non-detrended')

  # PLOT 2: Time series - DETRENDED AND Z-SCALED
  examplenomov_detrend <- ggplot(exts3, aes(x=time_ms)) +
    geom_path(aes(y=scale(pectoralis_major), color = 'pectoralis major')) +
    geom_path(aes(y=env_z_detrend_scaled), color="black") +
    geom_smooth(aes(y=env_z_detrend_scaled), method='lm', linetype = 'dashed',color = 'black') +
    scale_color_manual(values = colors_mus) +
    scale_y_continuous(
      name = "EMG",
      sec.axis = sec_axis(~., name="Vocal amplitude (detrended)")
    ) +
    theme_cowplot(12) +
    theme(legend.position = "none") +
    geom_hline(yintercept= 0) +
    xlab('Time (ms)') +
    ggtitle('Detrended and z-scaled')

  # Combine and print
  combined_plot <- plot_grid(examplenomov, examplenomov_detrend,
                             ncol = 1, align = "v")
}

Example trial showing no movement and the EMG signals for pectoralis major and rectus abdominis.

Code

#just inserted the cache.lazy, because I could not knit (long vectors not supported yet)

overwrite = FALSE

if(overwrite==TRUE)
{
#filter out all trials related to movement, expiration, or practice
triallist_nomov <- triallist %>%
  dplyr::filter(movement_condition == "no_movement") %>%
  dplyr::filter(vocal_condition == "expire") %>%
  dplyr::filter(trial_type == "main")
tr_wd_nomov <- triallist_nomov
tr_wd_nomov$highest_veloc_peak_time <- NA

#lets loop through the triallist and extract the files
tr_wd_nomov$uniquetrial <- paste0(tr_wd_nomov$trialindex, '_', triallist_nomov$ppn)
  #remove duplicates so that we ignore repeated trials #NOTE in total we registered 25 repeats
howmany_repeated <- sum(duplicated(tr_wd_nomov$uniquetrial))
tr_wd_nomov <- tr_wd_nomov[!duplicated(tr_wd_nomov$uniquetrial),]

#make one large dataset
tsl <- data.frame()
tsl_fulltime <- data.frame() #this one exists so we have EMG signals without the time constraints (1-6s) we need for the detrending in the other one

for(ID in tr_wd_nomov$uniquetrial)
{
  #ID <- tr_wd$uniquetrial[27]
  tr_wd_s <- tr_wd_nomov[tr_wd_nomov$uniquetrial==ID,]

  ##load in row tr_wd
  pp <- tr_wd_s$ppn
  gender <- mtlist$sex[mtlist$ppn==pp]
  hand   <- mtlist$handedness[mtlist$ppn==pp]
  triali <- tr_wd_s$trialindex
  if(file.exists(paste0(procd, 'zscal_pp_', pp, '_trial_', triali, '_heartrate_aligned.csv')))
  {
  ts <- read.csv(paste0(procd, 'zscal_pp_', pp, '_trial_', triali, '_heartrate_aligned.csv'))

  ts$time_ms <- round(ts$time_s*1000)
  ts$time_ms <- ts$time_ms-min(ts$time_ms)
  ts$uniquetrial <- paste0(triali, "_", pp)

### before detrending, we want to find the onset of vocalization, for which we use the peak velocity of the envelope

#get velocity first
  ts$env_z_veloc <- c(0, diff(ts$env_z))

#then get the peaks
  velocitypeaks <- pracma::findpeaks(ts$env_z_veloc)
  highest_veloc_peak <- velocitypeaks[which.max(velocitypeaks[, 1])]  #find highest peak in col 1
  corresponding_time_index <- which(ts$env_z_veloc == highest_veloc_peak)[1] #find index of that highest peak in velocity data
  tr_wd_nomov$highest_veloc_peak_time[tr_wd_nomov$uniquetrial==ID] <- ts$time_ms[corresponding_time_index] #use that index to extract time value from dataframe

#now find peaks in rectus & pectoralis EMG signal
  #start with rectus
  rectuspeaks <- pracma::findpeaks(ts$rectus_abdominis) #find peaks in rectus signal
  rectuspeak_times <- numeric(length(rectuspeaks[, 1])) #create a vector length of number of peaks
  for (i in seq_len(nrow(rectuspeaks))) { #find the according peak times
    peak_index <- rectuspeaks[i, 2]
    rectuspeak_times[i] <- ts$time_ms[peak_index]
  }

  #now do the same for pectoralis
  pectoralispeaks <- pracma::findpeaks(ts$pectoralis_major) #find peaks in pectoralis signal
  pectoralispeak_times <- numeric(length(pectoralispeaks[, 1])) #create a vector length of number of peaks
  for (i in seq_len(nrow(pectoralispeaks))) { #find the according peak times
    peak_index <- pectoralispeaks[i, 2]
    pectoralispeak_times[i] <- ts$time_ms[peak_index]
  }

  #drop columns not needed for the analysis done here (heart rate)
  ts <- ts %>%
    select(!c(X.1, X, f0, time_s, infraspinatus, erector_spinae, COPXc, COPYc, COPc, x_wrist, y_wrist, z_wrist))

  subts <- ts
  subts$movement_condition <- tr_wd_s$movement_condition
  subts$vocal_condition <- tr_wd_s$vocal_condition
  subts$weight_condition <- tr_wd_s$weight_condition
  subts$trial_number <-  tr_wd_s$trialindex

  #store this in tsl_fulltime, which we need for EMG calculations without time restrictions
  tsl_fulltime <- rbind(tsl_fulltime, subts)

  #now create tsl, where we shorten the time span, so we can detrend
  #take the first 1 to 6 seconds
  ts <- ts[(ts$time_ms>1000) & (ts$time_ms < 6000), ]

  ts$env_z_detrend <- pracma::detrend(ts$env_z, tt = 'linear') # detrend the envelope

  subts <- ts
  subts$movement_condition <- tr_wd_s$movement_condition
  subts$vocal_condition <- tr_wd_s$vocal_condition
  subts$weight_condition <- tr_wd_s$weight_condition
  subts$trial_number <-  tr_wd_s$trialindex

  #bind into big dataset
  tsl <- rbind(tsl, subts)

  tsl <- tsl %>%
    dplyr::filter(movement_condition == "no_movement")
  #to make it faster, we here filter by movement condition == no movement, since we're only using that one here anyways

  }
}

#write to file if overwrite == T
write.csv(tr_wd_nomov, paste0(procdtot, 'fulldata_heartrate.csv'))
write.csv(tsl, paste0(procdtot, 'time_series_all_heartrate.csv'))
write.csv(tsl_fulltime, paste0(procdtot, 'time_series_all_heartrate_fulltime.csv'))

}
#read this in
if(overwrite==FALSE)
{
  tr_wd_nomov <- read.csv(paste0(procdtot, 'fulldata_heartrate.csv'))
  tsl   <- read.csv(paste0(procdtot, 'time_series_all_heartrate.csv'))
  tsl_fulltime <-read.csv(paste0(procdtot, 'time_series_all_heartrate_fulltime.csv'))
}

tsl_fulltime <- tsl_fulltime %>%
  dplyr::filter(movement_condition == "no_movement")
tsl_fulltime$pectoralis_major[is.na(tsl_fulltime$pectoralis_major)] <- 0 #there are some trailing NA's which we fill with 0
tsl_fulltime$rectus_abdominis[is.na(tsl_fulltime$rectus_abdominis)] <- 0

tr_wd_nomov$ppn <- ifelse(tr_wd_nomov$ppn%in%c(41, 42), 4, tr_wd_nomov$ppn)

Code

nomovement <- tsl %>%
  dplyr::filter(vocal_condition == "expire") %>%
  dplyr::filter(movement_condition == "no_movement")

nomovement <- nomovement %>%
  mutate(pptrial = stringr::str_replace(uniquetrial, "(\\d+)_+(\\d+)", "\\2_\\1"))

#example trial
filteredEMGnomovdetrended <- ggplot(nomovement[seq(1, nrow(nomovement),by=5),], aes(x=time_ms, group = tr)) +
  geom_path(aes(y=pectoralis_major, color = 'pectoralis major')) +
  geom_path(aes(y=rectus_abdominis, color = 'rectus abdominis')) +
  ggtitle('Filtered EMG, 0.5-5 Hz') +
  scale_color_manual(values = colors_mus)
filteredEMGnomov <- filteredEMGnomov +
  labs(x = "time in seconds", y = "EMG rectified", color = "Legend") +
  xlab('time in seconds') +
  ylab('EMG rectified') +
  theme_cowplot(12) +
    theme(legend.position = "right")


filteredEMGnomovpec <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) +
  geom_path(aes(y=pectoralis_major_sm_h, color = 'pectoralis major')) +
  ggtitle('pectoralis major') +
  scale_color_manual(values = colors_mus) +
  labs(x = "time in seconds", y = "EMG rectified", color = "Legend") +
  xlab('time in seconds') +
  ylab('EMG rectified') +
  ylim(0, 150) +
  theme_cowplot(12) +
  theme(legend.position = "none")

filteredEMGnomovrectus <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) +
  geom_path(aes(y=rectus_abdominis_sm_h, color = 'rectus abdominis')) +
  ggtitle('rectus abdominis') +
  scale_color_manual(values = colors_mus) +
  labs(x = "time in seconds", y = "EMG rectified", color = "Legend") +
  xlab('time in seconds') +
  ylab('EMG rectified') +
  ylim(0, 150) +
  theme_cowplot(12) +
  theme(legend.position = "none")

As a next step, we plotted all detrended amplitude envelopes, as well as all sEMG signals of the pectoralis major and the rectus abdominis.

Code

nomovement$pp <- as.factor(nomovement$pp)

allenvelopes <- ggplot(nomovement, aes(x=time_ms)) +
  geom_path(aes(y=env_z_detrend, color=pp)) +  scale_y_continuous(name = "expiration noise amplitude (normalized)") +
  theme_cowplot(12) +
  theme(legend.position = c(0.8, 1)) +
  geom_hline(yintercept= 0) +
  xlim(1000, 6000) +
  xlab('time (ms)') +
  theme(legend.position = "none",
        axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) +
  facet_wrap(~pptrial) +
  scale_colour_viridis_d(option = "plasma")

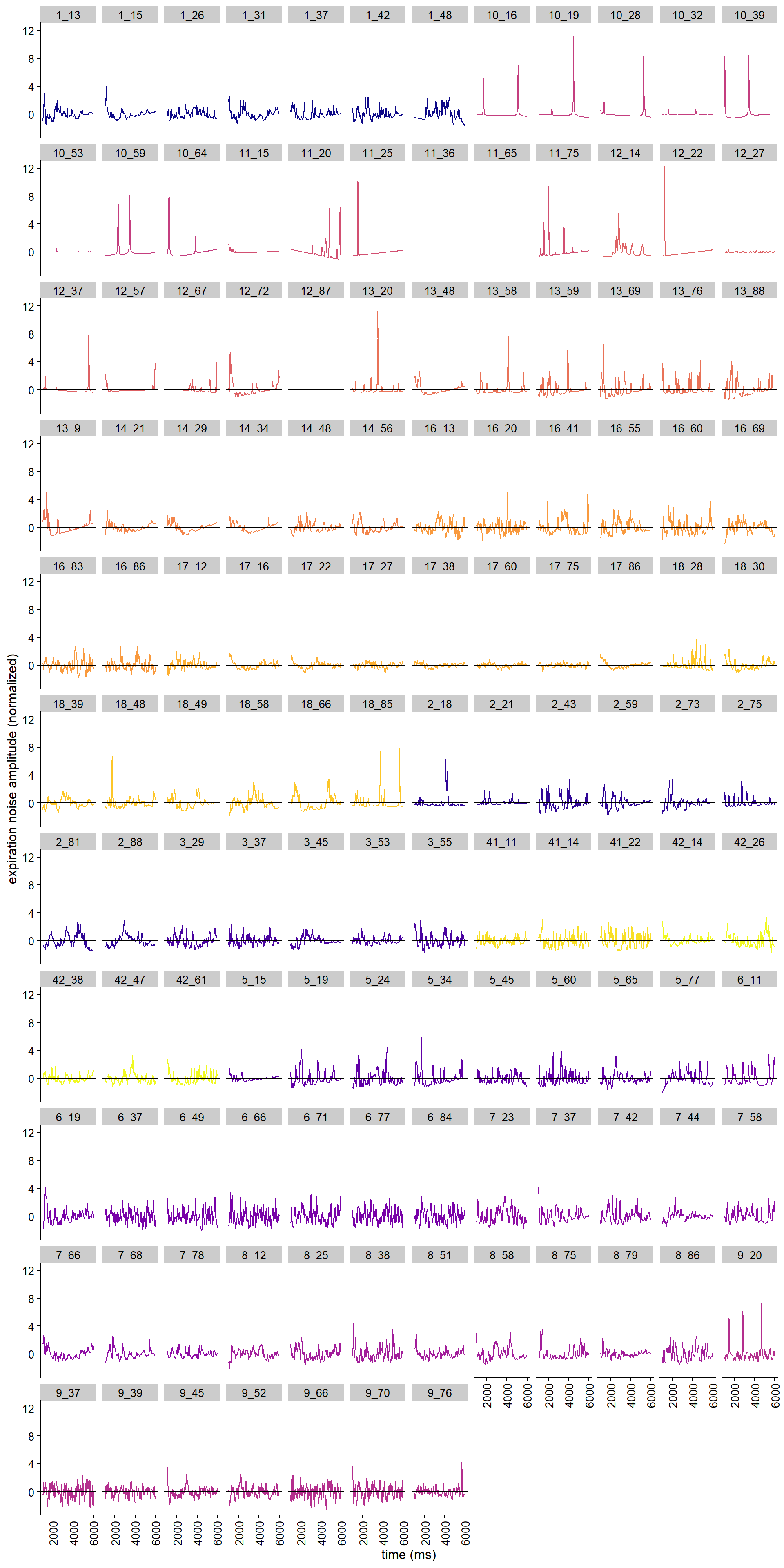

All envelopes by all participants shown in one plot. Color shows different trials.

Code

allpectoralis <- ggplot(nomovement, aes(x=time_ms)) +
  geom_path(aes(y=pectoralis_major, color='pectoralis major')) +
  scale_color_manual(values = colors_mus) +
  scale_y_continuous(name = "Pectoralis major") +
  #labs(y="sEMG") +
  theme_cowplot(12) +
  theme(legend.position = c(0.8, 1)) +
  geom_hline(yintercept= 0) +
  xlim(1000, 6000) +
  xlab('time (ms)') +
  theme(legend.position = "none",
        axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) +
  facet_wrap(~pptrial)

All pectoralis major EMG signals by all participants shown in one plot. Color shows different trials.

Code

allrectus <- ggplot(nomovement, aes(x=time_ms)) +
  geom_path(aes(y=rectus_abdominis, color="rectus abdominis")) +
  #scale_color_manual(values = colors_mus) +
  scale_y_continuous(name = "Rectus abdominis") +
  #labs(y="sEMG") +
  theme_cowplot(12) +
  theme(legend.position = c(0.8, 1)) +
  geom_hline(yintercept= 0) +
  xlim(1000, 6000) +
  xlab('time (ms)') +
  theme(legend.position = "none",
        axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) +
  facet_wrap(~pptrial)

All rectus abdominis EMG signals by all participants shown in one plot. Color shows different trials.

Subsequently, we ran FFTs on the two sEMG signals (rectus abdominis and pectoralis major). We use this to determine the frequency component with the highest magnitude, which constituted the participant’s heart rate. Again, we plotted the power spectrums of all trials.

Code

df_fft <- data.frame()
overwrite = FALSE #set to true if you want to run this chunk

if(overwrite == TRUE)
{
for(ID in tr_wd_nomov$uniquetrial)
{
tr_wd_s <- tr_wd_nomov[tr_wd_nomov$uniquetrial==ID,]

  ##load in row tr_wd
  pp <- tr_wd_s$ppn
  gender <- mtlist$sex[mtlist$ppn==pp]
  hand   <- mtlist$handedness[mtlist$ppn==pp]
  triali <- tr_wd_s$trialindex
  if(file.exists(paste0(procd, 'zscal_pp_', pp, '_trial_', triali, '_heartrate_aligned.csv')))
  {
  tsEMG <- read.csv(paste0(procd, 'zscal_pp_', pp, '_trial_', triali, '_heartrate_aligned.csv'))

  tsEMG$time_ms <- round(tsEMG$time_s*1000)
  tsEMG$time_ms <- tsEMG$time_ms-min(tsEMG$time_ms)
  tsEMG$uniquetrial <- paste0(triali, "_", pp)

  #before scaling/detrending, cut the signal -> 1 to 6 s (same for rectus)
  tsEMG <- tsEMG[(tsEMG$time_ms>1000) & (tsEMG$time_ms < 6000), ]
  ### start the FFT
  #rectus first
    #remove NAs
  tsEMG <- tsEMG %>%
    tidyr::drop_na(rectus_abdominis)
  NEMG = length(tsEMG$rectus_abdominis)

  #normalize and center again before the EMG is done
  #normalize signals by trial
  #also detrend
  tsEMG$rectus_abdominis[is.na(tsEMG$rectus_abdominis)] <- 0 #if there's trailing NAs, remove them
   tsEMG$rectus_abdominis <- ave(tsEMG$rectus_abdominis, tsEMG$uniquetrial, FUN = function(x){pracma::detrend( tsEMG$rectus_abdominis, tt = 'linear')})
   tsEMG$rectus_abdominis <- ave(tsEMG$rectus_abdominis, tsEMG$uniquetrial, FUN = function(x){scale(x, center = T, scale = T)})

  fftrectus <- abs(fft(tsEMG$rectus_abdominis))

  dffftrectus <- data.frame(Values = fftrectus)
  index <- 0:(length(fftrectus) -1) #start with 0, so the first bin is for 0 Hz
  dffftrectus$index <- index
  dffftrectus$frequency <- dffftrectus$index * samplingrate / NEMG
  #now cut it in half
  half_rows_rectus <- nrow(dffftrectus) %/% 2
  #subset the dataframe to keep only the first half of the rows
  dffftrectus <- dffftrectus[1:half_rows_rectus, ]

  maxfreqrectus <- dffftrectus$frequency[which.max(dffftrectus$Values)]
  tr_wd_nomov$heartrate_rectusfft_bpm[tr_wd_nomov$uniquetrial==ID] <- maxfreqrectus * 60
  tr_wd_nomov$heartrate_rectusfft_hz[tr_wd_nomov$uniquetrial==ID] <- maxfreqrectus

  #run the same for pectoralis
    #remove NAs
  tsEMG <- tsEMG %>%
    tidyr::drop_na(pectoralis_major)
  NEMG = length(tsEMG$pectoralis_major)

  #normalize and center again before the EMG is done


  #normalize signals by trial
  #also detrend
  tsEMG$pectoralis_major[is.na(tsEMG$pectoralis_major)] <- 0
  tsEMG$pectoralis_major <- ave(tsEMG$pectoralis_major, tsEMG$uniquetrial, FUN = function(x){pracma::detrend(tsEMG$pectoralis_major, tt = 'linear')})
  tsEMG$pectoralis_major <- ave(tsEMG$pectoralis_major, tsEMG$uniquetrial, FUN = function(x){scale(x, center = T, scale = T)})


  fftpectoralis <- abs(fft(tsEMG$pectoralis_major))

  dffftpectoralis <- data.frame(Values = fftpectoralis)
  index <- 0:(length(fftpectoralis) -1) #start with 0, so the first bin is for 0 Hz
  dffftpectoralis$index <- index
  dffftpectoralis$frequency <- dffftpectoralis$index * samplingrate / NEMG
  #now cut it in half
  half_rows_pectoralis <- nrow(dffftpectoralis) %/% 2
  #subset the dataframe to keep only the first half of the rows
  dffftpectoralis <- dffftpectoralis[1:half_rows_pectoralis, ]

  maxfreqpectoralis <- dffftpectoralis$frequency[which.max(dffftpectoralis$Values)]
  tr_wd_nomov$heartrate_pectoralisfft_bpm[tr_wd_nomov$uniquetrial==ID] <- maxfreqpectoralis * 60
  tr_wd_nomov$heartrate_pectoralisfft_hz[tr_wd_nomov$uniquetrial==ID] <- maxfreqpectoralis
#store the values in df_fft
  dffftrectus <- dffftrectus %>%
    rename(rectus = Values) %>%
    select(index, frequency, everything())
  dffftpectoralis <- dffftpectoralis %>%
    rename(pectoralis = Values) %>%
    select(index, frequency, everything())


  df_fft_temp <- left_join(dffftrectus, dffftpectoralis, by = c("index", "frequency"))
  df_fft_temp$uniquetrial <- paste0(triali, "_", pp)
    df_fft_temp <-df_fft_temp %>%
    mutate(pptrial = stringr::str_replace(uniquetrial, "(\\d+)_+(\\d+)", "\\2_\\1"))

  df_fft_temp <- df_fft_temp %>%
    dplyr::filter(frequency <= 3.0)

  df_fft <- rbind(df_fft, df_fft_temp)

  }
  write.csv(tr_wd_nomov, paste0(procdtot, 'fulldata_heartrate.csv'))
  write.csv(df_fft, paste0(procdtot, 'fulldata_heartrate_fft.csv'))
}
}

if(!overwrite)
{
  tr_wd_nomov <- read.csv(paste0(procdtot, 'fulldata_heartrate.csv'))
  df_fft <- read.csv(paste0(procdtot, 'fulldata_heartrate_fft.csv'))
}

#get heartrate from pectoralis FFTs, unless participant is 9, then use rectus

tr_wd_nomov <- tr_wd_nomov %>%
  mutate(heartrate_EMG_hz = ifelse(ppn == 9, heartrate_rectusfft_hz, heartrate_pectoralisfft_hz))

tr_wd_nomov <- tr_wd_nomov %>%
  mutate(heartrate_EMG_bpm = if_else(ppn == 9, heartrate_rectusfft_bpm, heartrate_pectoralisfft_bpm))

We can now visualize all the FFTs by participant. The frequency with the highest magnitude is what we use as the heartrate, after multiplying it by 60 to convert it to beats per minute (bpm).

Code

fftplot_rectus <- ggplot(df_fft, aes(x=frequency))+
  geom_col(aes(y=rectus, color = 'rectus abdominis')) +
  scale_y_continuous(name = "Rectus abdominis") +
  scale_color_manual(values = colors_mus) +
  #labs(y="sEMG") +
  #theme_cowplot(12) +
  xlab('Frequency (Hz)') +
  theme(legend.position = "none") +
  facet_wrap(~pptrial)

fftplot_pectoralis <- ggplot(df_fft, aes(x=frequency))+
  geom_col(aes(y=pectoralis, color = 'pectoralis major')) +
  scale_y_continuous(name = "Pectoralis major") +
  scale_color_manual(values = colors_mus) +
  #labs(y="sEMG") +
  #theme_cowplot(12) +
  xlab('Frequency (Hz)') +
  theme(legend.position = "none") +
  facet_wrap(~pptrial)

All spectra for the pectoralis major EMG signals (via FFT) by all participants shown in one plot..

In our analyses, we used the pectoralis major data, as they were closest to the heart. Since for participant 9 (i.e. trials 9_13 to 9_84) the EMG signal (and hence the resulting FFTs) for the pectoralis major were quite messy but the rectus abdominis looked fine, we chose to use the rectus abdominis signal for this participant.

Code

#first filter out the expire cases (they should be gone anyways)
 tr_wd_nomov <- tr_wd_nomov %>%
   dplyr::filter(vocal_condition == 'expire')

#create new dataset for plotting
heartrate <- tr_wd_nomov %>%
  dplyr::select(c(heartrate_pectoralisfft_hz, heartrate_rectusfft_hz)) %>%
  tidyr::gather(key = source, value = heartrate_hz, heartrate_pectoralisfft_hz, heartrate_rectusfft_hz) %>%
  mutate(source = gsub("heartrate_|_hz", "", source))

heartrate <- heartrate %>%
  mutate(heartrate_bpm = heartrate_hz * 60)

heartrateplot <- heartrate %>%
  ggplot(aes(x=heartrate_bpm, fill = source, color = source)) +
  geom_histogram(position="dodge", binwidth = 12)+
  # scale_fill_manual(values = c('#e7298a', '#d95f02')) +
  # scale_color_manual(values = c('#e7298a', '#d95f02')) +
  theme(legend.position="top") +
  theme_cowplot(12)

#also create the new EMG column in nomovement, so that rectus is taken from participant 9, otherwise all are pectoralis
nomovement <- nomovement %>%
  mutate(EMG = ifelse(pp == 9, rectus_abdominis, pectoralis_major))

Warning: Removed 4 rows containing non-finite outside the scale range
(`stat_bin()`).

Plot showing the heartrates (in bpm) for EMG measures at pectoralis major and rectus abdominis. Count refers to number of trials in a certain bin.

As a last step, to visualize the relationship between the sEMG/ECG and the vocal amplitude for one examplary participant (participant 8), we plotted the normalized timeseries, Lissajous graphs and power spectrums (Fourier transform, fft) in one graph.

Code

library(gridExtra)

# Select example trials
ex5 <- subset(nomovement, nomovement$tr %in% unique(nomovement$tr[nomovement$pp==8])[1:5])
ex5$EMG <- scale(ex5$pectoralis_major)

# Normalize
ex5$time_ms <- round(ex5$time_s_c*1000)

# Function to create time series plot for one trial
create_timeseries <- function(data, trial_id) {
  trial_data <- data[data$pptrial == trial_id, ]

  ggplot(trial_data, aes(x=time_ms)) +
    geom_path(aes(y=scale(EMG), color = 'pectoralis major'), size = 0.5) +
    geom_path(aes(y=scale(env_z_detrend)), color="black", size = 0.5) +
    scale_color_manual(values = colors_mus) +
    scale_y_continuous(
      name = "EMG/ECG",
      sec.axis = sec_axis(~., name="Expiration noise amplitude"),
      limits = c(-2, 2.5)
    ) +
    theme_cowplot(12) +
    theme(legend.position = "none") +
    geom_hline(yintercept= 0, linetype = 2, size = 0.3) +
    scale_x_continuous(limits = c(1000, 6000), breaks = seq(1000, 6000, 1000)) +
    xlab('Time (ms)') +
    ggtitle(trial_id)
}

# Function to create Lissajous plot for one trial (square)
create_lissajous <- function(data, trial_id) {
  trial_data <- data[data$pptrial == trial_id, ]

  ggplot(trial_data, aes(x = scale(EMG), y = scale(env_z_detrend))) +
    geom_path(alpha = 0.6, size = 0.5) +
    geom_point(alpha = 0.1, size = 0.3) +
    labs(x = "EMG", y = "Expiration noise amplitude") +
    theme_cowplot(12) +
    coord_fixed(ratio = 1) +
    theme(aspect.ratio = 1)
}

# Function to create FFT overlay plot
create_fft_plot <- function(data, trial_id) {
  trial_data <- data[data$pptrial == trial_id, ]

  # Remove NAs
  trial_data <- trial_data[!is.na(trial_data$EMG) & !is.na(trial_data$env_z_detrend), ]

  # Compute FFT for EMG
  N_emg <- length(trial_data$EMG)
  fft_emg <- abs(fft(scale(trial_data$EMG)))
  half_N_emg <- floor(N_emg/2)
  freq_emg <- seq(0, length.out = half_N_emg) * 2500 / N_emg
  fft_emg_half <- fft_emg[1:half_N_emg]
  fft_emg_norm <- fft_emg_half / max(fft_emg_half)

  # Compute FFT for envelope
  N_env <- length(trial_data$env_z_detrend)
  fft_env <- abs(fft(scale(trial_data$env_z_detrend)))
  half_N_env <- floor(N_env/2)
  freq_env <- seq(0, length.out = half_N_env) * 2500 / N_env
  fft_env_half <- fft_env[1:half_N_env]
  fft_env_norm <- fft_env_half / max(fft_env_half)

  # Create dataframes
  df_emg <- data.frame(frequency = freq_emg, power = fft_emg_norm, signal = "EMG")
  df_env <- data.frame(frequency = freq_env, power = fft_env_norm, signal = "Envelope")
  df_fft <- rbind(df_emg, df_env)

  # Filter to 0.5-3 Hz
  df_fft <- df_fft[df_fft$frequency >= 0.5 & df_fft$frequency <= 3, ]

  # Get heart rate for vertical line
  hr_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial == trial_id]

  ggplot(df_fft, aes(x = frequency, y = power, color = signal, fill = signal)) +
    geom_area(alpha = 0.5, position = "identity") +
    geom_line(alpha = 0.8, size = 0.8) +
    scale_color_manual(values = c("EMG" = col_pectoralis, "Envelope" = "black")) +
    scale_fill_manual(values = c("EMG" = col_pectoralis, "Envelope" = "black")) +
    geom_vline(xintercept = hr_hz, linetype = 2, color = "gray20", size = 0.5) +
    labs(x = "Frequency (Hz)", y = "Normalized power") +
    scale_x_continuous(limits = c(0.5, 3), breaks = seq(0.5, 3, 0.5)) +
    scale_y_continuous(limits = c(0, 1), breaks = seq(0, 1, 0.25)) +
    theme_cowplot(12) +
    theme(legend.position = c(0.85, 0.85),
          legend.title = element_blank(),
          legend.background = element_rect(fill = "white", color = NA))
}

# Create combined plots for each trial
trial_ids <- unique(ex5$pptrial)
all_plots <- list()

for(i in seq_along(trial_ids)) {
  ts_plot <- create_timeseries(ex5, trial_ids[i])
  lj_plot <- create_lissajous(ex5, trial_ids[i])
  fft_plot <- create_fft_plot(ex5, trial_ids[i])

  all_plots[[i]] <- grid.arrange(ts_plot, lj_plot, fft_plot,
                                  ncol = 3,
                                  widths = c(1.2, 1, 1.2))
}

Fig.@ref(fig:detrendedexample) uses the same data as the example trial from above (participant 8) (Fig.@ref(fig:combinedtimeseriesnomov2)), but the expration noise amplitude has been detrended.

Example of 5 trials of a representative participant (participant 8). Left: the normalized and detrended amplitude envelopes in black and the normalized EMG/ECG signals from the pectoralis major in pink. Middle: Lissajous coupling motifs (x = amplitude envelope, y = EMG/ECG). Right: the normalized power spectra (fft) of the amplitude envelope in black and the EMG/ECG signal in pink.

Hypothesis testing

In this section, tested two hypotheses related to heart-expiration noise coupling.

Hypothesis 1: The amplitude of the noise of a sustained expiration is coherent with the cardiac activity

To test this hypothesis, we computed the squared magnitude coherence between the pectoralis major EMG signal and amplitude envelope time series. We did so for real pairs, i.e. both time series are from the same trial, and false pairs, i.e. the two signals are randomly combined across trials.

The false pairs we created by using base R’s sample(), which creates a shuffled, random vector of the trials. It was supported by a safety net function that makes sure that no trial in the original and the new vector are the same and that no false pair consists of trials from the same participant. Setting replace to FALSE ensures that no trial occurs twice in the shuffled version.

Coherence was then computed for each trial between the detrended amplitude envelope and the pectoralis major EMG signal for real and false pairs via seewave::coh().

Code

### create real and false pairs
# real pairs: use trial pairings as recorded
# false pairs: take tr_wd_nomov$uniquetrials and randomly combine them

tr_wd_nomov <- tr_wd_nomov %>%
  mutate(pptrial = stringr::str_replace(uniquetrial, "(\\d+)_+(\\d+)", "\\2_\\1"))

#real pairs df:
realpairs <- nomovement %>%
  select(c(time_ms, env_z_detrend, rectus_abdominis, pectoralis_major, EMG, pptrial))

realpairs <- realpairs %>%
  group_by(pptrial) %>%
  slice_head(n=12496) %>%
  ungroup()


#false pairs df:
#create function to shuffle vector until no element matches its corresponding element in the original vector
#the second part of the while loop also makes sure that no trials from the same participant are matched

shuffle_until_no_matches <- function(original) {
  shuffled <- sample(original, replace = FALSE)
  while (any(shuffled == original) || any(sapply(strsplit(shuffled, "_"), `[`, 1) == sapply(strsplit(original, "_"), `[`, 1))) {
    shuffled <- sample(original, replace = FALSE)
  }
  return(shuffled)
}
#set seed for reproducibility; change this to re-shuffle
set.seed(1234)
tr_wd_nomov$pptrial_shuffled <- shuffle_until_no_matches(tr_wd_nomov$pptrial)

#now make a dataset with false pairs
falsepairs <- data.frame()
for(ID in tr_wd_nomov$pptrial)
{
  # check if ID in pptrial
  if(!ID %in% tr_wd_nomov$pptrial) {
    next  # Skip to the next iteration if ID is not found
  }
  shuffleID <- tr_wd_nomov$pptrial_shuffled[tr_wd_nomov$pptrial==ID]
  #for all time series there are either 12,497 (n=73) or 12,498 (n=55) data points, so we'll shorten them all to 12,496 (so it is divisible by 2 for later analysis of first and second half)
  #pick time & and envelope from the ID part
  time_ms <- nomovement %>%
    dplyr::filter(pptrial == ID) %>%
    select(time_ms) %>%
    slice_head(n=12496)

  #pick the envelope from ID
  env_z_detrend <- nomovement %>%
    dplyr::filter(pptrial == ID) %>%
    select(env_z_detrend) %>%
    slice_head(n=12496)

  #pick the EMG signals from the randomly assigned shuffleID
  rectus_abdominis <- nomovement %>%
    dplyr::filter(pptrial == shuffleID) %>%
    select(rectus_abdominis) %>%
    slice_head(n=12496)

  pectoralis_major <- nomovement %>%
    dplyr::filter(pptrial == shuffleID) %>%
    select(pectoralis_major) %>%
    slice_head(n=12496)

  EMG <- nomovement %>%
    dplyr::filter(pptrial == shuffleID) %>%
    select(EMG) %>%
    slice_head(n=12496)
  # check if all data frames have the same number of rows
  if (nrow(time_ms) != nrow(env_z_detrend) || nrow(time_ms) != nrow(rectus_abdominis) || nrow(time_ms) != nrow(pectoralis_major) || nrow(time_ms) != nrow(EMG)) {
    next  # Skip to the next iteration if row counts do not match
  }
  falsepairs_temp <- cbind.data.frame(time_ms, env_z_detrend, rectus_abdominis, pectoralis_major, EMG, ID, shuffleID)
  falsepairs <- rbind(falsepairs, falsepairs_temp)
}

#rename 2 columns in falsepairs for uniformity across datasets
falsepairs <- falsepairs %>%
  dplyr::rename(pptrial = ID)
falsepairs <- falsepairs %>%
  dplyr::rename(pptrial_shuffle = shuffleID)

We then used these two newly created data frames to compute coherence for false and real pairs.

Code

### compute coherence
#start with realpairs
coherence_realpairs <- realpairs %>%
  group_by(pptrial) %>%
  reframe(coh = coh(env_z_detrend, EMG, f = 2500, plot = F))

#convert from kHz to Hz
coherence_realpairs$frequency <- coherence_realpairs$coh[,1] * 1000
coherence_realpairs$coherence <- coherence_realpairs$coh[,2]
coherence_realpairs <- coherence_realpairs %>%
    select(!coh)


#do the same for falsepairs
coherence_falsepairs <- falsepairs %>%
  group_by(pptrial) %>%
  reframe(coh = coh(env_z_detrend, EMG, f = 2500, plot = F))

#convert from kHz to Hz
coherence_falsepairs$frequency <- coherence_falsepairs$coh[,1] * 1000
coherence_falsepairs$coherence <- coherence_falsepairs$coh[,2]
coherence_falsepairs <- coherence_falsepairs %>%
    select(!coh)

Next, we plot coherence for real and false pairs (see Fig. @ref(fig:coherencepairsplot)). In the plots separated by trial, we inserted a vertical line that represents the heart rate that we extracted from the FFTs of the EMG signal.

Code

#now plot coherence for real & fake pairs for 0-3 Hz
#create participant column from pptrial
coherence_realpairs$participant <- sub("_(.*)", "", coherence_realpairs$pptrial)
coherence_falsepairs$participant <- sub("_(.*)", "", coherence_falsepairs$pptrial)
coherence_realpairs$pair <- "real_pair"
coherence_falsepairs$pair <- "false_pair"
coherence_pairs <- rbind(coherence_realpairs, coherence_falsepairs)
coherence_pairs <- coherence_pairs %>%
  mutate(id_pair = paste0(pptrial, "_", pair))

heartrateline <- data.frame(pptrial = tr_wd_nomov$pptrial, heartrate = tr_wd_nomov$heartrate_EMG_hz)
heartrateline$participant <- sub("_(.*)", "", heartrateline$pptrial)


coherence_pairs_plot <- coherence_pairs %>%
  dplyr::filter(frequency <= 3) %>%
  ggplot(aes(x=frequency, group = id_pair, color = pair)) +
  geom_path(aes(y=coherence)) +
  theme_cowplot(12) +
  theme(legend.position = "none") +
  facet_wrap(~pptrial) +
  ylab("Coherence value") +
  xlab("Frequency (in Hz)") +
  ylim(0, 1) +
  geom_vline(data = heartrateline, aes(xintercept = heartrate), color = "black") +
  scale_colour_brewer(palette = "Set1") +
  theme(legend.position = "bottom", legend.box = "horizontal", legend.justification = "center",
        legend.title = element_blank())

Warning: Removed 2 rows containing missing values or values outside the scale range
(`geom_vline()`).

Plot showing the coherence spectra for real (turquoise) and false pairs (red) between detrended amplitude envelope and EMG signal. The vertical line inserted expresses the heartrate extracted from the FFT of the EMG signal in that particular trial.

We extracted the coherence value at the point where the vertical lines were drawn in the plot for visualization (or rather at the closest frequency value in the coherence data, as the data is not continuous). That gave us the coherence value at the frequency of heart rate in a given trial.

Code

#now extract the coherence values at the point of heartrate
heartrate_coh <- data.frame()
heartrate_coh_temp <- data.frame()

#at frequency of heart rate, extract the coherence value
#since there is no value at the exact frequency, we choose the closest one
for(ID in tr_wd_nomov$pptrial)
{
  heartrate_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial==ID]
  if (is.na(heartrate_hz)) {
    next  # Skip to the next iteration if heartrate_hz is NA
  }
  coherence_realpairs_temp <- coherence_realpairs %>%
    dplyr::filter(pptrial == ID)
  closest_index <- which.min(abs(coherence_realpairs_temp$frequency - heartrate_hz))
  closest_frequency <- coherence_realpairs_temp$frequency[closest_index]
  coherence <- coherence_realpairs_temp$coherence[closest_index]
  weight_condition <- tr_wd_nomov$weight_condition[tr_wd_nomov$pptrial==ID]

  heartrate_coh_temp <- cbind.data.frame(heartrate_hz, closest_index, closest_frequency, coherence, ID, weight_condition)
  heartrate_coh <- rbind(heartrate_coh, heartrate_coh_temp)
}

#do the same for false pairs
heartrate_coh_false <- data.frame()
heartrate_coh_temp_false <- data.frame()

for(ID in tr_wd_nomov$pptrial)
{
  heartrate_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial==ID]
  if (is.na(heartrate_hz)) {
    next  # Skip to the next iteration if heartrate_hz is NA
  }
  coherence_falsepairs_temp <- coherence_falsepairs %>%
    dplyr::filter(pptrial == ID)
  closest_index <- which.min(abs(coherence_falsepairs_temp$frequency - heartrate_hz))
  if (length(closest_index) == 0) {
    next  # Skip to the next iteration if closest_index is empty
  }
  closest_frequency <- coherence_falsepairs_temp$frequency[closest_index]
  coherence <- coherence_falsepairs_temp$coherence[closest_index]
  weight_condition <- tr_wd_nomov$weight_condition[tr_wd_nomov$pptrial==ID]

  heartrate_coh_temp_false <- cbind.data.frame(heartrate_hz, closest_index, closest_frequency, coherence, ID, weight_condition)
  heartrate_coh_false <- rbind(heartrate_coh_false, heartrate_coh_temp_false)
}

# make singel dataframe
heartrate_coherence_real <- heartrate_coh %>%
  dplyr::rename(coherence = coherence) %>%
  mutate(pair_type = 'real')
heartrate_coherence_false <- heartrate_coh_false %>%
  dplyr::rename(coherence = coherence) %>%
  mutate(pair_type = 'false')
heartrate_coherence <- rbind(heartrate_coherence_real, heartrate_coherence_false)
heartrate_coherence$ppn <- sub("_(.*)", "", heartrate_coherence$ID)

Subsequently, we plotted the coherence values and tested if there was a difference in coherence values for real and false pairs. Fig. @ref(fig:coherencerealfalsepairsplot) shows the difference in coherence values for false and right pairs.

Code

#reorder the coherence pair type levels, so that false becomes the intercept
heartrate_coherence$pair_type <- factor(heartrate_coherence$pair_type, levels=c('false', 'real'))

#model the data, compare to null model
model_realfalse_coherence_null <- lmer(coherence ~ 1 + (1 |ppn/ID), data = heartrate_coherence)
model_realfalse_coherence <- lmer(coherence ~ pair_type + 1 + (1|ppn/ID), data = heartrate_coherence)
comparison_realfalse_coherence <- anova(model_realfalse_coherence_null, model_realfalse_coherence)

#also save the model output in a data frame
modelsummary_realfalse_coherence <- summary(model_realfalse_coherence)$coefficients
colnames(modelsummary_realfalse_coherence) <- c('Estimate', 'SE', 'df', 't-value', 'p-value')
rownames(modelsummary_realfalse_coherence) <- c('Intercept (false pairs)', 'vs. real pairs')

# Create ANOVA comparison table
comparison_realfalse_table <- data.frame(
  Model = c("Null (Intercept only)", "Pair type (false vs. real)"),
  npar = comparison_realfalse_coherence$npar,
  AIC = round(comparison_realfalse_coherence$AIC, 2),
  BIC = round(comparison_realfalse_coherence$BIC, 2),
  logLik = round(comparison_realfalse_coherence$logLik, 2),
  deviance = round(comparison_realfalse_coherence$deviance, 2),
  Chisq = c(NA, round(comparison_realfalse_coherence$Chisq[2], 3)),
  Df = c(NA, comparison_realfalse_coherence$Df[2]),
  `Pr(>Chisq)` = c(NA, ifelse(comparison_realfalse_coherence$`Pr(>Chisq)`[2] < .001, "< .001",
                               round(comparison_realfalse_coherence$`Pr(>Chisq)`[2], 3)))
)

Code

# Create descriptive statistics table with confidence intervals
descriptives_realfalse <- heartrate_coherence %>%
  group_by(pair_type) %>%
  summarise(
    n = n(),
    Mean = mean(coherence, na.rm = TRUE),
    SD = sd(coherence, na.rm = TRUE),
    SE = SD / sqrt(n),
    CI_lower = Mean - qt(0.975, n-1) * SE,
    CI_upper = Mean + qt(0.975, n-1) * SE,
    .groups = 'drop'
  ) %>%
  mutate(
    `95% CI` = paste0("[", round(CI_lower, 3), ", ", round(CI_upper, 3), "]")
  ) %>%
  select(pair_type, n, Mean, SD, `95% CI`) %>%
  mutate(
    Mean = round(Mean, 3),
    SD = round(SD, 3)
  )

# Display descriptive statistics table
knitr::kable(descriptives_realfalse,
             caption = "Descriptive statistics: Coherence values by pair type.",
             col.names = c("Pair Type", "N", "Mean", "SD", "95% CI")) %>%
  kable_paper("hover", full_width = TRUE)

Descriptive statistics: Coherence values by pair type.
Pair Type	N	Mean	SD	95% CI
false	125	0.281	0.192	[0.247, 0.315]
real	127	0.389	0.231	[0.348, 0.43]

With a mixed linear regression we modeled the variation in coherence (using R-package lme4), with trial as random intercept (for more complex random slope models did not converge). A model with pairing type (real vs false pairs) explained more variance than a base model predicting the overall mean, Change in Chi-Squared (1.00) = 17.09, p < .001.

Model comparison and coefficients are shown in the tables below S@ref(tab:modelcoherencerealvsfalse). We find that real pairs (as opposed to the false pairs, i.e. the intercept ) had higher coherence values for the heart rate frequency.

Model comparison: Effect of pair type on coherence values.
Model	npar	AIC	BIC	logLik	deviance	Chisq	Df	Pr..Chisq.
Null (Intercept only)	4	-47.06	-32.95	27.53	-55.06	NA	NA	NA
Pair type (false vs. real)	5	-62.16	-44.51	36.08	-72.16	17.091	1	< .001

Effects of pairing type on coherence values.
	Estimate	SE	df	t-value	p-value
Intercept (false pairs)	0.283	0.023	33.046	12.084	0.000
vs. real pairs	0.108	0.026	232.555	4.203	0.000

Excluding effects of weights

Code

#reorder the coherence pair type levels, so that false becomes the intercept
heartrate_coherence_real <- heartrate_coherence %>%
  dplyr::filter(pair_type == 'real')

#model the data, compare to null model
model_real_coherence_null <- lmer(coherence ~ 1 + (1 |ppn/ID), data = heartrate_coherence)
model_real_coherence_weights <- lmer(coherence ~ weight_condition + 1 + (1|ppn/ID), data = heartrate_coherence)
comparison <- anova(model_real_coherence_null, model_real_coherence_weights)

# Create ANOVA comparison table
comparison_table <- data.frame(
  Model = c("Null (Intercept only)", "Weight condition"),
  npar = comparison$npar,
  AIC = round(comparison$AIC, 2),
  BIC = round(comparison$BIC, 2),
  logLik = round(comparison$logLik, 2),
  deviance = round(comparison$deviance, 2),
  Chisq = c(NA, round(comparison$Chisq[2], 3)),
  Df = c(NA, comparison$Df[2]),
  `Pr(>Chisq)` = c(NA, ifelse(comparison$`Pr(>Chisq)`[2] < .001, "< .001",
                               round(comparison$`Pr(>Chisq)`[2], 3)))
)

While we did not expect the weight wrists, worn in some of the conditions, to have affected heart-voice coupling in no movement conditions, we checked this assumption here. Below in table S@ref(tab:weight_comparison) we report the comparison between a model predicting the overall mean coherence, versus a model predicting coherence as predicted by wearing a 1kg weight or not. Since weight was not a reliable predictor, we intepreted this as proff that the weight wrists did not affect our results on hearth-voice coupling.

Model comparison: Effect of weight condition on coherence values in real pairs.
Model	npar	AIC	BIC	logLik	deviance	Chisq	Df	Pr..Chisq.
Null (Intercept only)	4	-47.06	-32.95	27.53	-55.06	NA	NA	NA
Weight condition	5	-45.87	-28.23	27.94	-55.87	0.809	1	0.369

Code

# per trial
heartrate_coh_false <- mutate(heartrate_coh_false, pair_type = "false")
heartrate_coh <- mutate(heartrate_coh, pair_type = "real")
heartrate_coherence <- rbind(heartrate_coh, heartrate_coh_false)

# Add participant column if not already present
heartrate_coherence$participant <- sub("_(.*)", "", heartrate_coherence$ID)

A <- ggplot(heartrate_coherence, aes(x = pair_type, y = coherence, color = pair_type)) +
  geom_boxplot(size = 1) +
  geom_quasirandom() +
  theme_bw() +
  ylab('Coherence value') +
  xlab('Pair type') +
  scale_colour_brewer(palette = "Set1") +
  theme_cowplot() +
  theme(legend.position = "none")

# per participant, geom_jitter with connected lines
# First calculate participant means
heartrate_coherence_means <- heartrate_coherence %>%
  group_by(participant, pair_type) %>%
  summarise(coherence_mean = mean(coherence, na.rm = TRUE), .groups = 'drop')

B <- ggplot(heartrate_coherence_means, aes(x = pair_type, y = coherence_mean, group = participant)) +
  geom_line(color = "gray60", alpha = 0.6) +
  geom_point(aes(color = pair_type), size = 3, alpha = 0.8) +
  theme_bw() +
  ylab('Mean coherence value') +
  xlab('Pair type') +
  scale_colour_brewer(palette = "Set1") +
  theme_cowplot() +
  theme(legend.position = "none")

# cowplot A, B
plot_grid(A, B, labels = c('A', 'B'), ncol = 2)

Hypothesis 2: The heart-voice coupling is more pronounced at the beginning of the expiration, when the lungs are full

To test this hypothesis, we split the trials into first half and second half. The first half included data from 1001 to 3500 ms, the second half from 3500 to 5999 ms. Then we computed the coherence between the amplitude envelope and EMG signal (real pairs only here). Finally, we compared the coherence in the first half to that in the second half. For reference, we also included false and real pairs for the first and second half. As such, we had four data sets here (first vs second half, and real vs false pairs).

Code

#we will here use realpairs and falsepairs from above, which are already shortened to 12,496 data points
#first we separate into 1st and 2nd half; this creates 4 dataframes (2 pair types, 2 halves)
firsthalf_real <- realpairs %>%
  group_by(pptrial) %>%
  slice_head(n = 12496 / 2)

firsthalf_false <- falsepairs %>%
  group_by(pptrial) %>%
  slice_head(n = 12496 / 2)

secondhalf_real <- realpairs %>%
  group_by(pptrial) %>%
  slice_tail(n = 12496 / 2)

secondhalf_false <- falsepairs %>%
  group_by(pptrial) %>%
  slice_tail(n = 12496 / 2)

coherence_firsthalf_real <- firsthalf_real %>%
  group_by(pptrial) %>%
  reframe(coh = coh(env_z_detrend, EMG, f = 2500, plot = F))

#convert from kHz to Hz
coherence_firsthalf_real$frequency <- coherence_firsthalf_real$coh[,1] * 1000
coherence_firsthalf_real$coherence <- coherence_firsthalf_real$coh[,2]
coherence_firsthalf_real <- coherence_firsthalf_real %>%
    select(!coh)
coherence_firsthalf_real <- coherence_firsthalf_real %>%
  mutate(pair_type = "real")

#add false pairs to it
coherence_firsthalf_false <- firsthalf_false %>%
  group_by(pptrial) %>%
  reframe(coh = coh(env_z_detrend, EMG, f = 2500, plot = F))

coherence_firsthalf_false$frequency <- coherence_firsthalf_false$coh[,1] * 1000
coherence_firsthalf_false$coherence <- coherence_firsthalf_false$coh[,2]
coherence_firsthalf_false <- coherence_firsthalf_false %>%
    select(!coh)
coherence_firsthalf_false <- coherence_firsthalf_false %>%
  mutate(pair_type = "false")

coherence_firsthalf <- rbind(coherence_firsthalf_real, coherence_firsthalf_false)

### same for second half
coherence_secondhalf_real <- secondhalf_real %>%
  group_by(pptrial) %>%
  reframe(coh = coh(env_z_detrend, EMG, f = 2500, plot = F))

#convert from kHz to Hz
coherence_secondhalf_real$frequency <- coherence_secondhalf_real$coh[,1] * 1000
coherence_secondhalf_real$coherence <- coherence_secondhalf_real$coh[,2]
coherence_secondhalf_real <- coherence_secondhalf_real %>%
    select(!coh)
coherence_secondhalf_real <- coherence_secondhalf_real %>%
  mutate(pair_type = "real")

#add false pairs to it
coherence_secondhalf_false <- secondhalf_false %>%
  group_by(pptrial) %>%
  reframe(coh = coh(env_z_detrend, EMG, f = 2500, plot = F))

#convert from kHz to Hz
coherence_secondhalf_false$frequency <- coherence_secondhalf_false$coh[,1] * 1000
coherence_secondhalf_false$coherence <- coherence_secondhalf_false$coh[,2]
coherence_secondhalf_false <- coherence_secondhalf_false %>%
    select(!coh)
coherence_secondhalf_false <- coherence_secondhalf_false %>%
  mutate(pair_type = "false")

coherence_secondhalf <- rbind(coherence_secondhalf_real, coherence_secondhalf_false)

#put them into the same dataframe
coherence_firsthalf <- mutate(coherence_firsthalf, half = "first")
coherence_secondhalf <- mutate(coherence_secondhalf, half = "second")
halves_coherence <- rbind(coherence_firsthalf, coherence_secondhalf)
#create combination of pptrial and half for grouping in plot
halves_coherence <- halves_coherence %>%
  mutate(pptrialhalftype = paste0(pptrial, "_", half, "_", pair_type))

halves_coherence <- halves_coherence %>%
  mutate(type = paste0(half, "_", pair_type))
#create plot
#heartrateline <- data.frame(pptrial = tr_wd_nomov$pptrial, heartrate = tr_wd_nomov$heartrate_pectoralisfft_hz)

coherence_halves_plot_real <- halves_coherence %>%
  dplyr::filter(frequency <= 3) %>%
  dplyr::filter(pair_type == "real") %>%
  ggplot(aes(x=frequency)) +
  geom_path(aes(y=coherence, group = pptrialhalftype, color = half)) +
  theme_cowplot(12) +
  theme(legend.position = "bottom") +
  facet_wrap(~pptrial) +
  ylim(0, 1) +
  geom_vline(data = heartrateline, aes(xintercept = heartrate)) +
  scale_colour_brewer(palette = "Set1")

coherence_halves_plot_false <- halves_coherence %>%
  dplyr::filter(frequency <= 3) %>%
  dplyr::filter(pair_type == "false") %>%
  ggplot(aes(x=frequency)) +
  geom_path(aes(y=coherence, group = pptrialhalftype, color = half)) +
  theme_cowplot(12) +
  theme(legend.position = "bottom") +
  facet_wrap(~pptrial) +
  ylim(0, 1) +
  geom_vline(data = heartrateline, aes(xintercept = heartrate)) +
  scale_colour_brewer(palette = "Set1")

Warning: Removed 2 rows containing missing values or values outside the scale range
(`geom_vline()`).

Coherence spectra for first (red) and second (blue) half of the time in real pairs.

Warning: Removed 2 rows containing missing values or values outside the scale range
(`geom_vline()`).

Coherence spectra for first (red) and second (blue) half of the time in false pairs

Code

# Original spectral plots
coherence_halves_plot_real <- halves_coherence %>%
  dplyr::filter(frequency <= 3) %>%
  dplyr::filter(pair_type == "real") %>%
  ggplot(aes(x=frequency)) +
  geom_path(aes(y=coherence, group = pptrialhalftype, color = half)) +
  theme_cowplot(12) +
  theme(legend.position = "bottom") +
  facet_wrap(~pptrial) +
  ylim(0, 1) +
  geom_vline(data = heartrateline, aes(xintercept = heartrate)) +
  scale_colour_brewer(palette = "Set1")

coherence_halves_plot_false <- halves_coherence %>%
  dplyr::filter(frequency <= 3) %>%
  dplyr::filter(pair_type == "false") %>%
  ggplot(aes(x=frequency)) +
  geom_path(aes(y=coherence, group = pptrialhalftype, color = half)) +
  theme_cowplot(12) +
  theme(legend.position = "bottom") +
  facet_wrap(~pptrial) +
  ylim(0, 1) +
  geom_vline(data = heartrateline, aes(xintercept = heartrate)) +
  scale_colour_brewer(palette = "Set1")

firstsecondhalf_coherence <- rbind(coherence_firsthalf, coherence_secondhalf)

# Add participant column to firstsecondhalf_coherence if not present
firstsecondhalf_coherence$ID <- firstsecondhalf_coherence$pptrial
firstsecondhalf_coherence$participant <-  sub("_(.*)", "", firstsecondhalf_coherence$ID)

# Per trial boxplot (original)
A_halves <- ggplot(firstsecondhalf_coherence, aes(x = half, y = coherence, color = half)) +
  geom_boxplot(size = 1) +
  geom_quasirandom() +
  ylab('Coherence value') +
  xlab('Half') +
  scale_colour_brewer(palette = "Set1") +
  theme_cowplot() +
  facet_wrap(~pair_type) +
  theme(legend.position = "none")

# Per participant means with connected lines
firstsecondhalf_coherence_means <- firstsecondhalf_coherence %>%
  group_by(participant, half, pair_type) %>%
  summarise(coherence_mean = mean(coherence, na.rm = TRUE), .groups = 'drop')

B_halves <- ggplot(firstsecondhalf_coherence_means, aes(x = half, y = coherence_mean, group = participant)) +
  geom_line(color = "gray60", alpha = 0.6) +
  geom_point(aes(color = half), size = 3, alpha = 0.8) +
  ylab('Mean coherence value') +
  xlab('Half') +
  scale_colour_brewer(palette = "Set1") +
  theme_cowplot() +
  facet_wrap(~pair_type) +
  theme(legend.position = "none")

Code

#compare coherence between the 2 halves; and for real vs false pairs
#get coherence value at frequency of heart rate
#start with first half
firsthalf_real_coh_temp <- data.frame()
firsthalf_real_coh <- data.frame()

#at frequency of heart rate, extract the coherence value
#since there is no value at the exact frequency, we choose the closest one
for(ID in tr_wd_nomov$pptrial)
{
  heartrate_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial==ID]
  # check if present
  if (is.na(heartrate_hz)) {
    next  # Skip to the next iteration if heartrate_hz is NA
  }
  coherence_firsthalf_real_temp <- coherence_firsthalf_real %>%
    dplyr::filter(pptrial == ID)
  closest_index <- which.min(abs(coherence_firsthalf_real_temp$frequency - heartrate_hz))
  closest_frequency <- coherence_firsthalf_real_temp$frequency[closest_index]
  coherence <- coherence_firsthalf_real_temp$coherence[closest_index]

  firsthalf_real_coh_temp <- cbind.data.frame(heartrate_hz, closest_index, closest_frequency, coherence, ID)
  firsthalf_real_coh <- rbind(firsthalf_real_coh, firsthalf_real_coh_temp)
}

#now for false pairs in firsthalf
firsthalf_false_coh_temp <- data.frame()
firsthalf_false_coh <- data.frame()

for(ID in tr_wd_nomov$pptrial)
{
  heartrate_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial==ID]
    if (is.na(heartrate_hz)) {
    next  # Skip to the next iteration if heartrate_hz is NA
  }
  coherence_firsthalf_false_temp <- coherence_firsthalf_false %>%
    dplyr::filter(pptrial == ID)
  closest_index <- which.min(abs(coherence_firsthalf_false_temp$frequency - heartrate_hz))
  if (length(closest_index) == 0) {
    next  # Skip to the next iteration if closest_index is empty
  }
  closest_frequency <- coherence_firsthalf_false_temp$frequency[closest_index]
  coherence <- coherence_firsthalf_false_temp$coherence[closest_index]

  firsthalf_false_coh_temp <- cbind.data.frame(heartrate_hz, closest_index, closest_frequency, coherence, ID)
  firsthalf_false_coh <- rbind(firsthalf_false_coh, firsthalf_false_coh_temp)
}


### then same for second half
secondhalf_real_coh_temp <- data.frame()
secondhalf_real_coh <- data.frame()

#at frequency of heartrate, extract the coherence value
#since there is no value at the exact frequency, we choose the closest one
for(ID in tr_wd_nomov$pptrial)
{
  heartrate_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial==ID]
    if (is.na(heartrate_hz)) {
    next  # Skip to the next iteration if heartrate_hz is NA
  }
  coherence_secondhalf_real_temp <- coherence_secondhalf_real %>%
    dplyr::filter(pptrial == ID)
  closest_index <- which.min(abs(coherence_secondhalf_real_temp$frequency - heartrate_hz))
  if (length(closest_index) == 0) {
    next  # Skip to the next iteration if closest_index is empty
  }
  closest_frequency <- coherence_secondhalf_real_temp$frequency[closest_index]
  coherence <- coherence_secondhalf_real_temp$coherence[closest_index]

  secondhalf_real_coh_temp <- cbind.data.frame(heartrate_hz, closest_index, closest_frequency, coherence, ID)
  secondhalf_real_coh <- rbind(secondhalf_real_coh, secondhalf_real_coh_temp)
}

#now for false pairs in secondhalf
secondhalf_false_coh_temp <- data.frame()
secondhalf_false_coh <- data.frame()

for(ID in tr_wd_nomov$pptrial)
{
  heartrate_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial==ID]
    if (is.na(heartrate_hz)) {
    next  # Skip to the next iteration if heartrate_hz is NA
  }
  coherence_secondhalf_false_temp <- coherence_secondhalf_false %>%
    dplyr::filter(pptrial == ID)
  closest_index <- which.min(abs(coherence_secondhalf_false_temp$frequency - heartrate_hz))
  if (length(closest_index) == 0) {
    next  # Skip to the next iteration if closest_index is empty
  }
  closest_frequency <- coherence_secondhalf_false_temp$frequency[closest_index]
  coherence <- coherence_secondhalf_false_temp$coherence[closest_index]

  secondhalf_false_coh_temp <- cbind.data.frame(heartrate_hz, closest_index, closest_frequency, coherence, ID)
  secondhalf_false_coh <- rbind(secondhalf_false_coh, secondhalf_false_coh_temp)
}

# First we merge the dataframes for plotting & modeling
firsthalf_real_coh <- mutate(firsthalf_real_coh, half = "first", pair_type = "real")
firsthalf_false_coh <- mutate(firsthalf_false_coh, half = "first", pair_type = "false")
secondhalf_real_coh <- mutate(secondhalf_real_coh, half = "second", pair_type = "real")
secondhalf_false_coh <- mutate(secondhalf_false_coh, half = "second", pair_type = "false")

firstsecondhalf_coherence <- rbind(firsthalf_real_coh,
                                   firsthalf_false_coh,
                                   secondhalf_real_coh,
                                   secondhalf_false_coh)

# Add participant column
firstsecondhalf_coherence$participant <- sub("_(.*)", "", firstsecondhalf_coherence$ID)

# Reorder factor levels
firstsecondhalf_coherence$half <- factor(firstsecondhalf_coherence$half, levels = c('first', 'second'))
firstsecondhalf_coherence$pair_type <- factor(firstsecondhalf_coherence$pair_type, levels = c('false', 'real'))

Having computed the coherence values, we plotted (see Fig. @ref(fig:coherencefirstsecondhalfplot)) and modeled the differences between the first and second half of the vocalization, as illustrated in the Figure below. Comparison of the boxplot revealed that the coherence values were higher for real pairs than for false pairs, as shown earlier. However, we did not find significant differences between the first and the second half of the vocalization.

Code

# Define bright contrasting colors
color_first <- "#FF6B35"   # Bright orange
color_second <- "#004E89"  # Deep blue
color_real <- "#E63946"    # Bright red
color_false <- "#06FFA5"   # Bright cyan

# Original spectral plots
coherence_halves_plot_real <- halves_coherence %>%
  dplyr::filter(frequency <= 3) %>%
  dplyr::filter(pair_type == "real") %>%
  ggplot(aes(x=frequency)) +
  geom_path(aes(y=coherence, group = pptrialhalftype, color = half)) +
  theme_cowplot(12) +
  theme(legend.position = "bottom") +
  facet_wrap(~pptrial) +
  ylim(0, 1) +
  geom_vline(data = heartrateline, aes(xintercept = heartrate)) +
  scale_colour_manual(values = c("first" = color_first, "second" = color_second))

coherence_halves_plot_false <- halves_coherence %>%
  dplyr::filter(frequency <= 3) %>%
  dplyr::filter(pair_type == "false") %>%
  ggplot(aes(x=frequency)) +
  geom_path(aes(y=coherence, group = pptrialhalftype, color = half)) +
  theme_cowplot(12) +
  theme(legend.position = "bottom") +
  facet_wrap(~pptrial) +
  ylim(0, 1) +
  geom_vline(data = heartrateline, aes(xintercept = heartrate)) +
  scale_colour_manual(values = c("first" = color_first, "second" = color_second))

# Add participant column to firstsecondhalf_coherence if not present
firstsecondhalf_coherence$participant <- sub("_(.*)", "", firstsecondhalf_coherence$ID)

# Per trial boxplot (original)
A_halves <- ggplot(firstsecondhalf_coherence, aes(x = half, y = coherence, color = half)) +
  geom_boxplot(size = 1) +
  geom_quasirandom() +
  ylab('Coherence value') +
  xlab('Half') +
  scale_colour_manual(values = c("first" = color_first, "second" = color_second)) +
  theme_cowplot() +
  facet_wrap(~pair_type) +
  theme(legend.position = "none")

# Per participant means with connected lines
firstsecondhalf_coherence_means <- firstsecondhalf_coherence %>%
  group_by(participant, half, pair_type) %>%
  summarise(coherence_mean = mean(coherence, na.rm = TRUE), .groups = 'drop')

B_halves <- ggplot(firstsecondhalf_coherence_means, aes(x = half, y = coherence_mean, group = participant)) +
  geom_line(color = "gray60", alpha = 0.6) +
  geom_point(aes(color = half), size = 3, alpha = 0.8) +
  ylab('Mean coherence value') +
  xlab('Half') +
  scale_colour_manual(values = c("first" = color_first, "second" = color_second)) +
  theme_cowplot() +
  facet_wrap(~pair_type) +
  theme(legend.position = "none")

Box plot showing the coherence values for first and second half pairs. The plot is also facetted by real and false pairs.

This was statistically confirmed by our mixed linear regression analyses with participant as random intercept. Whereas the inclusion of pairing type (real pairs vs false pairs) and half (first half vs second half) as main effects improved the model fit, the inclusion of a pairing type x half interaction did not do so. All model coefficients are shown in the tables below.

Code

# Create descriptive statistics table
descriptives_halves <- firstsecondhalf_coherence %>%
  group_by(half, pair_type) %>%
  summarise(
    n = n(),
    Mean = mean(coherence, na.rm = TRUE),
    SD = sd(coherence, na.rm = TRUE),
    SE = SD / sqrt(n),
    CI_lower = Mean - qt(0.975, n-1) * SE,
    CI_upper = Mean + qt(0.975, n-1) * SE,
    .groups = 'drop'
  ) %>%
  mutate(
    `95% CI` = paste0("[", round(CI_lower, 3), ", ", round(CI_upper, 3), "]")
  ) %>%
  select(pair_type, half, n, Mean, SD, `95% CI`) %>%
  mutate(
    Mean = round(Mean, 3),
    SD = round(SD, 3)
  )

knitr::kable(descriptives_halves,
             caption = "Descriptive statistics: Coherence values by half and pair type.",
             col.names = c("Pair Type", "Half", "N", "Mean", "SD", "95% CI")) %>%
  kable_paper("hover", full_width = TRUE)

Descriptive statistics: Coherence values by half and pair type.
Pair Type	Half	N	Mean	SD	95% CI
false	first	125	0.295	0.200	[0.259, 0.33]
real	first	127	0.374	0.233	[0.333, 0.414]
false	second	125	0.295	0.223	[0.255, 0.334]
real	second	127	0.341	0.221	[0.302, 0.38]

Code

# Model the data - test interaction
model_halves_null <- lmer(coherence ~ 1 + (1|participant/ID), data = firstsecondhalf_coherence)
model_halves_main <- lmer(coherence ~ half + pair_type + (1|participant/ID), data = firstsecondhalf_coherence)
model_halves_interaction <- lmer(coherence ~ half * pair_type + (1|participant/ID), data = firstsecondhalf_coherence)

# Compare models
comparison_halves_main <- anova(model_halves_null, model_halves_main)

refitting model(s) with ML (instead of REML)

Code

comparison_halves_interaction <- anova(model_halves_main, model_halves_interaction)

refitting model(s) with ML (instead of REML)

Code

# Create comparison tables
comparison_halves_main_table <- data.frame(
  Model = c("Null (Intercept only)", "Main effects (half + pair type)"),
  npar = comparison_halves_main$npar,
  AIC = round(comparison_halves_main$AIC, 2),
  BIC = round(comparison_halves_main$BIC, 2),
  logLik = round(comparison_halves_main$logLik, 2),
  deviance = round(comparison_halves_main$deviance, 2),
  Chisq = c(NA, round(comparison_halves_main$Chisq[2], 3)),
  Df = c(NA, comparison_halves_main$Df[2]),
  `Pr(>Chisq)` = c(NA, ifelse(comparison_halves_main$`Pr(>Chisq)`[2] < .001, "< .001",
                               round(comparison_halves_main$`Pr(>Chisq)`[2], 3)))
)

comparison_halves_interaction_table <- data.frame(
  Model = c("Main effects only", "Main effects + interaction"),
  npar = comparison_halves_interaction$npar,
  AIC = round(comparison_halves_interaction$AIC, 2),
  BIC = round(comparison_halves_interaction$BIC, 2),
  logLik = round(comparison_halves_interaction$logLik, 2),
  deviance = round(comparison_halves_interaction$deviance, 2),
  Chisq = c(NA, round(comparison_halves_interaction$Chisq[2], 3)),
  Df = c(NA, comparison_halves_interaction$Df[2]),
  `Pr(>Chisq)` = c(NA, ifelse(comparison_halves_interaction$`Pr(>Chisq)`[2] < .001, "< .001",
                               round(comparison_halves_interaction$`Pr(>Chisq)`[2], 3)))
)

# Model coefficients
modelsummary_halves <- summary(model_halves_interaction)$coefficients
colnames(modelsummary_halves) <- c('Estimate', 'SE', 'df', 't-value', 'p-value')
rownames(modelsummary_halves) <- c('Intercept (first half, false pairs)',
                                    'Second half',
                                    'Real pairs',
                                    'Second half × Real pairs')

# Display tables
knitr::kable(comparison_halves_main_table,
             caption = "Model comparison: Main effects of half and pair type on coherence.") %>%
  kable_paper("hover", full_width = TRUE)

Model comparison: Main effects of half and pair type on coherence.
Model	npar	AIC	BIC	logLik	deviance	Chisq	Df	Pr..Chisq.
Null (Intercept only)	4	-107.04	-90.15	57.52	-115.04	NA	NA	NA
Main effects (half + pair type)	6	-115.41	-90.07	63.70	-127.41	12.371	2	0.002

Code

knitr::kable(comparison_halves_interaction_table,
             caption = "Model comparison: Interaction effect of half × pair type on coherence.") %>%
  kable_paper("hover", full_width = TRUE)

Model comparison: Interaction effect of half × pair type on coherence.
Model	npar	AIC	BIC	logLik	deviance	Chisq	Df	Pr..Chisq.
Main effects only	6	-115.41	-90.07	63.7	-127.41	NA	NA	NA
Main effects + interaction	7	-114.20	-84.65	64.1	-128.20	0.798	1	0.372

Code

knitr::kable(format(round(modelsummary_halves, digits = 3)),
             caption = "Model coefficients: Effects of half and pair type on coherence values.") %>%
  kable_paper("hover", full_width = TRUE)

Model coefficients: Effects of half and pair type on coherence values.
	Estimate	SE	df	t-value	p-value
Intercept (first half, false pairs)	0.296	0.025	48.933	11.991	0.000
Second half	0.000	0.026	374.973	-0.009	0.993
Real pairs	0.079	0.026	376.438	3.045	0.002
Second half × Real pairs	-0.033	0.037	374.973	-0.890	0.374

Exploratory analyses

In this section, we performed a pair of exploratory analyses on our data without a-prior expectations.

Is the strength of the heart-voice coupling related to heart rate?

For this question, we first compute the heart rate from the EMG signal for each trial via Fast Fourier Transform (FFT) and convert it to the more usual beats per minute (bpm).

Before the model is computed between heart rate and coherence for expiration noise and EMG signal, a plot (see Fig. @ref(fig:correlationcoherenceheartrate)) visualizes their relationship.

Code

#convert heartrate from Hz to bpm
heartrate_coh <- heartrate_coh %>%
  mutate(heartrate_bpm = heartrate_hz * 60)
#create participant column from ID
heartrate_coh$participant <- sub("_(.*)", "", heartrate_coh$ID)

#plot the relationship
correlation_coherence_heartrate <- ggplot(heartrate_coh, aes(y = coherence, color = participant)) +
  geom_point(aes(x = heartrate_bpm), size = 3, alpha = 0.5) +
  geom_smooth(aes(x = heartrate_bpm), color = 'black', method = 'lm') +
  theme_bw() +
  ylab('Coherence value') +
  xlab('Heart rate per trial (in bpm)') +
  theme_cowplot()

Plot showing the correlation between the heart rate by trial in bpm (on x-axis) and coherence values ranging from 0 to 1 (on y-axis). Color is used to show different participants.

We have used ID (combination of participant and trial) as a unique identifier for each trial as a random factor above. Here, this is not possible because we have less observations, so each ID only has 1 data point from heartrate or coherence respectively. Therefore, we will use participant as a random intercept.

Code

#model the data, compare to null model
model_coherence_heartrate_null <- lmer(coherence ~ 1 + (1|participant), data = heartrate_coh)
model_coherence_heartrate <- lmer(coherence ~ heartrate_bpm + (1|participant), data = heartrate_coh)
comparison_realfalse_coherence <- anova(model_coherence_heartrate_null,model_coherence_heartrate)


#also save the model output in a dataframe
modelsummary_coherence_heartrate <- summary(model_coherence_heartrate)$coefficients
colnames(modelsummary_coherence_heartrate) <- c('Estimate', 'SE', 'df', 't-value', 'p-value')
rownames(modelsummary_coherence_heartrate) <- c('Intercept', 'Effect of heartrate (in bpm)')

With a mixed linear regression we modeled the variation in coherence (using R-package lme4), with participant as random intercept (for more complex random slope models did not converge). A model with heart rate in bpm as predictor did not explain more variance than a base model predicting the overall mean, Change in Chi-Squared (1.00) = 2.56, p = 0.10988.

Model coefficients are shown in Table S@ref(tab:modelcoherencerebyheartrate). We do not find an effect for heart rate on coherence values.

Effects of heartrate on coherence values.
	Estimate	SE	df	t-value	p-value
Intercept	0.224	0.112	91.862	1.998	0.049
Effect of heartrate (in bpm)	0.002	0.001	105.575	1.589	0.115

Does the onset of expiration noise coincide with a heart beat?

To address this question, we used a less constrained version of the data used above. For the amplitude envelope detrending to work properly, we had to remove sections of silence in the beginning and the end (before onset and after offset of vocalization) and thus opted for using only vocalization from 1000 to 6000 ms. As we were interested in the onset of expiration here, we had to include any time from 0 ms, i.e. right from when the cue to expire was given. Using the velocity of the envelope, we had calculated the onset of expiration above. Measured in relation to the expire cue (at 0 ms), the median value of it is NA ms with a standard deviation of NA ms.

We then located the closest peak in the EMG signal. For this, we first located all the peaks in the EMG signal via pracma::findpeaks(), using a minimum distance between peaks of 0.7 times the duration of one heart cycle (which we derived from the heart rate, that we have from FFTs; e.g. if heart rate is 60 bpm or 1 Hz, duration would be 1 s) and a minimum peak height of 0, as we scaled the signals by trials. We then located the peak closest to the velocity peak, as well as computed the distance between the two.

Code

#prepare data in tsl_fulltime
tsl_fulltime <- tsl_fulltime %>%
  mutate(pptrial = stringr::str_replace(uniquetrial, "(\\d+)_+(\\d+)", "\\2_\\1"))

#transform heartrate from Hz to cycle length in s; we'll use that to determine minimum distance between peaks
tr_wd_nomov <- tr_wd_nomov %>%
  mutate(heartrate_EMG_duration = 1 / heartrate_EMG_hz)

#since we're using tsl_fulltime here, we also have to modify it, so that it uses the correct EMG signal
tsl_fulltime <- tsl_fulltime %>%
  mutate(EMG = ifelse(pp == 9, rectus_abdominis, pectoralis_major))

#set up loop for finding EMG peaks and then identifying the one closest to velocity peak
pectoralis_peaks_temp <- data.frame()
pectoralis_peaks <- data.frame()

 for(ID in tr_wd_nomov$pptrial)
 {
   heartrate_duration <- tr_wd_nomov$heartrate_EMG_duration[tr_wd_nomov$pptrial==ID] #Note for Wim: for this, we can also use the mean distance between peaks, either via pectoralis_peaks$index (then you directly have index) or pectoralis_peaks$time
   if(length(which(tsl_fulltime$pptrial == ID))==0) {next}
   index_duration <- 0.0004 #temporal distance between rows is 0.0004 s, as sampling rate is 2500 Hz
   heartrate_duration_indices <- heartrate_duration / index_duration

   tsl_fulltime_temp <- tsl_fulltime %>%
     dplyr::filter(pptrial == ID)

   #find peaks: we use 0.7 * duration of one heart cycle; also minpeakheight is set to 0
   if(is.na(heartrate_duration_indices)){next}
   pectoralis_peaks_temp <- data.frame(pracma::findpeaks(tsl_fulltime_temp$EMG, minpeakdistance = heartrate_duration_indices * 0.7, minpeakheight = 0))

   pectoralis_peaks_temp <- pectoralis_peaks_temp %>%
   dplyr::rename(height = X1,
                 index = X2,
                 onset = X3,
                 end = X4) %>%
  dplyr:: arrange(index)

  pectoralis_peaks_temp <- pectoralis_peaks_temp %>%
     mutate(time = index * index_duration)

  pectoralis_peaks_temp$velocity_peak <- tr_wd_nomov %>%
    dplyr::filter(pptrial == ID) %>%
    pull(highest_veloc_peak_time) / 1000

  #use vocalization onset; computed above via peak velocity of amplitude envelope of vocalization
   tr_wd_nomov$closest_EMG_peak_fft[tr_wd_nomov$pptrial==ID] <- pectoralis_peaks_temp$time[which.min(abs(pectoralis_peaks_temp$time - pectoralis_peaks_temp$velocity_peak))] * 1000

   pectoralis_peaks_temp$pptrial <- ID
   pectoralis_peaks <- rbind(pectoralis_peaks, pectoralis_peaks_temp)
 }


tr_wd_nomov <- tr_wd_nomov %>%
  mutate(ampEMG_peakdistance = closest_EMG_peak_fft - highest_veloc_peak_time)

### now also get the distance for false pairs
#we already have envelope velocity peaks for each trial in pectoralis_peaks$velocity_peak
#we also already have all the peaks for the EMG signals stored there
#all we have to do is use the shuffling to assign the false pair velocity peaks
#add pptrial_shuffled to tsl_fulltime
shuffleddf <- tr_wd_nomov %>%
  select(c(pptrial, pptrial_shuffled))
tsl_fulltime_merged <- merge(tsl_fulltime, shuffleddf, by = "pptrial", all.x = TRUE)

# INITIALIZE COLUMNS BEFORE THE LOOP
tr_wd_nomov$heartrate_EMG_duration_shuffled <- NA
tr_wd_nomov$closest_EMG_peak_fft_shuffled <- NA

#set up loop for finding EMG peaks and then identifying the one closest to velocity peak
pectoralis_peaks_shuffled_temp <- data.frame()
pectoralis_peaks_shuffled <- data.frame()

for(shuffleID in tr_wd_nomov$pptrial_shuffled)
{
  #get the corresponding ID from pptrial
  ID <- tr_wd_nomov$pptrial[tr_wd_nomov$pptrial_shuffled == shuffleID]

  #pick the heart rate_duration from the randomly assigned EMG signal
  heartrate_duration <- tr_wd_nomov$heartrate_EMG_duration[tr_wd_nomov$pptrial==shuffleID]

  # CHECK THIS FIRST before using it
  if(is.na(heartrate_duration)) {next}

  tr_wd_nomov$heartrate_EMG_duration_shuffled[tr_wd_nomov$pptrial_shuffled==shuffleID] <- heartrate_duration

  index_duration <- 0.0004 #temporal distance between rows is 0.0004 s, as sampling rate is 2500 Hz
  heartrate_duration_indices <- heartrate_duration / index_duration

  if(is.na(heartrate_duration_indices)){next}

  tsl_fulltime_temp <- tsl_fulltime_merged %>%
    dplyr::filter(pptrial == shuffleID)

  #find peaks: we use 0.7 * duration of one heart cycle; also minpeakheight is set to 0
  pectoralis_peaks_shuffled_temp <- data.frame(pracma::findpeaks(tsl_fulltime_temp$EMG, minpeakdistance = heartrate_duration_indices * 0.7, minpeakheight = 0))

  pectoralis_peaks_shuffled_temp <- pectoralis_peaks_shuffled_temp %>%
    dplyr::rename(height = X1,
                  index = X2,
                  onset = X3,
                  end = X4) %>%
    dplyr::arrange(index)

  pectoralis_peaks_shuffled_temp <- pectoralis_peaks_shuffled_temp %>%
    mutate(time = index * index_duration)

  pectoralis_peaks_shuffled_temp$velocity_peak <- tr_wd_nomov %>%
    dplyr::filter(pptrial_shuffled == shuffleID) %>%
    pull(highest_veloc_peak_time) / 1000

  #use vocalization onset; computed above via peak velocity of amplitude envelope of vocalization
  ind <- which.min(abs(pectoralis_peaks_shuffled_temp$time - pectoralis_peaks_shuffled_temp$velocity_peak))
  if(length(ind) == 0) {next}
  tr_wd_nomov$closest_EMG_peak_fft_shuffled[tr_wd_nomov$pptrial_shuffled==shuffleID] <- pectoralis_peaks_shuffled_temp$time[ind] * 1000

  pectoralis_peaks_shuffled_temp$pptrial_shuffled <- shuffleID
  pectoralis_peaks_shuffled <- rbind(pectoralis_peaks_shuffled, pectoralis_peaks_shuffled_temp)
}

#finally, compute the distance between the randomly assigned closest EMG peak and the highest velocity peak time
tr_wd_nomov <- tr_wd_nomov %>%
  mutate(ampEMG_peakdistance_shuffled = closest_EMG_peak_fft_shuffled - highest_veloc_peak_time)

We found the median value of the distance between velocity peak and the closest peak in the EMG signal to be NA ms, with a standard deviation of NA ms. We computed that by subtracting the timing of the onset of vocalization from the timing of the closest EMG peak/heart beat. This way, positive values in the distance could be interpreted as the closes heart beat occuring later than the onset of vocalization. But first, we visualized the peaks to see if they are sensible.

Code

pectoralis_peaks <- pectoralis_peaks %>%
  mutate(time_ms = round(time * 1000))

allpectoralis_peaks <- ggplot() +
  geom_path(data = tsl_fulltime, aes(x=time_ms, y=EMG, color='pectoralis major')) +
  geom_point(data = pectoralis_peaks, aes(y = height, x = time_ms), color = "black", size = 0.5) +
  geom_text(data = tr_wd_nomov, aes(label = paste0(round(heartrate_EMG_hz, 2), " Hz"), x = 3500, y = 10), size = 3) +
  geom_vline(data = tr_wd_nomov, aes(xintercept = highest_veloc_peak_time), linetype = 2) + #add line about velocity peaks
  #geom_vline(data = tr_wd_nomov, aes(xintercept = highest_veloc_peak_time_false), color = "red") +
  scale_color_manual(values = colors_mus) +
  scale_y_continuous(name = "Pectoralis major", limits = c(-5, 47)) + #,limits = c(-3, 3)
  #scale_x_continuous(limits = c(0, 2000)) +
  #theme(legend.position = c(0.8, 1)) +
  geom_hline(yintercept= 0) +
  #xlim(0, 7000) +
  xlab('time (ms)') +
  theme_cowplot(12) +
  background_grid() +
  theme(legend.position = "none",
        axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) +
  facet_wrap(~pptrial)

Warning: Removed 2 rows containing missing values or values outside the scale range
(`geom_point()`).

Warning: Removed 2 rows containing missing values or values outside the scale range
(`geom_vline()`).

Plot showing the pectoralis major EMG signal with the automatically detected peaks overlaid as dots. The dashed line indicates the onset of vocalization for that particular trial.

Next, we normalized the distance by the respective duration of one heart cycle and thus transformed it to degrees. We then plotted the density of the respective degrees into a straight plot (see Fig. @ref(fig:degreesflat)) where we include both negative and positive values. We also show the density distribution in a circular plot, where the values are absolutized (see Fig. @ref(fig:degreescircle)).

Code

tr_wd_nomov <- tr_wd_nomov %>%
  mutate(heartrate_EMG_duration_ms = heartrate_EMG_duration * 1000)

tr_wd_nomov <- tr_wd_nomov %>%
  mutate(heartrate_EMG_duration_shuffled_ms = heartrate_EMG_duration_shuffled * 1000)

#for this, we use the formula from https://osf.io/sncx5 for relative phase analysis
tr_wd_nomov <- tr_wd_nomov %>%
  mutate(phase = (2 * pi * ampEMG_peakdistance) / heartrate_EMG_duration_ms)

#calculate relphase
#data$relphase <- (((2*pi)*data$D/data$IBI)*180)/pi
tr_wd_nomov <- tr_wd_nomov %>%
  mutate(degree = (((2 * pi) * ampEMG_peakdistance / heartrate_EMG_duration_ms) * 180) / pi)

tr_wd_nomov <- tr_wd_nomov %>%
  mutate(degree_false = (((2 * pi) * ampEMG_peakdistance_shuffled / heartrate_EMG_duration_shuffled_ms) * 180) / pi)


#create new dataframe for plotting
tr_wd_nomov_degrees <- reshape2::melt(tr_wd_nomov, measure.vars = c("degree", "degree_false"))
tr_wd_nomov_degrees$variable <- factor(tr_wd_nomov_degrees$variable,
                             levels = c("degree_false", "degree"),
                             labels = c("real pairs", "false pairs"))

#also plot it straight, but including negative values
density_degrees <- tr_wd_nomov_degrees %>%
  ggplot(aes(x=value)) +
  geom_density(aes(color = variable, fill = variable), size = 1.5, alpha = 0.5) +
  # geom_density(aes(x=degree), color="blue", size = 2.5, fill="blue", alpha = 0.4) +
  # geom_density(aes(x=degree_false), color="red", size = 2.5, fill="red", alpha = 0.4) +
  theme_cowplot(12) +
  ylab("Density") +
  xlab("Degrees") +
  scale_x_continuous(breaks=c(-360, -270, -180, -90, 0, 90, 180, 270, 360)) +
  geom_vline(aes(xintercept = -360), linetype = 2) +
  geom_vline(aes(xintercept = -270), linetype = 2) +
  geom_vline(aes(xintercept = -180), linetype = 2) +
  geom_vline(aes(xintercept = -90), linetype = 2) +
  geom_vline(aes(xintercept = 0), linetype = 1, size = 1) +
  geom_vline(aes(xintercept = 90), linetype = 2) +
  geom_vline(aes(xintercept = 180), linetype = 2) +
  geom_vline(aes(xintercept = 270), linetype = 2) +
  geom_vline(aes(xintercept = 360), linetype = 2) +
  scale_colour_brewer(palette = "Set1")+
  theme(legend.position = "bottom", legend.box = "horizontal", legend.justification = "center",
        legend.title = element_blank())

Warning: Removed 6 rows containing non-finite outside the scale range
(`stat_density()`).

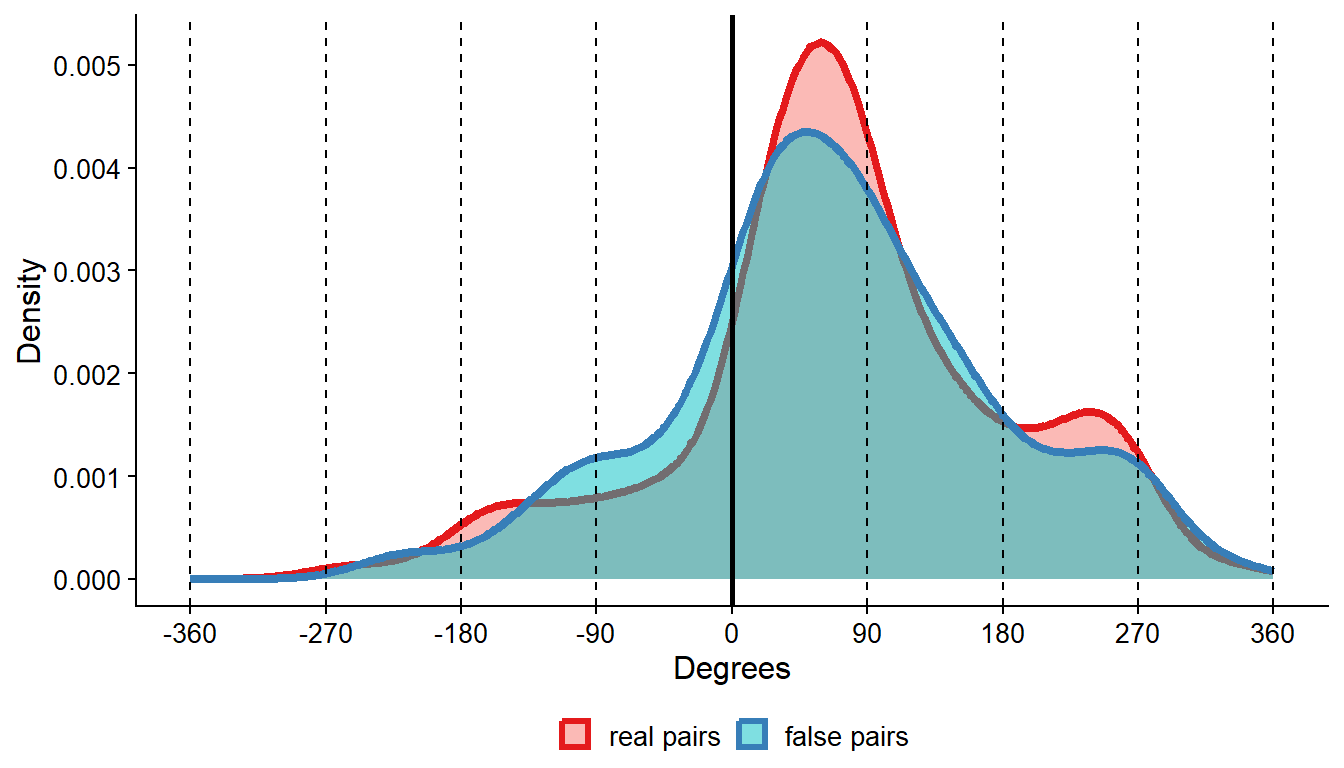

Density plot showing the distance distance between velocity peak and the nearest EMG peak. Distance was transformed to degrees. The solid black line indicates the velocity peak as a reference point. Blue is for real pairs and red for false pairs. The plot includes both negative (i.e. closest heart beat occurring before onset of vocalization) and positive values (i.e. closest heart beat occurring after onset of vocalization)

References

Drake, Janessa D. M., and Jack P. Callaghan. 2006. “Elimination of Electrocardiogram Contamination from Electromyogram Signals: An Evaluation of Currently Used Removal Techniques.” Journal of Electromyography and Kinesiology 16 (2): 175–87. https://doi.org/10.1016/j.jelekin.2005.07.003.

--- title: "Dissociating mechanisms of heart-voice coupling" description: | Extended results: Heart-expiration coupling author: - name: Marijn Hafkamp email: marijn.hafkamp@gmail.com corresponding: yes url: https://orcid.org/0000-0002-3719-7586 affiliation: Radboud University Nijmegen, Donders Institute for Brain, Cognition, and Behaviour orcid_id: 0000-0002-3719-7586 - name: Raphael Werner url: https://raphael-werner.github.io/ affiliation: Donders Institute for Brain, Cognition, and Behaviour orcid_id: 0000-0002-4080-7883 - name: Linda Drijvers url: https://www.leibniz-zas.de/de/personen/details/burchardt-lara-sophie/lara-sophie-burchardt affiliation: Donders Institute for Brain, Cognition, and Behaviour orcid_id: 0000-0001-9154-7033 - name: Luc Selen url: https://www.ru.nl/sensorimotorlab/people/current-members/luc-selen/ affiliation: Donders Institute for Brain, Cognition, and Behaviour orcid_id: 0000-0001-5774-5415 - name: Wim Pouw corresponding: yes email: w.pouw@tilburguniversity.edu url: https://wimpouw.com/ affiliation: Tilburg University, Department of Computational Cognitive Science orcid_id: 0000-0003-2729-6502 address: Thomas van Aquinolaan 4, 6525 AJ Nijmegen, The Netherlands --- This is a fully computationally reproducible manuscript written in Rmarkdown. It contains the extended results and supplementary information of "Dissociating mechanisms of heart-voice coupling". For clarity, the section of the paper corresponding to the code chunks is indicated in the right. Code chunks are hidden by default, but can be made visible by clicking "Show code". The full dataset is available at the Donders Repository and forms the input for these scripts [https://data.ru.nl/collections/di/dcc/DSC_2023.00002_259](https://data.ru.nl/collections/di/dcc/DSC_2023.00002_259). ```{r, include = FALSE, code_folding = TRUE} set.seed(42) knitr::opts_chunk$set(cache.extra = knitr::rand_seed) knitr::opts_knit$set(root.dir = normalizePath(".")) basefolder <- getwd() # Use current working directory ``` ```{r setup, echo = FALSE, message = FALSE, warning = FALSE, code_folding = "Show code setting up the packages"} #R-packages library(papaja) #for Rmarkdown template for APA(ish) manuscript library(distill) #for html output library(ggplot2) #for plotting library(gridExtra) #for plotting in panels library(knitr) #for document generation library(magick) #for plots library(cowplot) #for plots library(plyr) #for revalue library(tinytex) #for outputting pdfs library(readr) #for data reading library(bookdown) #for crossreferencing library(rstudioapi) #for setting file paths library(kableExtra) #for producing nicer tables library(dplyr) #for data wrangling library(ggbeeswarm) #for beeswarm plots library(modelsummary) #for handling model summary tables library(lme4) #for statistical modeling library(lmerTest) #for statistical modeling library(emmeans) #for post-hoc analysis library(broom.mixed) #for turning fitted models into tidy data frames library(viridis) #for viridis colorway library(lmtest) #for Granger causality test r_refs("references.bib") ``` ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code loading and preparing the data", message = FALSE} #Local data localfolder <- "D:/Research_projects/veni_data_local/expire/exp100/"#"This points to your local data that you have downloaded from SURF" #lets set all the data folders rawd <- paste0(localfolder, 'Trials/') #raw trial level data procd <- paste0(localfolder, 'Processed/triallevel/') #processed data folder procdtot <- paste0(localfolder, 'Processed/complete_datasets/') #processed data folder daset <- paste0(localfolder, 'Dataset/') #dataset folder meta <- paste0(localfolder, 'Meta/') #Meta and trial data #load in the trialinfo data (containing info like condition order, trial number etc) trialf <- list.files(meta, pattern = 'triallist*') triallist <- data.frame() for(i in trialf) { tr <- read.csv(paste0(meta, i), sep = ';') tr$ppn <- parse_number(i) triallist <- rbind.data.frame(triallist,tr) } #make corrections to trial list due to experimenter errors # p10 trial 21 run with a weight triallist$weight_condition[triallist$ppn==10 & triallist$trial=="21"] <- 'weight' #triallist$trialindex[triallist$ppn==10 & triallist$trial=="21"] # p14 double check trial "51", "52", "53" were all weight condition triallist$weight_condition[triallist$ppn==14 & triallist$trial%in% c("51", "52", "53")] <- 'weight' #triallist$trialindex[triallist$ppn==14 & triallist$trial%in% c("51", "52", "53")] #load in the metainfo data (containing info like gender, handedness, etc) mtf <- list.files(meta, pattern = 'bodymeta*') mtlist <- data.frame() for(i in mtf) { tr <- read.csv(paste0(meta, i), sep = ';') mtlist <- rbind.data.frame(mtlist,tr) } mtlist$ppn <- parse_number(as.character(mtlist$ppn)) # triallist combines all trial-related CSVs into a single dataframe. # mtlist combines all metadata from multiple files into a single dataframe # triallist and mtlist are now in memory and ready to be analyzed in later chunks. ``` ## Signal preparation ### EMG pre-processing Rather than filtering the four sEMG signals (erector spinae, infraspinatus, pectoralis major and rectus abdominis) to reduce heart rate artifacts [@drakeEliminationElectrocardiogramContamination2006], we were interested in the reflection of heart rate as present in the sEMG signals. Accordingly, we removed any higher-frequency components from the signal and retained low-frequency bands, while removing the very low components to avoid baseline drift. This was done by high-pass filtering the signal at 0.75 Hz using a zero-phase 4th order Butterworth filter. We then full-wave rectified the EMG signal and applied a zero-phase low-pass 4th order Butterworth filter at 3 Hz. We padded the signals upon filtering to avoid edge effects. In other words, the pass-band from 0.75 to 3 Hz allowed us to cover any heart rates from 45 to 180 beats per minute. ```{r, EMGpreprocess, warning = FALSE, echo = TRUE, code_folding = "Show code creating function for preprocessing EMG data", message = FALSE} # load in the data and save it library(signal) library(ggrepel) # preprocessing functions butter.it <- function(x, samplingrate, order, cutoff, type = "low") { nyquist <- samplingrate/2 xpad <- c(rep(0, 1000), x, rep(0,1000)) #add some padding bf <- butter(order,cutoff/nyquist, type=type) xpad <- as.numeric(signal::filtfilt(bf, xpad)) x <- xpad[1000:(1000+length(x)-1)] #remove the padding } #rectify and high and low pass EMG signals reclow.it <- function(emgsignal, samplingrate, cutoffhigh, cutofflow) { #high pass filter output <- butter.it(emgsignal, samplingrate=samplingrate, order=4, cutoff = cutoffhigh, type = "high") #rectify and low pass output <<- butter.it(abs(output), samplingrate=samplingrate, order=4, cutoff= cutofflow, type = "low") } ########################################### ####################################LOAD IN EMG DATA EMGdata <- list.files(rawd, pattern = '*Dev_1.csv') ####################################SET common colors for muscles col_pectoralis <- '#e7298a' col_infraspinatus <- '#7570b3' col_rectus <- '#d95f02' col_erector <- '#1b9e77' colors_mus <- c("pectoralis major" = col_pectoralis, "infraspinatus" = col_infraspinatus, "rectus abdominis" = col_rectus, "erector spinae" = col_erector) #show an example emgd <- read.csv(paste0(rawd, EMGdata[822])) colnames(emgd) <- c('time_s', 'infraspinatus', 'rectus_abdominis', 'pectoralis_major', 'erector_spinae', 'empty1', 'empty2', 'empty3', 'empty4', 'respiration_belt', 'button_box') samplingrate <- 1/mean(diff(emgd$time_s)) nyquistemg <- samplingrate/2 ``` When applying the filter as specified above, this is what the sEMG signal looked like for a participant in the no movement condition. ```{r, EMGpreprocessnomovement, warning = FALSE, echo = TRUE, code_folding = "Show code preprocessing EMG data", message = FALSE} #show another example, now from no movement condition #we use p18, trial 73 #grep("p18_trial_73_BrainAmpSeries-Dev_1.csv", EMGdata) emgdnomov <- read.csv(paste0(rawd, EMGdata[824])) colnames(emgdnomov) <- c('time_s', 'infraspinatus', 'rectus_abdominis', 'pectoralis_major', 'erector_spinae', 'empty1', 'empty2', 'empty3', 'empty4', 'respiration_belt', 'button_box') samplingrate <- 1/mean(diff(emgdnomov$time_s)) nyquistemg <- samplingrate/2 emgdnomov$time_s <- emgdnomov$time_s-min(emgdnomov$time_s) # normalize time #example with high-pass filter at 0.75 and low-pass filter 3 Hz # cutoffhigh = high-pass filter, cutofflow = low-pass filter emgdnomov$pectoralis_major_sm_h <- reclow.it(emgdnomov$pectoralis_major, samplingrate= samplingrate, cutoffhigh = 0.75, cutofflow = 3) emgdnomov$infraspinatus_sm_h <- reclow.it(emgdnomov$infraspinatus, samplingrate= samplingrate, cutoffhigh = 0.75, cutofflow = 3) emgdnomov$erector_spinae_sm_h <- reclow.it(emgdnomov$erector_spinae, samplingrate= samplingrate, cutoffhigh = 0.75, cutofflow = 3) emgdnomov$rectus_abdominis_sm_h <- reclow.it(emgdnomov$rectus_abdominis, samplingrate= samplingrate, cutoffhigh = 0.75, cutofflow = 3) #example trial filteredEMGnomov <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) + geom_path(aes(y=infraspinatus_sm_h, color = 'infraspinatus')) + geom_path(aes(y=pectoralis_major_sm_h, color = 'pectoralis major')) + geom_path(aes(y=rectus_abdominis_sm_h, color = 'rectus abdominis')) + geom_path(aes(y=erector_spinae_sm_h, color = 'erector spinae')) + ggtitle('Filtered EMG, 0.75-3 Hz') + scale_color_manual(values = colors_mus) filteredEMGnomov <- filteredEMGnomov + labs(x = "time in seconds", y = "EMG rectified", color = "Legend") + xlab('time in seconds') + ylab('EMG rectified') + theme_cowplot(12) + theme(legend.position = "right") filteredEMGnomovinfra <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) + geom_path(aes(y=infraspinatus_sm_h, color = 'infraspinatus')) + ggtitle('infraspinatus') + scale_color_manual(values = colors_mus) + labs(x = "time in seconds", y = "EMG rectified", color = "Legend") + xlab('time in seconds') + ylab('EMG rectified') + ylim(0, 150) + theme_cowplot(12) + theme(legend.position = "none") filteredEMGnomovpec <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) + geom_path(aes(y=pectoralis_major_sm_h, color = 'pectoralis major')) + ggtitle('pectoralis major') + scale_color_manual(values = colors_mus) + labs(x = "time in seconds", y = "EMG rectified", color = "Legend") + xlab('time in seconds') + ylab('EMG rectified') + ylim(0, 150) + theme_cowplot(12) + theme(legend.position = "none") filteredEMGnomovrectus <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) + geom_path(aes(y=rectus_abdominis_sm_h, color = 'rectus abdominis')) + ggtitle('rectus abdominis') + scale_color_manual(values = colors_mus) + labs(x = "time in seconds", y = "EMG rectified", color = "Legend") + xlab('time in seconds') + ylab('EMG rectified') + ylim(0, 150) + theme_cowplot(12) + theme(legend.position = "none") filteredEMGnomoverector <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) + geom_path(aes(y=erector_spinae_sm_h, color = 'erector spinae')) + ggtitle('erector spinae') + scale_color_manual(values = colors_mus) + labs(x = "time in seconds", y = "EMG rectified", color = "Legend") + xlab('time in seconds') + ylab('EMG rectified') + ylim(0, 150) + theme_cowplot(12) + theme(legend.position = "none") ``` ```{r EMGnomovsmoothing, echo=FALSE, fig.cap = "Example of heart rate/ECG signal's presence in the four different sEMG signals. This example is from the no movement condition."} grid.arrange(filteredEMGnomov) ``` Fig.\@ref(fig:EMGnomovsmoothing) shows the four different, filtered sEMG signals in one plot. To further inspect, which ones are more apt for studying heart rate, we have separated the signals in Fig.\@ref(fig:EMGnomovsmoothingseparate).As becomes clear from these graphs, both the pectoralis major and rectus abdominis signals clearly reflect the cardiac activity. ```{r EMGnomovsmoothingseparate, echo=FALSE, fig.cap = "Example of heart rate/ECG signal's presence in the sEMG signals. The plot shows the raw rectified high-pass filtered EMG. This example shows a no movement. The heart rate peaks are especially visible in the sEMG of the pectoralis major and the rectus abdominis, and less strongly in erector spinae and infraspinatus. The latter are attached on the participant's back and more distant to the heart."} grid.arrange(filteredEMGnomovpec, filteredEMGnomovrectus, filteredEMGnomoverector, filteredEMGnomovinfra, nrow = 2) ``` ### Acoustics pre-processing For acoustics we extracted the smoothed amplitude envelope. For the envelope we applied a Hilbert transform to the waveform signal of the vocal intensity, then took the complex modulus to create a 1D time series, which we then resampled at 2,500 Hz, and smoothed with a Hann filter based on a Hanning Window of 12 Hz. We normalized the amplitude envelope signals within participants before submitting to analyses. ```{r, message = FALSE, warning = FALSE, echo = TRUE, code_folding = "Show code extracting acoustics"} library(rPraat) #for reading in sounds library(dplR) #for applying Hanning library(seewave) #for signal processing general library(wrassp) #for acoustic processing ##################### MAIN FUNCTION TO EXTRACT SMOOTHED ENVELOPE ############################### amplitude_envelope.extract <- function(locationsound, smoothingHz, resampledHz) { #read the sound file into R snd <- rPraat::snd.read(locationsound) #apply the hilbert on the signal hilb <- seewave::hilbert(snd$sig, f = snd$fs, fftw =FALSE) #apply complex modulus env <- as.vector(abs(hilb)) #smooth with a hanning window env_smoothed <- dplR::hanning(x= env, n = snd$fs/smoothingHz) #set undeterminable at beginning and end NA's to 0 env_smoothed[is.na(env_smoothed)] <- 0 #resample settings at desired sampling rate f <- approxfun(1:(snd$duration*snd$fs),env_smoothed) #resample apply downsampled <- f(seq(from=0,to=snd$duration*snd$fs,by=snd$fs/resampledHz)) #let function return the downsampled smoothed amplitude envelope return(downsampled[!is.na(downsampled)]) } ``` ### Data aggregation All signals were sampled at, or upsampled to, 2,500 Hz. Then we aggregated the data by aligning time series in a combined by-trial format to increase ease of combined analyses. We linearly interpolated signals when sample times did not align perfectly. ```{r, echo = TRUE, cache = FALSE, warning = FALSE, message = FALSE, results = FALSE, code_folding = "Show code aggregating the data"} library(pracma) library(zoo) overwrite = FALSE #lets loop through the triallist and extract the files triallist$uniquetrial <- paste0(triallist$trialindex, '_', triallist$ppn) #remove duplicates so that we ignore repeated trials howmany_repeated <- sum(duplicated(triallist$uniquetrial)) triallist <- triallist[!duplicated(triallist$uniquetrial),] for(ID in triallist$uniquetrial) { #print(paste0('working on ', ID)) #debugging #ID <- triallist$uniquetrial[27] #I commented that out bc it was so many lines triallist_s <- triallist[triallist$uniquetrial==ID,] ##load in row triallist pp <- triallist_s$ppn pps <- triallist_s$ppn if((pp == '41') | (pp == '42')){pps <- '4'} gender <- mtlist$sex[mtlist$ppn==pps] hand <- mtlist$handedness[mtlist$ppn==pps] triali <- triallist_s$trialindex if(!file.exists(paste0(procd, 'pp_', pp, '_trial_', triali, '_aligned.csv')) | overwrite == TRUE) { ######load in EMG and resp belt EMGr <- read.csv(paste0(rawd, 'p', pp, '_trial_',triali, '_BrainAmpSeries-Dev_1.csv')) channels <- c('time_s', 'infraspinatus', 'rectus_abdominis', 'pectoralis_major', 'erector_spinae', 'empty1', 'empty2', 'empty3', 'empty4', 'respiration_belt', 'button_box') colnames(EMGr) <- channels #only keep the relevant vectors EMGr <- cbind.data.frame(EMGr$time_s,EMGr$respiration_belt, EMGr$infraspinatus, EMGr$rectus_abdominis,EMGr$pectoralis_major, EMGr$erector_spinae) colnames(EMGr) <- channels[c(1, 10, 2, 3, 4, 5)] #rename EMGsamp <- 1/mean(diff(EMGr$time_s-min(EMGr$time_s))) #smooth #note the respiration belt is not installed now, but if we resolve technical issues we might add it EMGr$respiration_belt <- butter.it(EMGr$respiration_belt, samplingrate = EMGsamp, order = 2, cutoff = 30) #smooth EMG with described settings EMGr[,3:6] <- apply(EMGr[,3:6], 2, function(x) reclow.it(scale(x, scale = FALSE, center =TRUE), samplingrate= EMGsamp, cutoffhigh = 0.75, cutofflow = 3))#this was changed for getting heart from EMG; used to be high = 30, low = 20 #CHANGECONF we center before we smooth now #########load in acoustics locsound <- paste0(rawd, 'p', pp, '_trial_',triali, '_Micdenoised.wav') if(!file.exists(locsound)){print(paste0('this mic file does not exist: ', locsound))} if(file.exists(locsound)){ env <- amplitude_envelope.extract(locationsound=locsound, smoothingHz = 12, resampledHz = 2500) acoustics <- cbind.data.frame(env) acoustics$f0 <- NA acoustics$time_s <- seq(0, (nrow(acoustics)-1)*1/2500, 1/2500) duration_time <- (max(acoustics$time_s)-min(acoustics$time_s)) #note down duration time of this trial #########load in motion mt <- read.csv(paste0(rawd, 'p', pp, '_trial_',triali, '_video_raw_body.csv')) if(hand == 'r'){mov <- cbind.data.frame(mt$X_RIGHT_WRIST, mt$Y_RIGHT_WRIST, mt$Z_RIGHT_WRIST)} #CHANGECONF change we also take depth if(hand == 'l'){mov <- cbind.data.frame(mt$X_LEFT_WRIST, mt$Y_LEFT_WRIST, mt$Z_RIGHT_WRIST)} #CHANGECONF we also take depth colnames(mov) <- c('x_wrist', 'y_wrist', 'z_wrist') mov$y_wrist <- mov$y_wrist*-1 #flip axes so that higher up means higher values (check) #filter movements mov[,1:3] <- apply(mov[,1:3], 2, FUN=function(x) butter.it(x, order=4, samplingrate = 60, cutoff = 10, type='low')) #########load in balanceboard bb <- read.csv(paste0(rawd, 'p', pp, '_trial_',triali, '_BalanceBoard_stream.csv')) colnames(bb) <- c('time_s', 'left_back', 'right_forward', 'right_back', 'left_forward') bbsamp <- 1/mean(diff(bb$time_s - min(bb$time_s))) bb[,2:5] <- apply(bb[,2:5], 2, function(x) sgolayfilt(x, 5, 51)) COPX <- (bb$right_forward+bb$right_back)-(bb$left_forward+bb$left_back) COPY <- (bb$right_forward+bb$left_forward)-(bb$left_back+bb$left_back) bb$COPXc <- sgolayfilt(c(0, diff(COPX)), 5, 51) bb$COPYc <- sgolayfilt(c(0, diff(COPY)), 5, 51) bb$COPc <- sqrt(bb$COPXc^2 + bb$COPYc^2) #########combine everything #combined acoustics and EMG(+resp) EMGr$time_ss <- EMGr$time_s-min(EMGr$time_s) ac_emg <- merge(acoustics, EMGr, by.x = 'time_s', by.y = 'time_ss', all=TRUE) ac_emg[,4:ncol(ac_emg)] <- apply(ac_emg[,4:ncol(ac_emg)], 2, function(y) na.approx(y, x=ac_emg$time_s, na.rm = FALSE)) #do this only for 4 EMG, name them ac_emg <- ac_emg[!is.na(ac_emg$env),] ac_emg$time_s <- ac_emg$time_s + min(ac_emg[,4],na.rm=TRUE) #get the original time ac_emg <- ac_emg[!is.na(ac_emg$time_s),-4] #remove the centered time variable, and remove time NA at the end #now add balance board ac_emg_bb <- merge(ac_emg, bb[,c(1, 6:8)], by.x='time_s', by.y='time_s', all= TRUE) ac_emg_bb[,9:11] <- apply(ac_emg_bb[,9:11], 2, function(y) na.approx(y, x=ac_emg_bb$time_s, na.rm = FALSE)) ac_emg_bb <- ac_emg_bb[!is.na(ac_emg_bb$env), ] ac_emg_bb <- ac_emg_bb[!is.na(ac_emg_bb$time_s),-4] #now add the final motion (which is thereby upsampled to 2500 hertz) start_time <- min(ac_emg_bb$time_s,na.rm=TRUE) mov$time_s <- start_time+seq(0, duration_time-(duration_time /nrow(mov)), by= duration_time /nrow(mov)) ac_emg_bb_m <- merge(ac_emg_bb, mov, by.x='time_s', by.y='time_s', all = TRUE) ac_emg_bb_m[,11:13] <- apply(ac_emg_bb_m[,11:13], 2, function(y) na.approx(y, x=ac_emg_bb_m$time_s, na.rm = FALSE)) ac_emg_bb_m <- ac_emg_bb_m[!is.na(ac_emg_bb_m$env), ] #now write the files away to a processed folder write.csv(ac_emg_bb_m, paste0(procd, 'pp_', pp, '_trial_', triali, '_heartrate', '_aligned.csv')) #added heartrate to the name, so it doesn't create problems with the other files } } } ``` ### Detrending and normalization Note that there is a general decline in the amplitude of the vocalization during a trial (see Fig. \@ref(fig:combinedtimeseries), top panel). This is to be expected, as the subglottal pressure falls when the lungs deflate. To quantify deviations from stable vocalizations, we therefore detrended the amplitude envelope time series, so as to assess positive or negative peaks relative to this trend line. Moreover, we normalized the amplitude and the two sEMG signals using the mean and standard deviation from the middle section, i.e. 1 to 6 s, which we also used in most of the analyses here. This provides a better scaling, as the times outside of that range can have quite high/low values. ```{r normalization_EMG, cache = FALSE, ECHO = TRUE, code_folding = "Show code scaling data within participant"} #We have to do some within participant scaling, such that #all EMG's are rescaled within trials fs <- list.files(procd) fs <- fs[!fs%in%list.files(procd, pattern = 'zscal_*')] fs <- fs[fs%in%list.files(procd, pattern = "heartrate")] #set to true if you want to overwrite files (to check [modified] code) overwrite = FALSE if((length(list.files(procd, pattern = 'zscal_*')) == 0) | (overwrite==TRUE)) { mr <- data.frame() for(f in fs) { temp <- read.csv(paste0(procd, f)) temp$pp <- parse_number(f) temp$tr <- f mr <- rbind.data.frame(mr, temp) } #set ppn to 4 temp$pp[temp$pp==41 | temp$pp==42] <- 4 # #center the muscle measurements for each trial (due to drift) # mr$infraspinatus <- ave(mr$infraspinatus, mr$tr, FUN = function(x){x<-x-mean(x, na.rm=TRUE)}) # mr$rectus_abdominis <- ave(mr$rectus_abdominis, mr$tr, FUN = function(x){x<-x-mean(x, na.rm=TRUE)}) # mr$pectoralis_major <- ave(mr$pectoralis_major, mr$tr, FUN = function(x){x<-x-mean(x, na.rm=TRUE)}) # mr$erector_spinae <- ave(mr$erector_spinae, mr$tr, FUN = function(x){x<-x-mean(x, na.rm=TRUE)}) #we normalize signals by trial and detrend the 2 EMG signals; we will normalize them by the part from 1 to 6 s, for which we first need the time #save the scaled variables in new objects for(f in unique(mr$tr)) { sb <- mr[mr$tr==f, ] sb$time_s <- sb$time_s #this is the time sb$time_s_c <- sb$time_s-min(sb$time_s)# accumulating at trial start (resyncing) resynced with the psychopy software #detrend sb$rectus_abdominis <- ave(sb$rectus_abdominis, sb$tr, FUN = function(x){pracma::detrend(x, tt = 'linear')}) sb$pectoralis_major <- ave(sb$pectoralis_major, sb$tr, FUN = function(x){pracma::detrend(x, tt = 'linear')}) #use mean and sd from 1 to 6 s for scaling sbscale <- sb %>% dplyr::filter(time_s_c > 1 & time_s_c < 6) rectus_mean <- mean(sbscale$rectus_abdominis) rectus_sd <- sd(sbscale$rectus_abdominis) pectoralis_mean <- mean(sbscale$pectoralis_major) pectoralis_sd <- sd(sbscale$pectoralis_major) #now scale & center the 2 EMG signals by using these values sb$rectus_abdominis <- ave(sb$rectus_abdominis, sb$tr, FUN = function(x){x <- (x - rectus_mean) / rectus_sd}) sb$pectoralis_major <- ave(sb$pectoralis_major, sb$tr, FUN = function(x){x <- (x - pectoralis_mean) / pectoralis_sd}) # scale env sb$env_z <- ave(sb$env, sb$tr, FUN = function(x)scale(x, center = T)) # write away write.csv(sb, paste0(procd, 'zscal_', f)) } } ``` Fig.\@ref(fig:combinedtimeseriesnomov) shows the vocal amplitude and two EMG signals (pectoralis major, rectus abdominis) for participant 8 in the no movement condition. ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code producing the plot", message = FALSE} #ptest=8 ex3 <- triallist %>% dplyr::filter(vocal_condition == "expire") %>% dplyr::filter(movement_condition == "no_movement") %>% dplyr::filter(ppn == 8) ex3 <- ex3[2, ] if (file.exists(paste0(procd, 'zscal_pp_', ex3$ppn, '_trial_', ex3$trialindex, '_heartrate_aligned.csv'))) { exts3 <- read.csv(paste0(procd, 'zscal_pp_', ex3$ppn, '_trial_', ex3$trialindex, '_heartrate_aligned.csv')) exts3 <- subset(exts3, time_s_c > 1 & time_s_c < 6) exts3 <- exts3[seq(1, nrow(exts3), by = 5), ] exts3$time_ms <- round(exts3$time_s_c*1000) # Compute detrended and scaled envelope env_detrended <- pracma::detrend(exts3$env_z, tt = 'linear') exts3$env_z_detrend_scaled <- scale(env_detrended) # PLOT 1: Time series - NON-DETRENDED examplenomov <- ggplot(exts3, aes(x=time_ms)) + geom_path(aes(y=scale(pectoralis_major), color = 'pectoralis major')) + geom_path(aes(y=scale(env_z)), color="black") + geom_smooth(aes(y=scale(env_z)), method='lm', linetype = 'dashed',color = 'black') + scale_color_manual(values = colors_mus) + scale_y_continuous( name = "EMG", sec.axis = sec_axis(~., name="Vocal amplitude") ) + theme_cowplot(12) + theme(legend.position = "none") + geom_hline(yintercept= 0) + xlab('Time (ms)') + ggtitle('Non-detrended') # PLOT 2: Time series - DETRENDED AND Z-SCALED examplenomov_detrend <- ggplot(exts3, aes(x=time_ms)) + geom_path(aes(y=scale(pectoralis_major), color = 'pectoralis major')) + geom_path(aes(y=env_z_detrend_scaled), color="black") + geom_smooth(aes(y=env_z_detrend_scaled), method='lm', linetype = 'dashed',color = 'black') + scale_color_manual(values = colors_mus) + scale_y_continuous( name = "EMG", sec.axis = sec_axis(~., name="Vocal amplitude (detrended)") ) + theme_cowplot(12) + theme(legend.position = "none") + geom_hline(yintercept= 0) + xlab('Time (ms)') + ggtitle('Detrended and z-scaled') # Combine and print combined_plot <- plot_grid(examplenomov, examplenomov_detrend, ncol = 1, align = "v") } ``` ```{r combinedtimeseriesnomov, echo=FALSE, message = FALSE, fig.cap = "Example trial showing no movement and the EMG signals for pectoralis major and rectus abdominis.", fig.height = 4} combined_plot ``` ```{r, cache = FALSE, warning = FALSE, message = FALSE, code_folding = "Show code setting up the data frame"} #just inserted the cache.lazy, because I could not knit (long vectors not supported yet) overwrite = FALSE if(overwrite==TRUE) { #filter out all trials related to movement, expiration, or practice triallist_nomov <- triallist %>% dplyr::filter(movement_condition == "no_movement") %>% dplyr::filter(vocal_condition == "expire") %>% dplyr::filter(trial_type == "main") tr_wd_nomov <- triallist_nomov tr_wd_nomov$highest_veloc_peak_time <- NA #lets loop through the triallist and extract the files tr_wd_nomov$uniquetrial <- paste0(tr_wd_nomov$trialindex, '_', triallist_nomov$ppn) #remove duplicates so that we ignore repeated trials #NOTE in total we registered 25 repeats howmany_repeated <- sum(duplicated(tr_wd_nomov$uniquetrial)) tr_wd_nomov <- tr_wd_nomov[!duplicated(tr_wd_nomov$uniquetrial),] #make one large dataset tsl <- data.frame() tsl_fulltime <- data.frame() #this one exists so we have EMG signals without the time constraints (1-6s) we need for the detrending in the other one for(ID in tr_wd_nomov$uniquetrial) { #ID <- tr_wd$uniquetrial[27] tr_wd_s <- tr_wd_nomov[tr_wd_nomov$uniquetrial==ID,] ##load in row tr_wd pp <- tr_wd_s$ppn gender <- mtlist$sex[mtlist$ppn==pp] hand <- mtlist$handedness[mtlist$ppn==pp] triali <- tr_wd_s$trialindex if(file.exists(paste0(procd, 'zscal_pp_', pp, '_trial_', triali, '_heartrate_aligned.csv'))) { ts <- read.csv(paste0(procd, 'zscal_pp_', pp, '_trial_', triali, '_heartrate_aligned.csv')) ts$time_ms <- round(ts$time_s*1000) ts$time_ms <- ts$time_ms-min(ts$time_ms) ts$uniquetrial <- paste0(triali, "_", pp) ### before detrending, we want to find the onset of vocalization, for which we use the peak velocity of the envelope #get velocity first ts$env_z_veloc <- c(0, diff(ts$env_z)) #then get the peaks velocitypeaks <- pracma::findpeaks(ts$env_z_veloc) highest_veloc_peak <- velocitypeaks[which.max(velocitypeaks[, 1])] #find highest peak in col 1 corresponding_time_index <- which(ts$env_z_veloc == highest_veloc_peak)[1] #find index of that highest peak in velocity data tr_wd_nomov$highest_veloc_peak_time[tr_wd_nomov$uniquetrial==ID] <- ts$time_ms[corresponding_time_index] #use that index to extract time value from dataframe #now find peaks in rectus & pectoralis EMG signal #start with rectus rectuspeaks <- pracma::findpeaks(ts$rectus_abdominis) #find peaks in rectus signal rectuspeak_times <- numeric(length(rectuspeaks[, 1])) #create a vector length of number of peaks for (i in seq_len(nrow(rectuspeaks))) { #find the according peak times peak_index <- rectuspeaks[i, 2] rectuspeak_times[i] <- ts$time_ms[peak_index] } #now do the same for pectoralis pectoralispeaks <- pracma::findpeaks(ts$pectoralis_major) #find peaks in pectoralis signal pectoralispeak_times <- numeric(length(pectoralispeaks[, 1])) #create a vector length of number of peaks for (i in seq_len(nrow(pectoralispeaks))) { #find the according peak times peak_index <- pectoralispeaks[i, 2] pectoralispeak_times[i] <- ts$time_ms[peak_index] } #drop columns not needed for the analysis done here (heart rate) ts <- ts %>% select(!c(X.1, X, f0, time_s, infraspinatus, erector_spinae, COPXc, COPYc, COPc, x_wrist, y_wrist, z_wrist)) subts <- ts subts$movement_condition <- tr_wd_s$movement_condition subts$vocal_condition <- tr_wd_s$vocal_condition subts$weight_condition <- tr_wd_s$weight_condition subts$trial_number <- tr_wd_s$trialindex #store this in tsl_fulltime, which we need for EMG calculations without time restrictions tsl_fulltime <- rbind(tsl_fulltime, subts) #now create tsl, where we shorten the time span, so we can detrend #take the first 1 to 6 seconds ts <- ts[(ts$time_ms>1000) & (ts$time_ms < 6000), ] ts$env_z_detrend <- pracma::detrend(ts$env_z, tt = 'linear') # detrend the envelope subts <- ts subts$movement_condition <- tr_wd_s$movement_condition subts$vocal_condition <- tr_wd_s$vocal_condition subts$weight_condition <- tr_wd_s$weight_condition subts$trial_number <- tr_wd_s$trialindex #bind into big dataset tsl <- rbind(tsl, subts) tsl <- tsl %>% dplyr::filter(movement_condition == "no_movement") #to make it faster, we here filter by movement condition == no movement, since we're only using that one here anyways } } #write to file if overwrite == T write.csv(tr_wd_nomov, paste0(procdtot, 'fulldata_heartrate.csv')) write.csv(tsl, paste0(procdtot, 'time_series_all_heartrate.csv')) write.csv(tsl_fulltime, paste0(procdtot, 'time_series_all_heartrate_fulltime.csv')) } #read this in if(overwrite==FALSE) { tr_wd_nomov <- read.csv(paste0(procdtot, 'fulldata_heartrate.csv')) tsl <- read.csv(paste0(procdtot, 'time_series_all_heartrate.csv')) tsl_fulltime <-read.csv(paste0(procdtot, 'time_series_all_heartrate_fulltime.csv')) } tsl_fulltime <- tsl_fulltime %>% dplyr::filter(movement_condition == "no_movement") tsl_fulltime$pectoralis_major[is.na(tsl_fulltime$pectoralis_major)] <- 0 #there are some trailing NA's which we fill with 0 tsl_fulltime$rectus_abdominis[is.na(tsl_fulltime$rectus_abdominis)] <- 0 tr_wd_nomov$ppn <- ifelse(tr_wd_nomov$ppn%in%c(41, 42), 4, tr_wd_nomov$ppn) ``` ```{r, cache = FALSE, echo = TRUE, warning = FALSE, message = FALSE, code_folding = "Show code"} nomovement <- tsl %>% dplyr::filter(vocal_condition == "expire") %>% dplyr::filter(movement_condition == "no_movement") nomovement <- nomovement %>% mutate(pptrial = stringr::str_replace(uniquetrial, "(\\d+)_+(\\d+)", "\\2_\\1")) #example trial filteredEMGnomovdetrended <- ggplot(nomovement[seq(1, nrow(nomovement),by=5),], aes(x=time_ms, group = tr)) + geom_path(aes(y=pectoralis_major, color = 'pectoralis major')) + geom_path(aes(y=rectus_abdominis, color = 'rectus abdominis')) + ggtitle('Filtered EMG, 0.5-5 Hz') + scale_color_manual(values = colors_mus) filteredEMGnomov <- filteredEMGnomov + labs(x = "time in seconds", y = "EMG rectified", color = "Legend") + xlab('time in seconds') + ylab('EMG rectified') + theme_cowplot(12) + theme(legend.position = "right") filteredEMGnomovpec <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) + geom_path(aes(y=pectoralis_major_sm_h, color = 'pectoralis major')) + ggtitle('pectoralis major') + scale_color_manual(values = colors_mus) + labs(x = "time in seconds", y = "EMG rectified", color = "Legend") + xlab('time in seconds') + ylab('EMG rectified') + ylim(0, 150) + theme_cowplot(12) + theme(legend.position = "none") filteredEMGnomovrectus <- ggplot(emgdnomov[seq(1, nrow(emgdnomov),by=5),], aes(x=time_s)) + geom_path(aes(y=rectus_abdominis_sm_h, color = 'rectus abdominis')) + ggtitle('rectus abdominis') + scale_color_manual(values = colors_mus) + labs(x = "time in seconds", y = "EMG rectified", color = "Legend") + xlab('time in seconds') + ylab('EMG rectified') + ylim(0, 150) + theme_cowplot(12) + theme(legend.position = "none") ``` As a next step, we plotted all detrended amplitude envelopes, as well as all sEMG signals of the pectoralis major and the rectus abdominis. ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code producing the plot", message = FALSE} nomovement$pp <- as.factor(nomovement$pp) allenvelopes <- ggplot(nomovement, aes(x=time_ms)) + geom_path(aes(y=env_z_detrend, color=pp)) + scale_y_continuous(name = "expiration noise amplitude (normalized)") + theme_cowplot(12) + theme(legend.position = c(0.8, 1)) + geom_hline(yintercept= 0) + xlim(1000, 6000) + xlab('time (ms)') + theme(legend.position = "none", axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) + facet_wrap(~pptrial) + scale_colour_viridis_d(option = "plasma") ``` ```{r allenvelopes, echo=FALSE, message = FALSE, fig.cap = "All envelopes by all participants shown in one plot. Color shows different trials.", fig.height = 20, fig.width = 10} plot_grid(allenvelopes) ``` ```{r, cache = FALSE, warning = FALSE, echo = TRUE, code_folding = "Show code producing the plot", message = FALSE} allpectoralis <- ggplot(nomovement, aes(x=time_ms)) + geom_path(aes(y=pectoralis_major, color='pectoralis major')) + scale_color_manual(values = colors_mus) + scale_y_continuous(name = "Pectoralis major") + #labs(y="sEMG") + theme_cowplot(12) + theme(legend.position = c(0.8, 1)) + geom_hline(yintercept= 0) + xlim(1000, 6000) + xlab('time (ms)') + theme(legend.position = "none", axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) + facet_wrap(~pptrial) ``` ```{r allpectoralis, cache =FALSE, echo = FALSE, message = FALSE, fig.cap = "All pectoralis major EMG signals by all participants shown in one plot. Color shows different trials.", fig.height = 20, fig.width = 10} plot_grid(allpectoralis) ``` ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code producing the plot", message = FALSE} allrectus <- ggplot(nomovement, aes(x=time_ms)) + geom_path(aes(y=rectus_abdominis, color="rectus abdominis")) + #scale_color_manual(values = colors_mus) + scale_y_continuous(name = "Rectus abdominis") + #labs(y="sEMG") + theme_cowplot(12) + theme(legend.position = c(0.8, 1)) + geom_hline(yintercept= 0) + xlim(1000, 6000) + xlab('time (ms)') + theme(legend.position = "none", axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) + facet_wrap(~pptrial) ``` ```{r allrectus, cache = FALSE, echo=FALSE, message = FALSE, fig.cap = "All rectus abdominis EMG signals by all participants shown in one plot. Color shows different trials.", fig.height = 20, fig.width=10} plot_grid(allrectus) ``` Subsequently, we ran FFTs on the two sEMG signals (rectus abdominis and pectoralis major). We use this to determine the frequency component with the highest magnitude, which constituted the participant's heart rate. Again, we plotted the power spectrums of all trials. ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code using FFTs to calculate heartrate on EMG signals", message = FALSE} df_fft <- data.frame() overwrite = FALSE #set to true if you want to run this chunk if(overwrite == TRUE) { for(ID in tr_wd_nomov$uniquetrial) { tr_wd_s <- tr_wd_nomov[tr_wd_nomov$uniquetrial==ID,] ##load in row tr_wd pp <- tr_wd_s$ppn gender <- mtlist$sex[mtlist$ppn==pp] hand <- mtlist$handedness[mtlist$ppn==pp] triali <- tr_wd_s$trialindex if(file.exists(paste0(procd, 'zscal_pp_', pp, '_trial_', triali, '_heartrate_aligned.csv'))) { tsEMG <- read.csv(paste0(procd, 'zscal_pp_', pp, '_trial_', triali, '_heartrate_aligned.csv')) tsEMG$time_ms <- round(tsEMG$time_s*1000) tsEMG$time_ms <- tsEMG$time_ms-min(tsEMG$time_ms) tsEMG$uniquetrial <- paste0(triali, "_", pp) #before scaling/detrending, cut the signal -> 1 to 6 s (same for rectus) tsEMG <- tsEMG[(tsEMG$time_ms>1000) & (tsEMG$time_ms < 6000), ] ### start the FFT #rectus first #remove NAs tsEMG <- tsEMG %>% tidyr::drop_na(rectus_abdominis) NEMG = length(tsEMG$rectus_abdominis) #normalize and center again before the EMG is done #normalize signals by trial #also detrend tsEMG$rectus_abdominis[is.na(tsEMG$rectus_abdominis)] <- 0 #if there's trailing NAs, remove them tsEMG$rectus_abdominis <- ave(tsEMG$rectus_abdominis, tsEMG$uniquetrial, FUN = function(x){pracma::detrend( tsEMG$rectus_abdominis, tt = 'linear')}) tsEMG$rectus_abdominis <- ave(tsEMG$rectus_abdominis, tsEMG$uniquetrial, FUN = function(x){scale(x, center = T, scale = T)}) fftrectus <- abs(fft(tsEMG$rectus_abdominis)) dffftrectus <- data.frame(Values = fftrectus) index <- 0:(length(fftrectus) -1) #start with 0, so the first bin is for 0 Hz dffftrectus$index <- index dffftrectus$frequency <- dffftrectus$index * samplingrate / NEMG #now cut it in half half_rows_rectus <- nrow(dffftrectus) %/% 2 #subset the dataframe to keep only the first half of the rows dffftrectus <- dffftrectus[1:half_rows_rectus, ] maxfreqrectus <- dffftrectus$frequency[which.max(dffftrectus$Values)] tr_wd_nomov$heartrate_rectusfft_bpm[tr_wd_nomov$uniquetrial==ID] <- maxfreqrectus * 60 tr_wd_nomov$heartrate_rectusfft_hz[tr_wd_nomov$uniquetrial==ID] <- maxfreqrectus #run the same for pectoralis #remove NAs tsEMG <- tsEMG %>% tidyr::drop_na(pectoralis_major) NEMG = length(tsEMG$pectoralis_major) #normalize and center again before the EMG is done #normalize signals by trial #also detrend tsEMG$pectoralis_major[is.na(tsEMG$pectoralis_major)] <- 0 tsEMG$pectoralis_major <- ave(tsEMG$pectoralis_major, tsEMG$uniquetrial, FUN = function(x){pracma::detrend(tsEMG$pectoralis_major, tt = 'linear')}) tsEMG$pectoralis_major <- ave(tsEMG$pectoralis_major, tsEMG$uniquetrial, FUN = function(x){scale(x, center = T, scale = T)}) fftpectoralis <- abs(fft(tsEMG$pectoralis_major)) dffftpectoralis <- data.frame(Values = fftpectoralis) index <- 0:(length(fftpectoralis) -1) #start with 0, so the first bin is for 0 Hz dffftpectoralis$index <- index dffftpectoralis$frequency <- dffftpectoralis$index * samplingrate / NEMG #now cut it in half half_rows_pectoralis <- nrow(dffftpectoralis) %/% 2 #subset the dataframe to keep only the first half of the rows dffftpectoralis <- dffftpectoralis[1:half_rows_pectoralis, ] maxfreqpectoralis <- dffftpectoralis$frequency[which.max(dffftpectoralis$Values)] tr_wd_nomov$heartrate_pectoralisfft_bpm[tr_wd_nomov$uniquetrial==ID] <- maxfreqpectoralis * 60 tr_wd_nomov$heartrate_pectoralisfft_hz[tr_wd_nomov$uniquetrial==ID] <- maxfreqpectoralis #store the values in df_fft dffftrectus <- dffftrectus %>% rename(rectus = Values) %>% select(index, frequency, everything()) dffftpectoralis <- dffftpectoralis %>% rename(pectoralis = Values) %>% select(index, frequency, everything()) df_fft_temp <- left_join(dffftrectus, dffftpectoralis, by = c("index", "frequency")) df_fft_temp$uniquetrial <- paste0(triali, "_", pp) df_fft_temp <-df_fft_temp %>% mutate(pptrial = stringr::str_replace(uniquetrial, "(\\d+)_+(\\d+)", "\\2_\\1")) df_fft_temp <- df_fft_temp %>% dplyr::filter(frequency <= 3.0) df_fft <- rbind(df_fft, df_fft_temp) } write.csv(tr_wd_nomov, paste0(procdtot, 'fulldata_heartrate.csv')) write.csv(df_fft, paste0(procdtot, 'fulldata_heartrate_fft.csv')) } } if(!overwrite) { tr_wd_nomov <- read.csv(paste0(procdtot, 'fulldata_heartrate.csv')) df_fft <- read.csv(paste0(procdtot, 'fulldata_heartrate_fft.csv')) } #get heartrate from pectoralis FFTs, unless participant is 9, then use rectus tr_wd_nomov <- tr_wd_nomov %>% mutate(heartrate_EMG_hz = ifelse(ppn == 9, heartrate_rectusfft_hz, heartrate_pectoralisfft_hz)) tr_wd_nomov <- tr_wd_nomov %>% mutate(heartrate_EMG_bpm = if_else(ppn == 9, heartrate_rectusfft_bpm, heartrate_pectoralisfft_bpm)) ``` We can now visualize all the FFTs by participant. The frequency with the highest magnitude is what we use as the heartrate, after multiplying it by 60 to convert it to beats per minute (bpm). ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code creating the plot", message = FALSE} fftplot_rectus <- ggplot(df_fft, aes(x=frequency))+ geom_col(aes(y=rectus, color = 'rectus abdominis')) + scale_y_continuous(name = "Rectus abdominis") + scale_color_manual(values = colors_mus) + #labs(y="sEMG") + #theme_cowplot(12) + xlab('Frequency (Hz)') + theme(legend.position = "none") + facet_wrap(~pptrial) fftplot_pectoralis <- ggplot(df_fft, aes(x=frequency))+ geom_col(aes(y=pectoralis, color = 'pectoralis major')) + scale_y_continuous(name = "Pectoralis major") + scale_color_manual(values = colors_mus) + #labs(y="sEMG") + #theme_cowplot(12) + xlab('Frequency (Hz)') + theme(legend.position = "none") + facet_wrap(~pptrial) ``` ```{r fftplotpectoralis, echo=FALSE, message = FALSE, fig.cap = "All spectra for the pectoralis major EMG signals (via FFT) by all participants shown in one plot..", fig.height = 20, fig.width=10} plot_grid(fftplot_pectoralis) ``` In our analyses, we used the pectoralis major data, as they were closest to the heart. Since for participant 9 (i.e. trials 9_13 to 9_84) the EMG signal (and hence the resulting FFTs) for the pectoralis major were quite messy but the rectus abdominis looked fine, we chose to use the rectus abdominis signal for this participant. ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code creating the plot", message = FALSE} #first filter out the expire cases (they should be gone anyways) tr_wd_nomov <- tr_wd_nomov %>% dplyr::filter(vocal_condition == 'expire') #create new dataset for plotting heartrate <- tr_wd_nomov %>% dplyr::select(c(heartrate_pectoralisfft_hz, heartrate_rectusfft_hz)) %>% tidyr::gather(key = source, value = heartrate_hz, heartrate_pectoralisfft_hz, heartrate_rectusfft_hz) %>% mutate(source = gsub("heartrate_|_hz", "", source)) heartrate <- heartrate %>% mutate(heartrate_bpm = heartrate_hz * 60) heartrateplot <- heartrate %>% ggplot(aes(x=heartrate_bpm, fill = source, color = source)) + geom_histogram(position="dodge", binwidth = 12)+ # scale_fill_manual(values = c('#e7298a', '#d95f02')) + # scale_color_manual(values = c('#e7298a', '#d95f02')) + theme(legend.position="top") + theme_cowplot(12) #also create the new EMG column in nomovement, so that rectus is taken from participant 9, otherwise all are pectoralis nomovement <- nomovement %>% mutate(EMG = ifelse(pp == 9, rectus_abdominis, pectoralis_major)) ``` ```{r heartrateplot, echo=FALSE, message = FALSE, fig.cap = "Plot showing the heartrates (in bpm) for EMG measures at pectoralis major and rectus abdominis. Count refers to number of trials in a certain bin. ", fig.height = 5} plot_grid(heartrateplot) ``` As a last step, to visualize the relationship between the sEMG/ECG and the vocal amplitude for one examplary participant (participant 8), we plotted the normalized timeseries, Lissajous graphs and power spectrums (Fourier transform, fft) in one graph. ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code producing the plot",results="hide", fig.show="hide", message = FALSE, warning=FALSE} library(gridExtra) # Select example trials ex5 <- subset(nomovement, nomovement$tr %in% unique(nomovement$tr[nomovement$pp==8])[1:5]) ex5$EMG <- scale(ex5$pectoralis_major) # Normalize ex5$time_ms <- round(ex5$time_s_c*1000) # Function to create time series plot for one trial create_timeseries <- function(data, trial_id) { trial_data <- data[data$pptrial == trial_id, ] ggplot(trial_data, aes(x=time_ms)) + geom_path(aes(y=scale(EMG), color = 'pectoralis major'), size = 0.5) + geom_path(aes(y=scale(env_z_detrend)), color="black", size = 0.5) + scale_color_manual(values = colors_mus) + scale_y_continuous( name = "EMG/ECG", sec.axis = sec_axis(~., name="Expiration noise amplitude"), limits = c(-2, 2.5) ) + theme_cowplot(12) + theme(legend.position = "none") + geom_hline(yintercept= 0, linetype = 2, size = 0.3) + scale_x_continuous(limits = c(1000, 6000), breaks = seq(1000, 6000, 1000)) + xlab('Time (ms)') + ggtitle(trial_id) } # Function to create Lissajous plot for one trial (square) create_lissajous <- function(data, trial_id) { trial_data <- data[data$pptrial == trial_id, ] ggplot(trial_data, aes(x = scale(EMG), y = scale(env_z_detrend))) + geom_path(alpha = 0.6, size = 0.5) + geom_point(alpha = 0.1, size = 0.3) + labs(x = "EMG", y = "Expiration noise amplitude") + theme_cowplot(12) + coord_fixed(ratio = 1) + theme(aspect.ratio = 1) } # Function to create FFT overlay plot create_fft_plot <- function(data, trial_id) { trial_data <- data[data$pptrial == trial_id, ] # Remove NAs trial_data <- trial_data[!is.na(trial_data$EMG) & !is.na(trial_data$env_z_detrend), ] # Compute FFT for EMG N_emg <- length(trial_data$EMG) fft_emg <- abs(fft(scale(trial_data$EMG))) half_N_emg <- floor(N_emg/2) freq_emg <- seq(0, length.out = half_N_emg) * 2500 / N_emg fft_emg_half <- fft_emg[1:half_N_emg] fft_emg_norm <- fft_emg_half / max(fft_emg_half) # Compute FFT for envelope N_env <- length(trial_data$env_z_detrend) fft_env <- abs(fft(scale(trial_data$env_z_detrend))) half_N_env <- floor(N_env/2) freq_env <- seq(0, length.out = half_N_env) * 2500 / N_env fft_env_half <- fft_env[1:half_N_env] fft_env_norm <- fft_env_half / max(fft_env_half) # Create dataframes df_emg <- data.frame(frequency = freq_emg, power = fft_emg_norm, signal = "EMG") df_env <- data.frame(frequency = freq_env, power = fft_env_norm, signal = "Envelope") df_fft <- rbind(df_emg, df_env) # Filter to 0.5-3 Hz df_fft <- df_fft[df_fft$frequency >= 0.5 & df_fft$frequency <= 3, ] # Get heart rate for vertical line hr_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial == trial_id] ggplot(df_fft, aes(x = frequency, y = power, color = signal, fill = signal)) + geom_area(alpha = 0.5, position = "identity") + geom_line(alpha = 0.8, size = 0.8) + scale_color_manual(values = c("EMG" = col_pectoralis, "Envelope" = "black")) + scale_fill_manual(values = c("EMG" = col_pectoralis, "Envelope" = "black")) + geom_vline(xintercept = hr_hz, linetype = 2, color = "gray20", size = 0.5) + labs(x = "Frequency (Hz)", y = "Normalized power") + scale_x_continuous(limits = c(0.5, 3), breaks = seq(0.5, 3, 0.5)) + scale_y_continuous(limits = c(0, 1), breaks = seq(0, 1, 0.25)) + theme_cowplot(12) + theme(legend.position = c(0.85, 0.85), legend.title = element_blank(), legend.background = element_rect(fill = "white", color = NA)) } # Create combined plots for each trial trial_ids <- unique(ex5$pptrial) all_plots <- list() for(i in seq_along(trial_ids)) { ts_plot <- create_timeseries(ex5, trial_ids[i]) lj_plot <- create_lissajous(ex5, trial_ids[i]) fft_plot <- create_fft_plot(ex5, trial_ids[i]) all_plots[[i]] <- grid.arrange(ts_plot, lj_plot, fft_plot, ncol = 3, widths = c(1.2, 1, 1.2)) } ``` Fig.\@ref(fig:detrendedexample) uses the same data as the example trial from above (participant 8) (Fig.\@ref(fig:combinedtimeseriesnomov2)), but the expration noise amplitude has been detrended. ```{r detrendedexample, echo=FALSE, message = FALSE, fig.cap = "Example of 5 trials of a representative participant (participant 8). Left: the normalized and detrended amplitude envelopes in black and the normalized EMG/ECG signals from the pectoralis major in pink. Middle: Lissajous coupling motifs (x = amplitude envelope, y = EMG/ECG). Right: the normalized power spectra (fft) of the amplitude envelope in black and the EMG/ECG signal in pink.", fig.height = 10} # Stack all trials vertically do.call(grid.arrange, c(all_plots, ncol = 1)) ``` # Hypothesis testing In this section, tested two hypotheses related to heart-expiration noise coupling. ## Hypothesis 1: The amplitude of the noise of a sustained expiration is coherent with the cardiac activity To test this hypothesis, we computed the squared magnitude coherence between the pectoralis major EMG signal and amplitude envelope time series. We did so for real pairs, i.e. both time series are from the same trial, and false pairs, i.e. the two signals are randomly combined across trials. The false pairs we created by using base R's sample(), which creates a shuffled, random vector of the trials. It was supported by a safety net function that makes sure that no trial in the original and the new vector are the same and that no false pair consists of trials from the same participant. Setting replace to FALSE ensures that no trial occurs twice in the shuffled version. Coherence was then computed for each trial between the detrended amplitude envelope and the pectoralis major EMG signal for real and false pairs via seewave::coh(). ```{r, warning = FALSE, echo = TRUE, cache=FALSE, code_folding = "Show code for coherence analysis", message = FALSE} ### create real and false pairs # real pairs: use trial pairings as recorded # false pairs: take tr_wd_nomov$uniquetrials and randomly combine them tr_wd_nomov <- tr_wd_nomov %>% mutate(pptrial = stringr::str_replace(uniquetrial, "(\\d+)_+(\\d+)", "\\2_\\1")) #real pairs df: realpairs <- nomovement %>% select(c(time_ms, env_z_detrend, rectus_abdominis, pectoralis_major, EMG, pptrial)) realpairs <- realpairs %>% group_by(pptrial) %>% slice_head(n=12496) %>% ungroup() #false pairs df: #create function to shuffle vector until no element matches its corresponding element in the original vector #the second part of the while loop also makes sure that no trials from the same participant are matched shuffle_until_no_matches <- function(original) { shuffled <- sample(original, replace = FALSE) while (any(shuffled == original) || any(sapply(strsplit(shuffled, "_"), `[`, 1) == sapply(strsplit(original, "_"), `[`, 1))) { shuffled <- sample(original, replace = FALSE) } return(shuffled) } #set seed for reproducibility; change this to re-shuffle set.seed(1234) tr_wd_nomov$pptrial_shuffled <- shuffle_until_no_matches(tr_wd_nomov$pptrial) #now make a dataset with false pairs falsepairs <- data.frame() for(ID in tr_wd_nomov$pptrial) { # check if ID in pptrial if(!ID %in% tr_wd_nomov$pptrial) { next # Skip to the next iteration if ID is not found } shuffleID <- tr_wd_nomov$pptrial_shuffled[tr_wd_nomov$pptrial==ID] #for all time series there are either 12,497 (n=73) or 12,498 (n=55) data points, so we'll shorten them all to 12,496 (so it is divisible by 2 for later analysis of first and second half) #pick time & and envelope from the ID part time_ms <- nomovement %>% dplyr::filter(pptrial == ID) %>% select(time_ms) %>% slice_head(n=12496) #pick the envelope from ID env_z_detrend <- nomovement %>% dplyr::filter(pptrial == ID) %>% select(env_z_detrend) %>% slice_head(n=12496) #pick the EMG signals from the randomly assigned shuffleID rectus_abdominis <- nomovement %>% dplyr::filter(pptrial == shuffleID) %>% select(rectus_abdominis) %>% slice_head(n=12496) pectoralis_major <- nomovement %>% dplyr::filter(pptrial == shuffleID) %>% select(pectoralis_major) %>% slice_head(n=12496) EMG <- nomovement %>% dplyr::filter(pptrial == shuffleID) %>% select(EMG) %>% slice_head(n=12496) # check if all data frames have the same number of rows if (nrow(time_ms) != nrow(env_z_detrend) || nrow(time_ms) != nrow(rectus_abdominis) || nrow(time_ms) != nrow(pectoralis_major) || nrow(time_ms) != nrow(EMG)) { next # Skip to the next iteration if row counts do not match } falsepairs_temp <- cbind.data.frame(time_ms, env_z_detrend, rectus_abdominis, pectoralis_major, EMG, ID, shuffleID) falsepairs <- rbind(falsepairs, falsepairs_temp) } #rename 2 columns in falsepairs for uniformity across datasets falsepairs <- falsepairs %>% dplyr::rename(pptrial = ID) falsepairs <- falsepairs %>% dplyr::rename(pptrial_shuffle = shuffleID) ``` We then used these two newly created data frames to compute coherence for false and real pairs. ```{r, warning = FALSE, echo = TRUE,cache = FALSE, code_folding = "Show code for coherence analysis", message = FALSE} ### compute coherence #start with realpairs coherence_realpairs <- realpairs %>% group_by(pptrial) %>% reframe(coh = coh(env_z_detrend, EMG, f = 2500, plot = F)) #convert from kHz to Hz coherence_realpairs$frequency <- coherence_realpairs$coh[,1] * 1000 coherence_realpairs$coherence <- coherence_realpairs$coh[,2] coherence_realpairs <- coherence_realpairs %>% select(!coh) #do the same for falsepairs coherence_falsepairs <- falsepairs %>% group_by(pptrial) %>% reframe(coh = coh(env_z_detrend, EMG, f = 2500, plot = F)) #convert from kHz to Hz coherence_falsepairs$frequency <- coherence_falsepairs$coh[,1] * 1000 coherence_falsepairs$coherence <- coherence_falsepairs$coh[,2] coherence_falsepairs <- coherence_falsepairs %>% select(!coh) ``` Next, we plot coherence for real and false pairs (see Fig. \@ref(fig:coherencepairsplot)). In the plots separated by trial, we inserted a vertical line that represents the heart rate that we extracted from the FFTs of the EMG signal. ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code for coherence analysis", message = FALSE} #now plot coherence for real & fake pairs for 0-3 Hz #create participant column from pptrial coherence_realpairs$participant <- sub("_(.*)", "", coherence_realpairs$pptrial) coherence_falsepairs$participant <- sub("_(.*)", "", coherence_falsepairs$pptrial) coherence_realpairs$pair <- "real_pair" coherence_falsepairs$pair <- "false_pair" coherence_pairs <- rbind(coherence_realpairs, coherence_falsepairs) coherence_pairs <- coherence_pairs %>% mutate(id_pair = paste0(pptrial, "_", pair)) heartrateline <- data.frame(pptrial = tr_wd_nomov$pptrial, heartrate = tr_wd_nomov$heartrate_EMG_hz) heartrateline$participant <- sub("_(.*)", "", heartrateline$pptrial) coherence_pairs_plot <- coherence_pairs %>% dplyr::filter(frequency <= 3) %>% ggplot(aes(x=frequency, group = id_pair, color = pair)) + geom_path(aes(y=coherence)) + theme_cowplot(12) + theme(legend.position = "none") + facet_wrap(~pptrial) + ylab("Coherence value") + xlab("Frequency (in Hz)") + ylim(0, 1) + geom_vline(data = heartrateline, aes(xintercept = heartrate), color = "black") + scale_colour_brewer(palette = "Set1") + theme(legend.position = "bottom", legend.box = "horizontal", legend.justification = "center", legend.title = element_blank()) ``` ```{r coherencepairsplot, echo=FALSE, message = FALSE, fig.cap = "Plot showing the coherence spectra for real (turquoise) and false pairs (red) between detrended amplitude envelope and EMG signal. The vertical line inserted expresses the heartrate extracted from the FFT of the EMG signal in that particular trial.", fig.height = 10} plot_grid(coherence_pairs_plot) ``` We extracted the coherence value at the point where the vertical lines were drawn in the plot for visualization (or rather at the closest frequency value in the coherence data, as the data is not continuous). That gave us the coherence value at the frequency of heart rate in a given trial. ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code for extracting coherence at frequency of heart rate", message = FALSE} #now extract the coherence values at the point of heartrate heartrate_coh <- data.frame() heartrate_coh_temp <- data.frame() #at frequency of heart rate, extract the coherence value #since there is no value at the exact frequency, we choose the closest one for(ID in tr_wd_nomov$pptrial) { heartrate_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial==ID] if (is.na(heartrate_hz)) { next # Skip to the next iteration if heartrate_hz is NA } coherence_realpairs_temp <- coherence_realpairs %>% dplyr::filter(pptrial == ID) closest_index <- which.min(abs(coherence_realpairs_temp$frequency - heartrate_hz)) closest_frequency <- coherence_realpairs_temp$frequency[closest_index] coherence <- coherence_realpairs_temp$coherence[closest_index] weight_condition <- tr_wd_nomov$weight_condition[tr_wd_nomov$pptrial==ID] heartrate_coh_temp <- cbind.data.frame(heartrate_hz, closest_index, closest_frequency, coherence, ID, weight_condition) heartrate_coh <- rbind(heartrate_coh, heartrate_coh_temp) } #do the same for false pairs heartrate_coh_false <- data.frame() heartrate_coh_temp_false <- data.frame() for(ID in tr_wd_nomov$pptrial) { heartrate_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial==ID] if (is.na(heartrate_hz)) { next # Skip to the next iteration if heartrate_hz is NA } coherence_falsepairs_temp <- coherence_falsepairs %>% dplyr::filter(pptrial == ID) closest_index <- which.min(abs(coherence_falsepairs_temp$frequency - heartrate_hz)) if (length(closest_index) == 0) { next # Skip to the next iteration if closest_index is empty } closest_frequency <- coherence_falsepairs_temp$frequency[closest_index] coherence <- coherence_falsepairs_temp$coherence[closest_index] weight_condition <- tr_wd_nomov$weight_condition[tr_wd_nomov$pptrial==ID] heartrate_coh_temp_false <- cbind.data.frame(heartrate_hz, closest_index, closest_frequency, coherence, ID, weight_condition) heartrate_coh_false <- rbind(heartrate_coh_false, heartrate_coh_temp_false) } # make singel dataframe heartrate_coherence_real <- heartrate_coh %>% dplyr::rename(coherence = coherence) %>% mutate(pair_type = 'real') heartrate_coherence_false <- heartrate_coh_false %>% dplyr::rename(coherence = coherence) %>% mutate(pair_type = 'false') heartrate_coherence <- rbind(heartrate_coherence_real, heartrate_coherence_false) heartrate_coherence$ppn <- sub("_(.*)", "", heartrate_coherence$ID) ``` Subsequently, we plotted the coherence values and tested if there was a difference in coherence values for real and false pairs. Fig. \@ref(fig:coherencerealfalsepairsplot) shows the difference in coherence values for false and right pairs. ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code modeling coherence in real and false pairs", message = FALSE} #reorder the coherence pair type levels, so that false becomes the intercept heartrate_coherence$pair_type <- factor(heartrate_coherence$pair_type, levels=c('false', 'real')) #model the data, compare to null model model_realfalse_coherence_null <- lmer(coherence ~ 1 + (1 |ppn/ID), data = heartrate_coherence) model_realfalse_coherence <- lmer(coherence ~ pair_type + 1 + (1|ppn/ID), data = heartrate_coherence) comparison_realfalse_coherence <- anova(model_realfalse_coherence_null, model_realfalse_coherence) #also save the model output in a data frame modelsummary_realfalse_coherence <- summary(model_realfalse_coherence)$coefficients colnames(modelsummary_realfalse_coherence) <- c('Estimate', 'SE', 'df', 't-value', 'p-value') rownames(modelsummary_realfalse_coherence) <- c('Intercept (false pairs)', 'vs. real pairs') # Create ANOVA comparison table comparison_realfalse_table <- data.frame( Model = c("Null (Intercept only)", "Pair type (false vs. real)"), npar = comparison_realfalse_coherence$npar, AIC = round(comparison_realfalse_coherence$AIC, 2), BIC = round(comparison_realfalse_coherence$BIC, 2), logLik = round(comparison_realfalse_coherence$logLik, 2), deviance = round(comparison_realfalse_coherence$deviance, 2), Chisq = c(NA, round(comparison_realfalse_coherence$Chisq[2], 3)), Df = c(NA, comparison_realfalse_coherence$Df[2]), `Pr(>Chisq)` = c(NA, ifelse(comparison_realfalse_coherence$`Pr(>Chisq)`[2] < .001, "< .001", round(comparison_realfalse_coherence$`Pr(>Chisq)`[2], 3))) ) ``` ```{r descriptives} # Create descriptive statistics table with confidence intervals descriptives_realfalse <- heartrate_coherence %>% group_by(pair_type) %>% summarise( n = n(), Mean = mean(coherence, na.rm = TRUE), SD = sd(coherence, na.rm = TRUE), SE = SD / sqrt(n), CI_lower = Mean - qt(0.975, n-1) * SE, CI_upper = Mean + qt(0.975, n-1) * SE, .groups = 'drop' ) %>% mutate( `95% CI` = paste0("[", round(CI_lower, 3), ", ", round(CI_upper, 3), "]") ) %>% select(pair_type, n, Mean, SD, `95% CI`) %>% mutate( Mean = round(Mean, 3), SD = round(SD, 3) ) # Display descriptive statistics table knitr::kable(descriptives_realfalse, caption = "Descriptive statistics: Coherence values by pair type.", col.names = c("Pair Type", "N", "Mean", "SD", "95% CI")) %>% kable_paper("hover", full_width = TRUE) ``` With a mixed linear regression we modeled the variation in coherence (using R-package lme4), with trial as random intercept (for more complex random slope models did not converge). A model with pairing type (real vs false pairs) explained more variance than a base model predicting the overall mean, Change in Chi-Squared (`r printnum(round(comparison_realfalse_coherence[2,1]-comparison_realfalse_coherence[1,1]))`) = `r printnum(comparison_realfalse_coherence$Chisq[2])`, *p* `r printnum(ifelse(comparison_realfalse_coherence[2,8] > .001, paste('=', comparison_realfalse_coherence[2,8]), '< .001'))`. Model comparison and coefficients are shown in the tables below S\@ref(tab:modelcoherencerealvsfalse). We find that real pairs (as opposed to the false pairs, i.e. the intercept ) had higher coherence values for the heart rate frequency. ```{r modelcoherencerealvsfalse, echo=FALSE} # Display comparison table knitr::kable(comparison_realfalse_table, caption = "Model comparison: Effect of pair type on coherence values.") %>% kable_paper("hover", full_width = TRUE) knitr::kable(format(round(modelsummary_realfalse_coherence, digits = 3)), caption = "Effects of pairing type on coherence values.") %>% kable_paper("hover", full_width = T) ``` ### Excluding effects of weights ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code modeling coherence in real and false pairs", message = FALSE} #reorder the coherence pair type levels, so that false becomes the intercept heartrate_coherence_real <- heartrate_coherence %>% dplyr::filter(pair_type == 'real') #model the data, compare to null model model_real_coherence_null <- lmer(coherence ~ 1 + (1 |ppn/ID), data = heartrate_coherence) model_real_coherence_weights <- lmer(coherence ~ weight_condition + 1 + (1|ppn/ID), data = heartrate_coherence) comparison <- anova(model_real_coherence_null, model_real_coherence_weights) # Create ANOVA comparison table comparison_table <- data.frame( Model = c("Null (Intercept only)", "Weight condition"), npar = comparison$npar, AIC = round(comparison$AIC, 2), BIC = round(comparison$BIC, 2), logLik = round(comparison$logLik, 2), deviance = round(comparison$deviance, 2), Chisq = c(NA, round(comparison$Chisq[2], 3)), Df = c(NA, comparison$Df[2]), `Pr(>Chisq)` = c(NA, ifelse(comparison$`Pr(>Chisq)`[2] < .001, "< .001", round(comparison$`Pr(>Chisq)`[2], 3))) ) ``` While we did not expect the weight wrists, worn in some of the conditions, to have affected heart-voice coupling in no movement conditions, we checked this assumption here. Below in table S\@ref(tab:weight_comparison) we report the comparison between a model predicting the overall mean coherence, versus a model predicting coherence as predicted by wearing a 1kg weight or not. Since weight was not a reliable predictor, we intepreted this as proff that the weight wrists did not affect our results on hearth-voice coupling. ```{r weight_comparison, echo=FALSE} # Display table knitr::kable(comparison_table, caption = "Model comparison: Effect of weight condition on coherence values in real pairs.") %>% kable_paper("hover", full_width = TRUE) ``` ```{r} # per trial heartrate_coh_false <- mutate(heartrate_coh_false, pair_type = "false") heartrate_coh <- mutate(heartrate_coh, pair_type = "real") heartrate_coherence <- rbind(heartrate_coh, heartrate_coh_false) # Add participant column if not already present heartrate_coherence$participant <- sub("_(.*)", "", heartrate_coherence$ID) A <- ggplot(heartrate_coherence, aes(x = pair_type, y = coherence, color = pair_type)) + geom_boxplot(size = 1) + geom_quasirandom() + theme_bw() + ylab('Coherence value') + xlab('Pair type') + scale_colour_brewer(palette = "Set1") + theme_cowplot() + theme(legend.position = "none") # per participant, geom_jitter with connected lines # First calculate participant means heartrate_coherence_means <- heartrate_coherence %>% group_by(participant, pair_type) %>% summarise(coherence_mean = mean(coherence, na.rm = TRUE), .groups = 'drop') B <- ggplot(heartrate_coherence_means, aes(x = pair_type, y = coherence_mean, group = participant)) + geom_line(color = "gray60", alpha = 0.6) + geom_point(aes(color = pair_type), size = 3, alpha = 0.8) + theme_bw() + ylab('Mean coherence value') + xlab('Pair type') + scale_colour_brewer(palette = "Set1") + theme_cowplot() + theme(legend.position = "none") # cowplot A, B plot_grid(A, B, labels = c('A', 'B'), ncol = 2) ``` ## Hypothesis 2: The heart-voice coupling is more pronounced at the beginning of the expiration, when the lungs are full To test this hypothesis, we split the trials into first half and second half. The first half included data from 1001 to 3500 ms, the second half from 3500 to 5999 ms. Then we computed the coherence between the amplitude envelope and EMG signal (real pairs only here). Finally, we compared the coherence in the first half to that in the second half. For reference, we also included false and real pairs for the first and second half. As such, we had four data sets here (first vs second half, and real vs false pairs). ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code for coherence in split time series", message = FALSE} #we will here use realpairs and falsepairs from above, which are already shortened to 12,496 data points #first we separate into 1st and 2nd half; this creates 4 dataframes (2 pair types, 2 halves) firsthalf_real <- realpairs %>% group_by(pptrial) %>% slice_head(n = 12496 / 2) firsthalf_false <- falsepairs %>% group_by(pptrial) %>% slice_head(n = 12496 / 2) secondhalf_real <- realpairs %>% group_by(pptrial) %>% slice_tail(n = 12496 / 2) secondhalf_false <- falsepairs %>% group_by(pptrial) %>% slice_tail(n = 12496 / 2) coherence_firsthalf_real <- firsthalf_real %>% group_by(pptrial) %>% reframe(coh = coh(env_z_detrend, EMG, f = 2500, plot = F)) #convert from kHz to Hz coherence_firsthalf_real$frequency <- coherence_firsthalf_real$coh[,1] * 1000 coherence_firsthalf_real$coherence <- coherence_firsthalf_real$coh[,2] coherence_firsthalf_real <- coherence_firsthalf_real %>% select(!coh) coherence_firsthalf_real <- coherence_firsthalf_real %>% mutate(pair_type = "real") #add false pairs to it coherence_firsthalf_false <- firsthalf_false %>% group_by(pptrial) %>% reframe(coh = coh(env_z_detrend, EMG, f = 2500, plot = F)) coherence_firsthalf_false$frequency <- coherence_firsthalf_false$coh[,1] * 1000 coherence_firsthalf_false$coherence <- coherence_firsthalf_false$coh[,2] coherence_firsthalf_false <- coherence_firsthalf_false %>% select(!coh) coherence_firsthalf_false <- coherence_firsthalf_false %>% mutate(pair_type = "false") coherence_firsthalf <- rbind(coherence_firsthalf_real, coherence_firsthalf_false) ### same for second half coherence_secondhalf_real <- secondhalf_real %>% group_by(pptrial) %>% reframe(coh = coh(env_z_detrend, EMG, f = 2500, plot = F)) #convert from kHz to Hz coherence_secondhalf_real$frequency <- coherence_secondhalf_real$coh[,1] * 1000 coherence_secondhalf_real$coherence <- coherence_secondhalf_real$coh[,2] coherence_secondhalf_real <- coherence_secondhalf_real %>% select(!coh) coherence_secondhalf_real <- coherence_secondhalf_real %>% mutate(pair_type = "real") #add false pairs to it coherence_secondhalf_false <- secondhalf_false %>% group_by(pptrial) %>% reframe(coh = coh(env_z_detrend, EMG, f = 2500, plot = F)) #convert from kHz to Hz coherence_secondhalf_false$frequency <- coherence_secondhalf_false$coh[,1] * 1000 coherence_secondhalf_false$coherence <- coherence_secondhalf_false$coh[,2] coherence_secondhalf_false <- coherence_secondhalf_false %>% select(!coh) coherence_secondhalf_false <- coherence_secondhalf_false %>% mutate(pair_type = "false") coherence_secondhalf <- rbind(coherence_secondhalf_real, coherence_secondhalf_false) #put them into the same dataframe coherence_firsthalf <- mutate(coherence_firsthalf, half = "first") coherence_secondhalf <- mutate(coherence_secondhalf, half = "second") halves_coherence <- rbind(coherence_firsthalf, coherence_secondhalf) #create combination of pptrial and half for grouping in plot halves_coherence <- halves_coherence %>% mutate(pptrialhalftype = paste0(pptrial, "_", half, "_", pair_type)) halves_coherence <- halves_coherence %>% mutate(type = paste0(half, "_", pair_type)) #create plot #heartrateline <- data.frame(pptrial = tr_wd_nomov$pptrial, heartrate = tr_wd_nomov$heartrate_pectoralisfft_hz) coherence_halves_plot_real <- halves_coherence %>% dplyr::filter(frequency <= 3) %>% dplyr::filter(pair_type == "real") %>% ggplot(aes(x=frequency)) + geom_path(aes(y=coherence, group = pptrialhalftype, color = half)) + theme_cowplot(12) + theme(legend.position = "bottom") + facet_wrap(~pptrial) + ylim(0, 1) + geom_vline(data = heartrateline, aes(xintercept = heartrate)) + scale_colour_brewer(palette = "Set1") coherence_halves_plot_false <- halves_coherence %>% dplyr::filter(frequency <= 3) %>% dplyr::filter(pair_type == "false") %>% ggplot(aes(x=frequency)) + geom_path(aes(y=coherence, group = pptrialhalftype, color = half)) + theme_cowplot(12) + theme(legend.position = "bottom") + facet_wrap(~pptrial) + ylim(0, 1) + geom_vline(data = heartrateline, aes(xintercept = heartrate)) + scale_colour_brewer(palette = "Set1") ``` ```{r coherencehalvesplotreal, echo=FALSE, message = FALSE, fig.cap = "Coherence spectra for first (red) and second (blue) half of the time in real pairs.", fig.height = 10} plot_grid(coherence_halves_plot_real) ``` ```{r coherencehalvesplotfalse, echo=FALSE, message = FALSE, fig.cap = "Coherence spectra for first (red) and second (blue) half of the time in false pairs", fig.height = 10} plot_grid(coherence_halves_plot_false) ``` ```{r coherencerealfalsepairsplot, warning = FALSE, echo = TRUE, code_folding = "Show code creating the plot", message = FALSE} # Original spectral plots coherence_halves_plot_real <- halves_coherence %>% dplyr::filter(frequency <= 3) %>% dplyr::filter(pair_type == "real") %>% ggplot(aes(x=frequency)) + geom_path(aes(y=coherence, group = pptrialhalftype, color = half)) + theme_cowplot(12) + theme(legend.position = "bottom") + facet_wrap(~pptrial) + ylim(0, 1) + geom_vline(data = heartrateline, aes(xintercept = heartrate)) + scale_colour_brewer(palette = "Set1") coherence_halves_plot_false <- halves_coherence %>% dplyr::filter(frequency <= 3) %>% dplyr::filter(pair_type == "false") %>% ggplot(aes(x=frequency)) + geom_path(aes(y=coherence, group = pptrialhalftype, color = half)) + theme_cowplot(12) + theme(legend.position = "bottom") + facet_wrap(~pptrial) + ylim(0, 1) + geom_vline(data = heartrateline, aes(xintercept = heartrate)) + scale_colour_brewer(palette = "Set1") firstsecondhalf_coherence <- rbind(coherence_firsthalf, coherence_secondhalf) # Add participant column to firstsecondhalf_coherence if not present firstsecondhalf_coherence$ID <- firstsecondhalf_coherence$pptrial firstsecondhalf_coherence$participant <- sub("_(.*)", "", firstsecondhalf_coherence$ID) # Per trial boxplot (original) A_halves <- ggplot(firstsecondhalf_coherence, aes(x = half, y = coherence, color = half)) + geom_boxplot(size = 1) + geom_quasirandom() + ylab('Coherence value') + xlab('Half') + scale_colour_brewer(palette = "Set1") + theme_cowplot() + facet_wrap(~pair_type) + theme(legend.position = "none") # Per participant means with connected lines firstsecondhalf_coherence_means <- firstsecondhalf_coherence %>% group_by(participant, half, pair_type) %>% summarise(coherence_mean = mean(coherence, na.rm = TRUE), .groups = 'drop') B_halves <- ggplot(firstsecondhalf_coherence_means, aes(x = half, y = coherence_mean, group = participant)) + geom_line(color = "gray60", alpha = 0.6) + geom_point(aes(color = half), size = 3, alpha = 0.8) + ylab('Mean coherence value') + xlab('Half') + scale_colour_brewer(palette = "Set1") + theme_cowplot() + facet_wrap(~pair_type) + theme(legend.position = "none") ``` ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code comparing coherence between the two halves", message = FALSE} #compare coherence between the 2 halves; and for real vs false pairs #get coherence value at frequency of heart rate #start with first half firsthalf_real_coh_temp <- data.frame() firsthalf_real_coh <- data.frame() #at frequency of heart rate, extract the coherence value #since there is no value at the exact frequency, we choose the closest one for(ID in tr_wd_nomov$pptrial) { heartrate_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial==ID] # check if present if (is.na(heartrate_hz)) { next # Skip to the next iteration if heartrate_hz is NA } coherence_firsthalf_real_temp <- coherence_firsthalf_real %>% dplyr::filter(pptrial == ID) closest_index <- which.min(abs(coherence_firsthalf_real_temp$frequency - heartrate_hz)) closest_frequency <- coherence_firsthalf_real_temp$frequency[closest_index] coherence <- coherence_firsthalf_real_temp$coherence[closest_index] firsthalf_real_coh_temp <- cbind.data.frame(heartrate_hz, closest_index, closest_frequency, coherence, ID) firsthalf_real_coh <- rbind(firsthalf_real_coh, firsthalf_real_coh_temp) } #now for false pairs in firsthalf firsthalf_false_coh_temp <- data.frame() firsthalf_false_coh <- data.frame() for(ID in tr_wd_nomov$pptrial) { heartrate_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial==ID] if (is.na(heartrate_hz)) { next # Skip to the next iteration if heartrate_hz is NA } coherence_firsthalf_false_temp <- coherence_firsthalf_false %>% dplyr::filter(pptrial == ID) closest_index <- which.min(abs(coherence_firsthalf_false_temp$frequency - heartrate_hz)) if (length(closest_index) == 0) { next # Skip to the next iteration if closest_index is empty } closest_frequency <- coherence_firsthalf_false_temp$frequency[closest_index] coherence <- coherence_firsthalf_false_temp$coherence[closest_index] firsthalf_false_coh_temp <- cbind.data.frame(heartrate_hz, closest_index, closest_frequency, coherence, ID) firsthalf_false_coh <- rbind(firsthalf_false_coh, firsthalf_false_coh_temp) } ### then same for second half secondhalf_real_coh_temp <- data.frame() secondhalf_real_coh <- data.frame() #at frequency of heartrate, extract the coherence value #since there is no value at the exact frequency, we choose the closest one for(ID in tr_wd_nomov$pptrial) { heartrate_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial==ID] if (is.na(heartrate_hz)) { next # Skip to the next iteration if heartrate_hz is NA } coherence_secondhalf_real_temp <- coherence_secondhalf_real %>% dplyr::filter(pptrial == ID) closest_index <- which.min(abs(coherence_secondhalf_real_temp$frequency - heartrate_hz)) if (length(closest_index) == 0) { next # Skip to the next iteration if closest_index is empty } closest_frequency <- coherence_secondhalf_real_temp$frequency[closest_index] coherence <- coherence_secondhalf_real_temp$coherence[closest_index] secondhalf_real_coh_temp <- cbind.data.frame(heartrate_hz, closest_index, closest_frequency, coherence, ID) secondhalf_real_coh <- rbind(secondhalf_real_coh, secondhalf_real_coh_temp) } #now for false pairs in secondhalf secondhalf_false_coh_temp <- data.frame() secondhalf_false_coh <- data.frame() for(ID in tr_wd_nomov$pptrial) { heartrate_hz <- tr_wd_nomov$heartrate_EMG_hz[tr_wd_nomov$pptrial==ID] if (is.na(heartrate_hz)) { next # Skip to the next iteration if heartrate_hz is NA } coherence_secondhalf_false_temp <- coherence_secondhalf_false %>% dplyr::filter(pptrial == ID) closest_index <- which.min(abs(coherence_secondhalf_false_temp$frequency - heartrate_hz)) if (length(closest_index) == 0) { next # Skip to the next iteration if closest_index is empty } closest_frequency <- coherence_secondhalf_false_temp$frequency[closest_index] coherence <- coherence_secondhalf_false_temp$coherence[closest_index] secondhalf_false_coh_temp <- cbind.data.frame(heartrate_hz, closest_index, closest_frequency, coherence, ID) secondhalf_false_coh <- rbind(secondhalf_false_coh, secondhalf_false_coh_temp) } # First we merge the dataframes for plotting & modeling firsthalf_real_coh <- mutate(firsthalf_real_coh, half = "first", pair_type = "real") firsthalf_false_coh <- mutate(firsthalf_false_coh, half = "first", pair_type = "false") secondhalf_real_coh <- mutate(secondhalf_real_coh, half = "second", pair_type = "real") secondhalf_false_coh <- mutate(secondhalf_false_coh, half = "second", pair_type = "false") firstsecondhalf_coherence <- rbind(firsthalf_real_coh, firsthalf_false_coh, secondhalf_real_coh, secondhalf_false_coh) # Add participant column firstsecondhalf_coherence$participant <- sub("_(.*)", "", firstsecondhalf_coherence$ID) # Reorder factor levels firstsecondhalf_coherence$half <- factor(firstsecondhalf_coherence$half, levels = c('first', 'second')) firstsecondhalf_coherence$pair_type <- factor(firstsecondhalf_coherence$pair_type, levels = c('false', 'real')) ``` Having computed the coherence values, we plotted (see Fig. \@ref(fig:coherencefirstsecondhalfplot)) and modeled the differences between the first and second half of the vocalization, as illustrated in the Figure below. Comparison of the boxplot revealed that the coherence values were higher for real pairs than for false pairs, as shown earlier. However, we did not find significant differences between the first and the second half of the vocalization. ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code creating the boxplot", message = FALSE} # Define bright contrasting colors color_first <- "#FF6B35" # Bright orange color_second <- "#004E89" # Deep blue color_real <- "#E63946" # Bright red color_false <- "#06FFA5" # Bright cyan # Original spectral plots coherence_halves_plot_real <- halves_coherence %>% dplyr::filter(frequency <= 3) %>% dplyr::filter(pair_type == "real") %>% ggplot(aes(x=frequency)) + geom_path(aes(y=coherence, group = pptrialhalftype, color = half)) + theme_cowplot(12) + theme(legend.position = "bottom") + facet_wrap(~pptrial) + ylim(0, 1) + geom_vline(data = heartrateline, aes(xintercept = heartrate)) + scale_colour_manual(values = c("first" = color_first, "second" = color_second)) coherence_halves_plot_false <- halves_coherence %>% dplyr::filter(frequency <= 3) %>% dplyr::filter(pair_type == "false") %>% ggplot(aes(x=frequency)) + geom_path(aes(y=coherence, group = pptrialhalftype, color = half)) + theme_cowplot(12) + theme(legend.position = "bottom") + facet_wrap(~pptrial) + ylim(0, 1) + geom_vline(data = heartrateline, aes(xintercept = heartrate)) + scale_colour_manual(values = c("first" = color_first, "second" = color_second)) # Add participant column to firstsecondhalf_coherence if not present firstsecondhalf_coherence$participant <- sub("_(.*)", "", firstsecondhalf_coherence$ID) # Per trial boxplot (original) A_halves <- ggplot(firstsecondhalf_coherence, aes(x = half, y = coherence, color = half)) + geom_boxplot(size = 1) + geom_quasirandom() + ylab('Coherence value') + xlab('Half') + scale_colour_manual(values = c("first" = color_first, "second" = color_second)) + theme_cowplot() + facet_wrap(~pair_type) + theme(legend.position = "none") # Per participant means with connected lines firstsecondhalf_coherence_means <- firstsecondhalf_coherence %>% group_by(participant, half, pair_type) %>% summarise(coherence_mean = mean(coherence, na.rm = TRUE), .groups = 'drop') B_halves <- ggplot(firstsecondhalf_coherence_means, aes(x = half, y = coherence_mean, group = participant)) + geom_line(color = "gray60", alpha = 0.6) + geom_point(aes(color = half), size = 3, alpha = 0.8) + ylab('Mean coherence value') + xlab('Half') + scale_colour_manual(values = c("first" = color_first, "second" = color_second)) + theme_cowplot() + facet_wrap(~pair_type) + theme(legend.position = "none") ``` ```{r coherencefirstsecondhalfplot, echo=FALSE, message = FALSE, fig.cap = "Box plot showing the coherence values for first and second half pairs. The plot is also facetted by real and false pairs.", fig.height = 3} # Combined plot plot_grid(A_halves, B_halves, labels = c('A', 'B'), ncol = 2) ``` This was statistically confirmed by our mixed linear regression analyses with participant as random intercept. Whereas the inclusion of pairing type (real pairs vs false pairs) and half (first half vs second half) as main effects improved the model fit, the inclusion of a pairing type x half interaction did not do so. All model coefficients are shown in the tables below. ```{r descriptives_halves, warning = FALSE, echo = TRUE, code_folding = "Show code creating descriptive statistics for halves", message = FALSE} # Create descriptive statistics table descriptives_halves <- firstsecondhalf_coherence %>% group_by(half, pair_type) %>% summarise( n = n(), Mean = mean(coherence, na.rm = TRUE), SD = sd(coherence, na.rm = TRUE), SE = SD / sqrt(n), CI_lower = Mean - qt(0.975, n-1) * SE, CI_upper = Mean + qt(0.975, n-1) * SE, .groups = 'drop' ) %>% mutate( `95% CI` = paste0("[", round(CI_lower, 3), ", ", round(CI_upper, 3), "]") ) %>% select(pair_type, half, n, Mean, SD, `95% CI`) %>% mutate( Mean = round(Mean, 3), SD = round(SD, 3) ) knitr::kable(descriptives_halves, caption = "Descriptive statistics: Coherence values by half and pair type.", col.names = c("Pair Type", "Half", "N", "Mean", "SD", "95% CI")) %>% kable_paper("hover", full_width = TRUE) ``` ```{r model_halves_coherence} # Model the data - test interaction model_halves_null <- lmer(coherence ~ 1 + (1|participant/ID), data = firstsecondhalf_coherence) model_halves_main <- lmer(coherence ~ half + pair_type + (1|participant/ID), data = firstsecondhalf_coherence) model_halves_interaction <- lmer(coherence ~ half * pair_type + (1|participant/ID), data = firstsecondhalf_coherence) # Compare models comparison_halves_main <- anova(model_halves_null, model_halves_main) comparison_halves_interaction <- anova(model_halves_main, model_halves_interaction) # Create comparison tables comparison_halves_main_table <- data.frame( Model = c("Null (Intercept only)", "Main effects (half + pair type)"), npar = comparison_halves_main$npar, AIC = round(comparison_halves_main$AIC, 2), BIC = round(comparison_halves_main$BIC, 2), logLik = round(comparison_halves_main$logLik, 2), deviance = round(comparison_halves_main$deviance, 2), Chisq = c(NA, round(comparison_halves_main$Chisq[2], 3)), Df = c(NA, comparison_halves_main$Df[2]), `Pr(>Chisq)` = c(NA, ifelse(comparison_halves_main$`Pr(>Chisq)`[2] < .001, "< .001", round(comparison_halves_main$`Pr(>Chisq)`[2], 3))) ) comparison_halves_interaction_table <- data.frame( Model = c("Main effects only", "Main effects + interaction"), npar = comparison_halves_interaction$npar, AIC = round(comparison_halves_interaction$AIC, 2), BIC = round(comparison_halves_interaction$BIC, 2), logLik = round(comparison_halves_interaction$logLik, 2), deviance = round(comparison_halves_interaction$deviance, 2), Chisq = c(NA, round(comparison_halves_interaction$Chisq[2], 3)), Df = c(NA, comparison_halves_interaction$Df[2]), `Pr(>Chisq)` = c(NA, ifelse(comparison_halves_interaction$`Pr(>Chisq)`[2] < .001, "< .001", round(comparison_halves_interaction$`Pr(>Chisq)`[2], 3))) ) # Model coefficients modelsummary_halves <- summary(model_halves_interaction)$coefficients colnames(modelsummary_halves) <- c('Estimate', 'SE', 'df', 't-value', 'p-value') rownames(modelsummary_halves) <- c('Intercept (first half, false pairs)', 'Second half', 'Real pairs', 'Second half × Real pairs') # Display tables knitr::kable(comparison_halves_main_table, caption = "Model comparison: Main effects of half and pair type on coherence.") %>% kable_paper("hover", full_width = TRUE) knitr::kable(comparison_halves_interaction_table, caption = "Model comparison: Interaction effect of half × pair type on coherence.") %>% kable_paper("hover", full_width = TRUE) knitr::kable(format(round(modelsummary_halves, digits = 3)), caption = "Model coefficients: Effects of half and pair type on coherence values.") %>% kable_paper("hover", full_width = TRUE) ``` # Exploratory analyses In this section, we performed a pair of exploratory analyses on our data without a-prior expectations. ## Is the strength of the heart-voice coupling related to heart rate? For this question, we first compute the heart rate from the EMG signal for each trial via Fast Fourier Transform (FFT) and convert it to the more usual beats per minute (bpm). Before the model is computed between heart rate and coherence for expiration noise and EMG signal, a plot (see Fig. \@ref(fig:correlationcoherenceheartrate)) visualizes their relationship. ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code relating coherence to heart rate", message = FALSE} #convert heartrate from Hz to bpm heartrate_coh <- heartrate_coh %>% mutate(heartrate_bpm = heartrate_hz * 60) #create participant column from ID heartrate_coh$participant <- sub("_(.*)", "", heartrate_coh$ID) #plot the relationship correlation_coherence_heartrate <- ggplot(heartrate_coh, aes(y = coherence, color = participant)) + geom_point(aes(x = heartrate_bpm), size = 3, alpha = 0.5) + geom_smooth(aes(x = heartrate_bpm), color = 'black', method = 'lm') + theme_bw() + ylab('Coherence value') + xlab('Heart rate per trial (in bpm)') + theme_cowplot() ``` ```{r correlationcoherenceheartrate, echo=FALSE, message = FALSE, fig.cap = "Plot showing the correlation between the heart rate by trial in bpm (on x-axis) and coherence values ranging from 0 to 1 (on y-axis). Color is used to show different participants.", fig.height = 4} plot_grid(correlation_coherence_heartrate) ``` We have used ID (combination of participant and trial) as a unique identifier for each trial as a random factor above. Here, this is not possible because we have less observations, so each ID only has 1 data point from heartrate or coherence respectively. Therefore, we will use participant as a random intercept. ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code relating coherence to heart rate", message = FALSE} #model the data, compare to null model model_coherence_heartrate_null <- lmer(coherence ~ 1 + (1|participant), data = heartrate_coh) model_coherence_heartrate <- lmer(coherence ~ heartrate_bpm + (1|participant), data = heartrate_coh) comparison_realfalse_coherence <- anova(model_coherence_heartrate_null,model_coherence_heartrate) #also save the model output in a dataframe modelsummary_coherence_heartrate <- summary(model_coherence_heartrate)$coefficients colnames(modelsummary_coherence_heartrate) <- c('Estimate', 'SE', 'df', 't-value', 'p-value') rownames(modelsummary_coherence_heartrate) <- c('Intercept', 'Effect of heartrate (in bpm)') ``` With a mixed linear regression we modeled the variation in coherence (using R-package lme4), with participant as random intercept (for more complex random slope models did not converge). A model with heart rate in bpm as predictor did not explain more variance than a base model predicting the overall mean, Change in Chi-Squared (`r printnum(round(comparison_realfalse_coherence[2,1]-comparison_realfalse_coherence[1,1]))`) = `r printnum(comparison_realfalse_coherence$Chisq[2])`, *p* `r printnum(ifelse(comparison_realfalse_coherence[2,8] > .001, paste('=', round(comparison_realfalse_coherence[2,8], digits =5)), '< .001'))`. Model coefficients are shown in Table S\@ref(tab:modelcoherencerebyheartrate). We do not find an effect for heart rate on coherence values. ```{r modelcoherencerebyheartrate, echo=FALSE} knitr::kable(format(round(modelsummary_coherence_heartrate, digits = 3)), caption = "Effects of heartrate on coherence values.") %>% kable_paper("hover", full_width = T) ``` ## Does the onset of expiration noise coincide with a heart beat? To address this question, we used a less constrained version of the data used above. For the amplitude envelope detrending to work properly, we had to remove sections of silence in the beginning and the end (before onset and after offset of vocalization) and thus opted for using only vocalization from 1000 to 6000 ms. As we were interested in the onset of expiration here, we had to include any time from 0 ms, i.e. right from when the cue to expire was given. Using the velocity of the envelope, we had calculated the onset of expiration above. Measured in relation to the expire cue (at 0 ms), the median value of it is `r printnum(median(tr_wd_nomov$highest_veloc_peak_time), digits = 1)` ms with a standard deviation of `r printnum(sd(tr_wd_nomov$highest_veloc_peak_time), digits = 1)` ms. We then located the closest peak in the EMG signal. For this, we first located all the peaks in the EMG signal via pracma::findpeaks(), using a minimum distance between peaks of 0.7 times the duration of one heart cycle (which we derived from the heart rate, that we have from FFTs; e.g. if heart rate is 60 bpm or 1 Hz, duration would be 1 s) and a minimum peak height of 0, as we scaled the signals by trials. We then located the peak closest to the velocity peak, as well as computed the distance between the two. ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code for testing the relation between expiration noise and heartbeat", message = FALSE} #prepare data in tsl_fulltime tsl_fulltime <- tsl_fulltime %>% mutate(pptrial = stringr::str_replace(uniquetrial, "(\\d+)_+(\\d+)", "\\2_\\1")) #transform heartrate from Hz to cycle length in s; we'll use that to determine minimum distance between peaks tr_wd_nomov <- tr_wd_nomov %>% mutate(heartrate_EMG_duration = 1 / heartrate_EMG_hz) #since we're using tsl_fulltime here, we also have to modify it, so that it uses the correct EMG signal tsl_fulltime <- tsl_fulltime %>% mutate(EMG = ifelse(pp == 9, rectus_abdominis, pectoralis_major)) #set up loop for finding EMG peaks and then identifying the one closest to velocity peak pectoralis_peaks_temp <- data.frame() pectoralis_peaks <- data.frame() for(ID in tr_wd_nomov$pptrial) { heartrate_duration <- tr_wd_nomov$heartrate_EMG_duration[tr_wd_nomov$pptrial==ID] #Note for Wim: for this, we can also use the mean distance between peaks, either via pectoralis_peaks$index (then you directly have index) or pectoralis_peaks$time if(length(which(tsl_fulltime$pptrial == ID))==0) {next} index_duration <- 0.0004 #temporal distance between rows is 0.0004 s, as sampling rate is 2500 Hz heartrate_duration_indices <- heartrate_duration / index_duration tsl_fulltime_temp <- tsl_fulltime %>% dplyr::filter(pptrial == ID) #find peaks: we use 0.7 * duration of one heart cycle; also minpeakheight is set to 0 if(is.na(heartrate_duration_indices)){next} pectoralis_peaks_temp <- data.frame(pracma::findpeaks(tsl_fulltime_temp$EMG, minpeakdistance = heartrate_duration_indices * 0.7, minpeakheight = 0)) pectoralis_peaks_temp <- pectoralis_peaks_temp %>% dplyr::rename(height = X1, index = X2, onset = X3, end = X4) %>% dplyr:: arrange(index) pectoralis_peaks_temp <- pectoralis_peaks_temp %>% mutate(time = index * index_duration) pectoralis_peaks_temp$velocity_peak <- tr_wd_nomov %>% dplyr::filter(pptrial == ID) %>% pull(highest_veloc_peak_time) / 1000 #use vocalization onset; computed above via peak velocity of amplitude envelope of vocalization tr_wd_nomov$closest_EMG_peak_fft[tr_wd_nomov$pptrial==ID] <- pectoralis_peaks_temp$time[which.min(abs(pectoralis_peaks_temp$time - pectoralis_peaks_temp$velocity_peak))] * 1000 pectoralis_peaks_temp$pptrial <- ID pectoralis_peaks <- rbind(pectoralis_peaks, pectoralis_peaks_temp) } tr_wd_nomov <- tr_wd_nomov %>% mutate(ampEMG_peakdistance = closest_EMG_peak_fft - highest_veloc_peak_time) ### now also get the distance for false pairs #we already have envelope velocity peaks for each trial in pectoralis_peaks$velocity_peak #we also already have all the peaks for the EMG signals stored there #all we have to do is use the shuffling to assign the false pair velocity peaks #add pptrial_shuffled to tsl_fulltime shuffleddf <- tr_wd_nomov %>% select(c(pptrial, pptrial_shuffled)) tsl_fulltime_merged <- merge(tsl_fulltime, shuffleddf, by = "pptrial", all.x = TRUE) # INITIALIZE COLUMNS BEFORE THE LOOP tr_wd_nomov$heartrate_EMG_duration_shuffled <- NA tr_wd_nomov$closest_EMG_peak_fft_shuffled <- NA #set up loop for finding EMG peaks and then identifying the one closest to velocity peak pectoralis_peaks_shuffled_temp <- data.frame() pectoralis_peaks_shuffled <- data.frame() for(shuffleID in tr_wd_nomov$pptrial_shuffled) { #get the corresponding ID from pptrial ID <- tr_wd_nomov$pptrial[tr_wd_nomov$pptrial_shuffled == shuffleID] #pick the heart rate_duration from the randomly assigned EMG signal heartrate_duration <- tr_wd_nomov$heartrate_EMG_duration[tr_wd_nomov$pptrial==shuffleID] # CHECK THIS FIRST before using it if(is.na(heartrate_duration)) {next} tr_wd_nomov$heartrate_EMG_duration_shuffled[tr_wd_nomov$pptrial_shuffled==shuffleID] <- heartrate_duration index_duration <- 0.0004 #temporal distance between rows is 0.0004 s, as sampling rate is 2500 Hz heartrate_duration_indices <- heartrate_duration / index_duration if(is.na(heartrate_duration_indices)){next} tsl_fulltime_temp <- tsl_fulltime_merged %>% dplyr::filter(pptrial == shuffleID) #find peaks: we use 0.7 * duration of one heart cycle; also minpeakheight is set to 0 pectoralis_peaks_shuffled_temp <- data.frame(pracma::findpeaks(tsl_fulltime_temp$EMG, minpeakdistance = heartrate_duration_indices * 0.7, minpeakheight = 0)) pectoralis_peaks_shuffled_temp <- pectoralis_peaks_shuffled_temp %>% dplyr::rename(height = X1, index = X2, onset = X3, end = X4) %>% dplyr::arrange(index) pectoralis_peaks_shuffled_temp <- pectoralis_peaks_shuffled_temp %>% mutate(time = index * index_duration) pectoralis_peaks_shuffled_temp$velocity_peak <- tr_wd_nomov %>% dplyr::filter(pptrial_shuffled == shuffleID) %>% pull(highest_veloc_peak_time) / 1000 #use vocalization onset; computed above via peak velocity of amplitude envelope of vocalization ind <- which.min(abs(pectoralis_peaks_shuffled_temp$time - pectoralis_peaks_shuffled_temp$velocity_peak)) if(length(ind) == 0) {next} tr_wd_nomov$closest_EMG_peak_fft_shuffled[tr_wd_nomov$pptrial_shuffled==shuffleID] <- pectoralis_peaks_shuffled_temp$time[ind] * 1000 pectoralis_peaks_shuffled_temp$pptrial_shuffled <- shuffleID pectoralis_peaks_shuffled <- rbind(pectoralis_peaks_shuffled, pectoralis_peaks_shuffled_temp) } #finally, compute the distance between the randomly assigned closest EMG peak and the highest velocity peak time tr_wd_nomov <- tr_wd_nomov %>% mutate(ampEMG_peakdistance_shuffled = closest_EMG_peak_fft_shuffled - highest_veloc_peak_time) ``` We found the median value of the distance between velocity peak and the closest peak in the EMG signal to be `r printnum(median(tr_wd_nomov$ampEMG_peakdistance))` ms, with a standard deviation of `r printnum(sd(tr_wd_nomov$ampEMG_peakdistance))` ms. We computed that by subtracting the timing of the onset of vocalization from the timing of the closest EMG peak/heart beat. This way, positive values in the distance could be interpreted as the closes heart beat occuring later than the onset of vocalization. But first, we visualized the peaks to see if they are sensible. ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code for visualizing the peaks", message = FALSE} pectoralis_peaks <- pectoralis_peaks %>% mutate(time_ms = round(time * 1000)) allpectoralis_peaks <- ggplot() + geom_path(data = tsl_fulltime, aes(x=time_ms, y=EMG, color='pectoralis major')) + geom_point(data = pectoralis_peaks, aes(y = height, x = time_ms), color = "black", size = 0.5) + geom_text(data = tr_wd_nomov, aes(label = paste0(round(heartrate_EMG_hz, 2), " Hz"), x = 3500, y = 10), size = 3) + geom_vline(data = tr_wd_nomov, aes(xintercept = highest_veloc_peak_time), linetype = 2) + #add line about velocity peaks #geom_vline(data = tr_wd_nomov, aes(xintercept = highest_veloc_peak_time_false), color = "red") + scale_color_manual(values = colors_mus) + scale_y_continuous(name = "Pectoralis major", limits = c(-5, 47)) + #,limits = c(-3, 3) #scale_x_continuous(limits = c(0, 2000)) + #theme(legend.position = c(0.8, 1)) + geom_hline(yintercept= 0) + #xlim(0, 7000) + xlab('time (ms)') + theme_cowplot(12) + background_grid() + theme(legend.position = "none", axis.text.x = element_text(angle = 90, vjust = 0.5, hjust=1)) + facet_wrap(~pptrial) ``` ```{r pectoralispeaks, echo=FALSE, message = FALSE, fig.cap = "Plot showing the pectoralis major EMG signal with the automatically detected peaks overlaid as dots. The dashed line indicates the onset of vocalization for that particular trial.", fig.height = 20, fig.width = 10} plot_grid(allpectoralis_peaks) ``` Next, we normalized the distance by the respective duration of one heart cycle and thus transformed it to degrees. We then plotted the density of the respective degrees into a straight plot (see Fig. \@ref(fig:degreesflat)) where we include both negative and positive values. We also show the density distribution in a circular plot, where the values are absolutized (see Fig. \@ref(fig:degreescircle)). ```{r, warning = FALSE, echo = TRUE, code_folding = "Show code for transforming the distance into phase", message = FALSE} tr_wd_nomov <- tr_wd_nomov %>% mutate(heartrate_EMG_duration_ms = heartrate_EMG_duration * 1000) tr_wd_nomov <- tr_wd_nomov %>% mutate(heartrate_EMG_duration_shuffled_ms = heartrate_EMG_duration_shuffled * 1000) #for this, we use the formula from https://osf.io/sncx5 for relative phase analysis tr_wd_nomov <- tr_wd_nomov %>% mutate(phase = (2 * pi * ampEMG_peakdistance) / heartrate_EMG_duration_ms) #calculate relphase #data$relphase <- (((2*pi)*data$D/data$IBI)*180)/pi tr_wd_nomov <- tr_wd_nomov %>% mutate(degree = (((2 * pi) * ampEMG_peakdistance / heartrate_EMG_duration_ms) * 180) / pi) tr_wd_nomov <- tr_wd_nomov %>% mutate(degree_false = (((2 * pi) * ampEMG_peakdistance_shuffled / heartrate_EMG_duration_shuffled_ms) * 180) / pi) #create new dataframe for plotting tr_wd_nomov_degrees <- reshape2::melt(tr_wd_nomov, measure.vars = c("degree", "degree_false")) tr_wd_nomov_degrees$variable <- factor(tr_wd_nomov_degrees$variable, levels = c("degree_false", "degree"), labels = c("real pairs", "false pairs")) #also plot it straight, but including negative values density_degrees <- tr_wd_nomov_degrees %>% ggplot(aes(x=value)) + geom_density(aes(color = variable, fill = variable), size = 1.5, alpha = 0.5) + # geom_density(aes(x=degree), color="blue", size = 2.5, fill="blue", alpha = 0.4) + # geom_density(aes(x=degree_false), color="red", size = 2.5, fill="red", alpha = 0.4) + theme_cowplot(12) + ylab("Density") + xlab("Degrees") + scale_x_continuous(breaks=c(-360, -270, -180, -90, 0, 90, 180, 270, 360)) + geom_vline(aes(xintercept = -360), linetype = 2) + geom_vline(aes(xintercept = -270), linetype = 2) + geom_vline(aes(xintercept = -180), linetype = 2) + geom_vline(aes(xintercept = -90), linetype = 2) + geom_vline(aes(xintercept = 0), linetype = 1, size = 1) + geom_vline(aes(xintercept = 90), linetype = 2) + geom_vline(aes(xintercept = 180), linetype = 2) + geom_vline(aes(xintercept = 270), linetype = 2) + geom_vline(aes(xintercept = 360), linetype = 2) + scale_colour_brewer(palette = "Set1")+ theme(legend.position = "bottom", legend.box = "horizontal", legend.justification = "center", legend.title = element_blank()) ``` ```{r degreesflat, echo=FALSE, message = FALSE, fig.cap = "Density plot showing the distance distance between velocity peak and the nearest EMG peak. Distance was transformed to degrees. The solid black line indicates the velocity peak as a reference point. Blue is for real pairs and red for false pairs. The plot includes both negative (i.e. closest heart beat occurring before onset of vocalization) and positive values (i.e. closest heart beat occurring after onset of vocalization)", fig.height = 4} plot_grid(density_degrees) ```
